| Categories | BMW Big Brake Kit |
|---|---|
| Brand Name: | TEI-RACING |
| Model Number: | P60ES |
| Certification: | China National Inspection Agency |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram and so on |
| Supply Ability: | 10000 sets per month |
| Delivery Time: | 10-15 DAYS |
| Packaging Details: | Package: 1.Each part is wrapped by EPE foam inside, carton box outside ; 2.Wooden frame is available as required3.Box size:42x42x42cm |

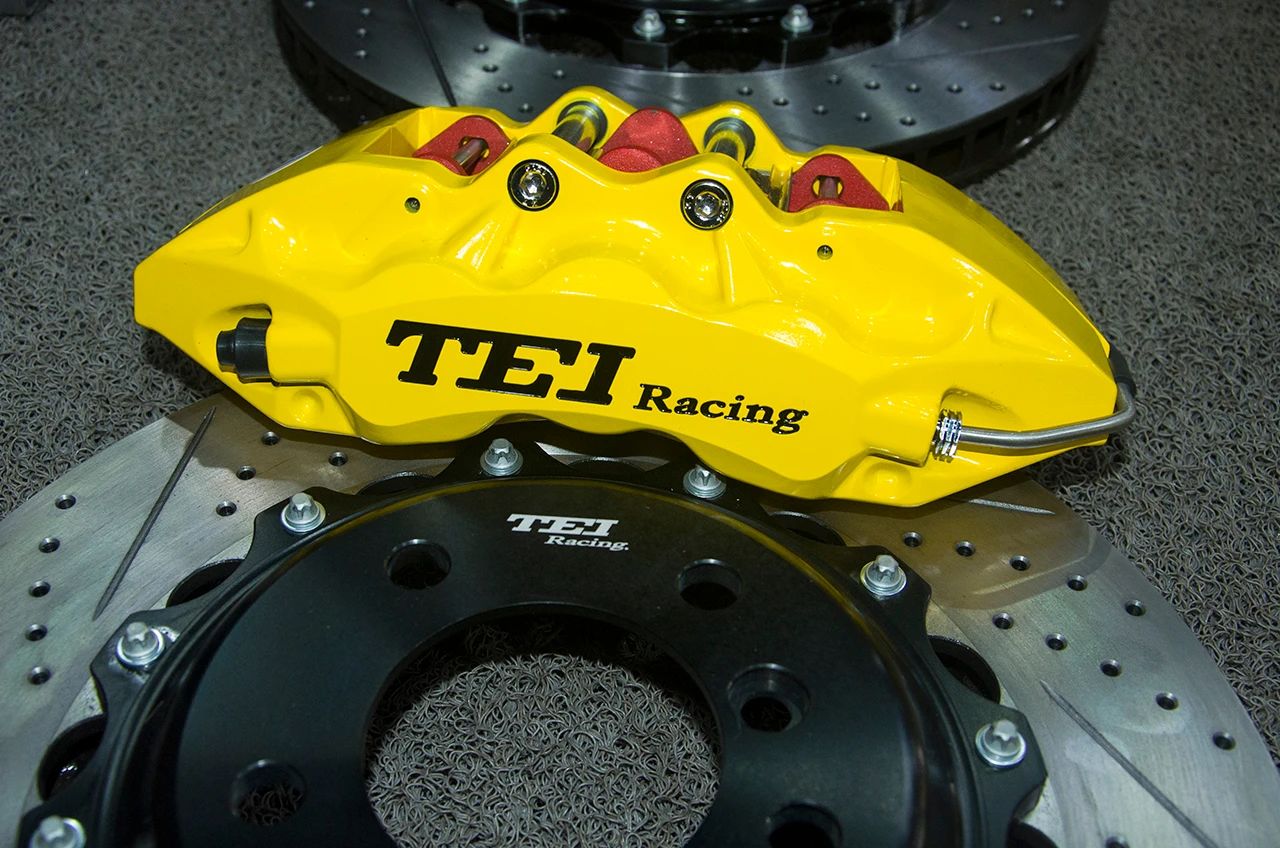

| Caliper Model: | P60S |
| Caliper Material: | 6061 Aluminum alloy |
| Rotor Material: | High carbon alloy |
| Package Weight: | 35 kg |
| Shipment Way: | Express.air or sea |
| Payment Way: | Bank Transfer,Western Union or Paypel |
| Company Info. |
| Guangzhou Xiebin Import&Export Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

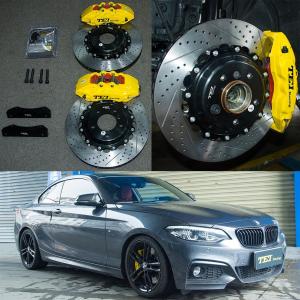

High Performance BBK For BMW 2 Series F22 18 Inch Car Rim Front 6 piston caliper brake kit to fit auto brake system
BMW 2 SERIES F22
It can be installed our front and rear brake kit
Minimum Rear Rotor Size is 330 mm
Normal handbrake
Original front wheel need to add 3 mm spcaers if install our front
brake kit
(You also can provide your car wheel ET value and we check whether need to add the spacers)
Orginal Brake Rotor Information
Front:

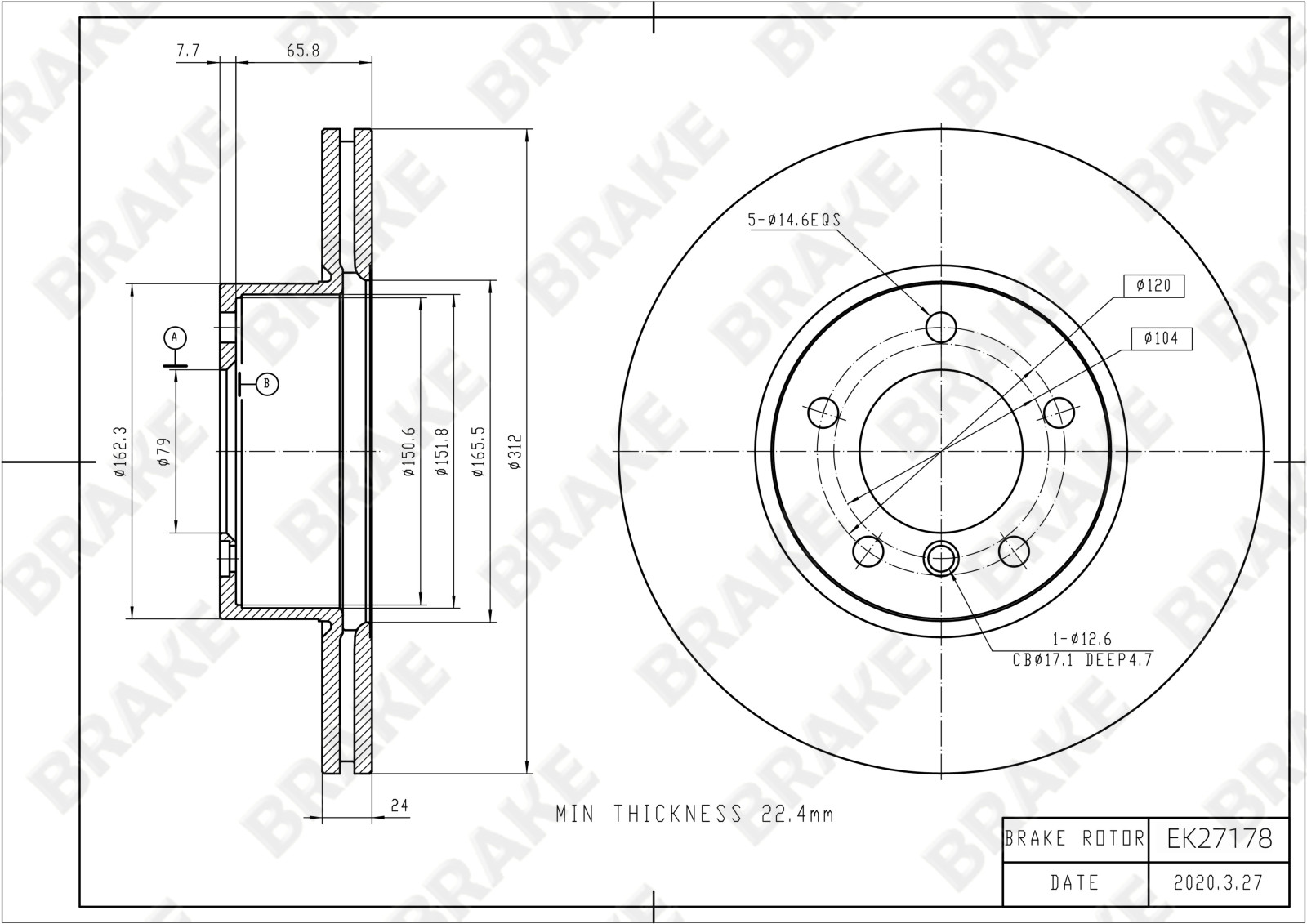

| Front Original Rotor Information | |
| Brake Rotor model | 21139 or 27178 |
| Rotor Diameter | 312 mm |
| Rotor Hat Diameter | 120 mm |
| Central Hole Diameter | 79 mm |
| Disc Thickness | 24 mm |
| Minimum Disc Thickness | 22.4 mm |
| Total Height | 73.5 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |

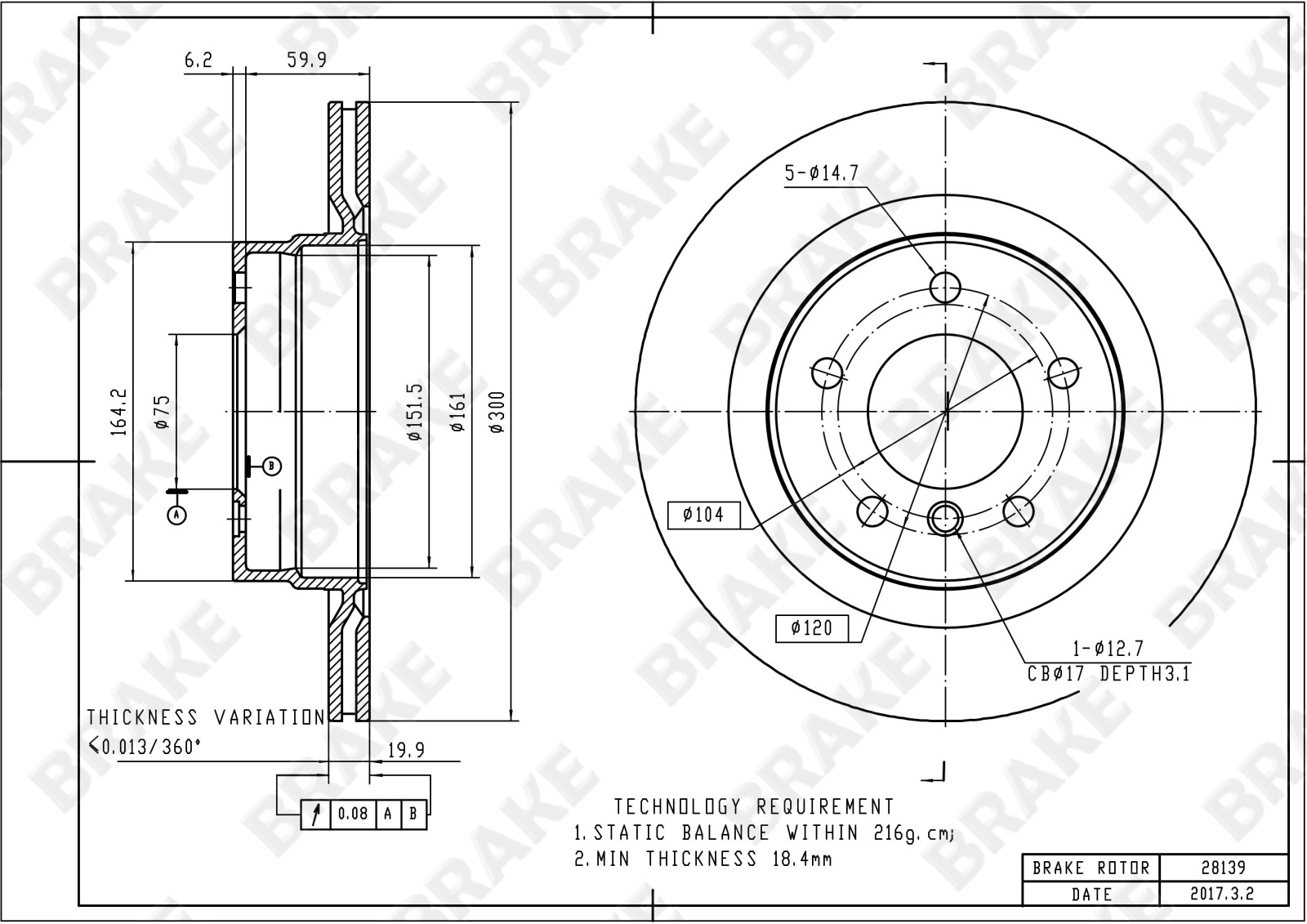

| Rear Original Rotor Information | |
| Brake Rotor model | 28139 |
| Rotor Diameter | 300 mm |
| Rotor Hat Diameter | 120 mm |
| Central Hole Diameter | 75 mm |
| Disc Thickness | 20 mm |
| Minimum Disc Thickness | 18.4 mm |
| Total Height | 66 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |

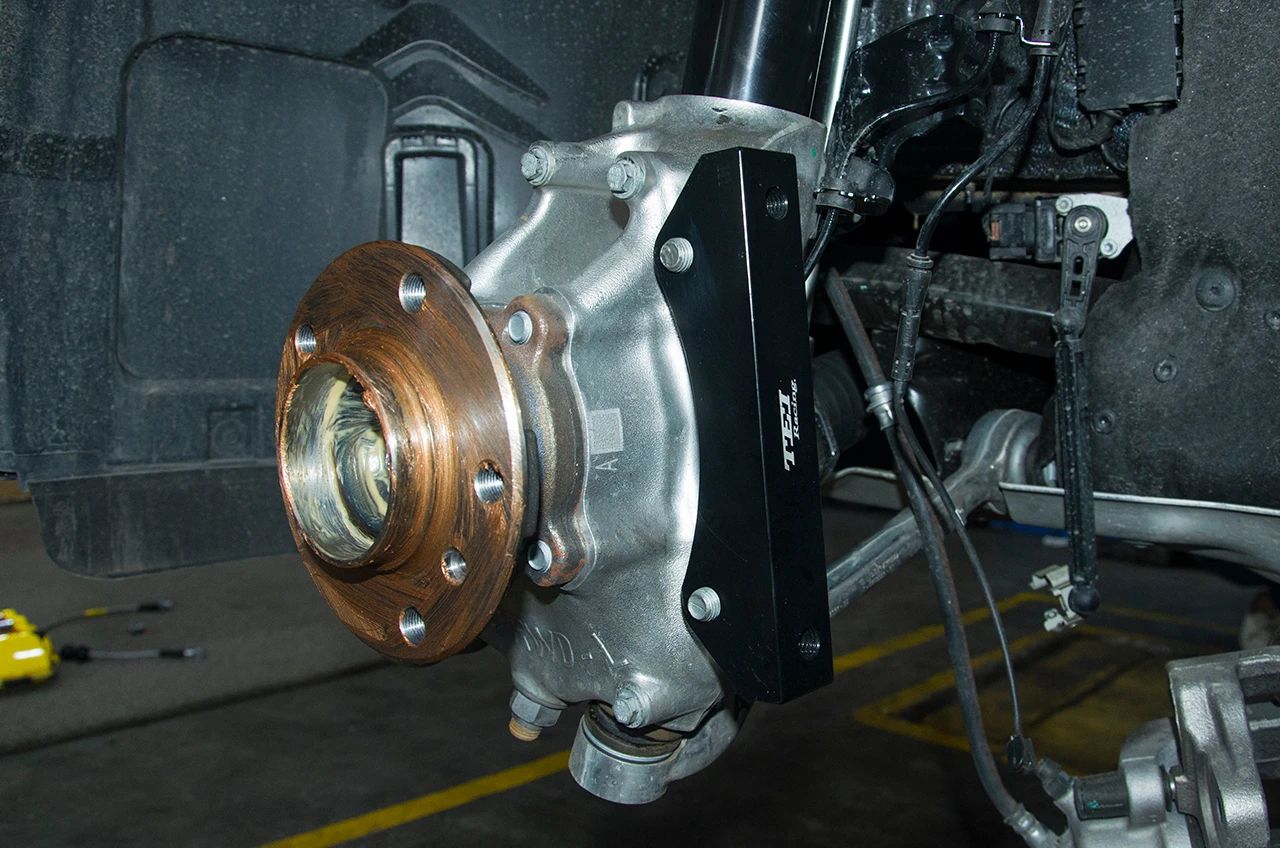

Installation Case
| Installation Case Brake Kit Information | ||
| Car Model | BMW 2 SERIES F22 | |
| Front | Rear | |
| TEI Caliper Model | P60S | / |
| Caliper Color | Red | / |
| Rotor Size | 355X32 MM | / |
| Rotor Style | DRILLED AND SLOTTED | / |
| Bolt Type | FIXED | / |
| Brake Pad Type | SPPA | / |
Noted:1.You can click the caliper model to check the products
information.For example,You can click P60S to check the P60S brake kit information. 3.P60S caliper is upgraded to P60ES | ||
|
