Geotextile Warp Knitting Machine 3bars Green Shade Net Manufacturing Machine

Categories	Warp Knitting Machine
Place of Origin:	Jiangsu, China
Brand Name:	ZYTT
Packaging Details:	Wrapped with plastic film and packed in wooden cases
Supply Ability:	100 Set/Sets per Month
Price:	$380,000.00/sets 1-4 sets
Certification:	CE
MOQ:	1 set
Delivery Time:	30 days
Applicable Industries:	Manufacturing Plant, Printing Shops
Condition:	New
Product Type:	Geotextile, Geotextile
Type:	warp knitting machine
Production Capacity:	high speed
Power:	35000 W
Knitting Style:	Warp
Knitting Method:	Single
Computerized:	Yes
Weight:	15000 KG
Warranty:	1 Year
Key Selling Points:	High-accuracy
Gauge:	10GG, E10
Knitting width:	245inch 62000mm
Machinery Test Report:	Provided
Video outgoing-inspection:	Provided
Marketing Type:	New Product 2021
Warranty of core components:	1 Year
Core Components:	Motor, PLC
Keywords:	warp Kintting Machine
Application:	Geotextile making
Speed:	1000rpm
POWER:	35KVA
Local Service Location:	India
Bars:	3
Color:	white
Port:	shanghai

Contact Now

Add to Cart

Company Info.

Wuxi Zhongyin Textile Tech. Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Geotextile Warp Knitting Machine 3bars Green Shade Net Manufacturing Machine

Geotextile warp knitting machine 3bars

Brief introduction

Needle type: pointed composite needle with needle core Needle bed: integral embedded, single replacement Stripper plate: needle block type Needle core: needle block type Settlement: needle block type Comb bar: 2 ground combs (GB1 and GB2), 1 warp lining comb (warp lining sheet); Let off: two sets of pan head let off, which can drive the pan head with a maximum diameter of 32 inches, and one set of yarn feeding roller let off, which is composed of two rollers coated with blue polished deep layer on the surface of 200x25mm precision steel pipe. The driving motor and reducer are equipped with reinforced type as standard; Traction: main traction and auxiliary traction, with reinforced drive motor and reducer as standard; Weft insertion system: the weft insertion system with horizontal reversal function is synchronously completed by 7 servo motors, and the weft insertion and weft laying mechanism is configured with 36 weft;

Machine Specification & Advantages

Needle type			pointed composite needle with needle core
Gauge			E10
Number of bars			3 bars
Working width			62000mm
Max speed			1000rpm
Power of Main Motor			35KVA

Advantage 1

Weft cutting: diamond wheel cutting machine, located on the left and right side of the machine respectively, is used to cut weft;

Weft waste recycling: a recycling system composed of negative pressure vacuum suction nozzle and pipeline;

Weft frame yarn: weft frame with spare yarn, which is used for high-strength polyester. The spare yarn and working yarn can be connected end to end without stopping for yarn change. It is equipped with 36 tensioners (30-230cn), and each yarn outlet is equipped with yarn breaking detection device;

Advantage 2

Frame: independent pan head (2 sets of 32 inch pan heads) and warp feeding leno frame, with safety guardrail, operation platform and 2 ladders; Yarn breakage detection: equipped with 2 sets of weft detection devices, 1 set on the left and right sides of the machine; Equipped with 2 sets of laser blowing yarn breaking detection devices for GB1 and GB2, for early detection of yarn breaking;

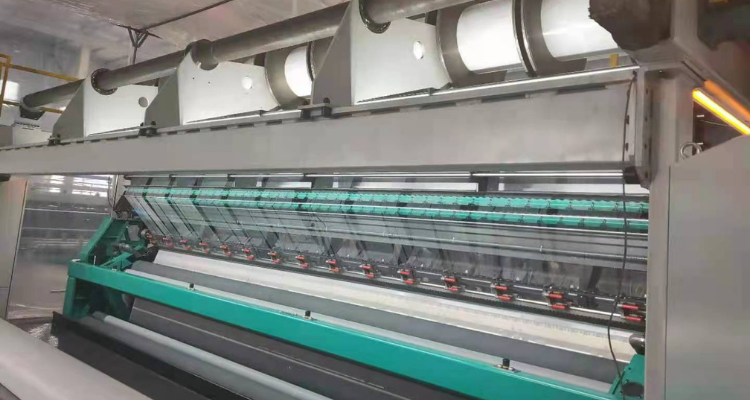

Machine Display

Machine Application
