IACS Approved Marine Steam Heating Stainless Steel Hot Water Tank

Categories Water Treatment Equipment
Brand Name: GH
Model Number: Steam Marine Hot Water Tank
Certification: CCS, LR, BV, ABS etc
Place of Origin: CHINA
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 300 Sets Per Month
Delivery Time: 5-20 Days
Packaging Details: Plywood Box
Material: Stainless Steel
Heating Power: 6-36kW
Capacity: 120L-1500L
Working Pressure: 0.4Mpa
Output Water Temp.: 65 Degree
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

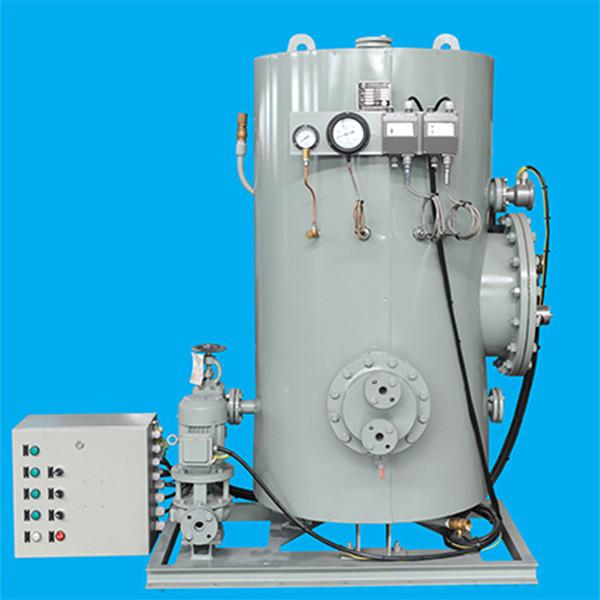

IACS Approved Marine Steam Heating Stainless Steel Hot Water Tank

The hot water tank is suitable for heating fresh water on the ship or platform, heated fresh water for crew use.

The hot water tank can be combined to use with fresh water pressure tank on board, that is to use fresh water in fresh water pressure tank to replenish this tank, and then heated by electric for usage of entire vessel.

Temperature controller: The water temperature in tank is controlled by two WTZK-50-C pressure type temperature controllers; If the water temperature in tank is lower than 50℃, the power will be on automatically and the electric heater will begin to heat; If the water temperature in tank is higher than 65℃, the power will be off automatically and the electric heater will stop heating.

TypeZDR-
0.120.20.30.51.01.5
Capacity(m3)0.120.20.30.51.01.5
Working Pressure(MPa)0.4
Design Pressure(MPa)0.45
Steam Pressure(MPa)0.3
Water Inlet Temp.(℃)15
Water Outlet Temp.(℃)65
Steam consumption(kg/h)27.54575120325325
Steam Hot-water Capacity(kg/h)275450750120032503259
Steam Hot-water area(m2)0.240.380.612.63.5
Electric heating water Capacity(kg/h)90140180280360540
Electric-heating power(Kw)6912182436
SourceAC 380V.50Hz.three phase , AC 440V.60Hz.three phase

Cheap IACS Approved Marine Steam Heating Stainless Steel Hot Water Tank for sale
