Brand Name: | Anan |
Model Number: | PVC |
Certification: | Reach,Rohs,UL |
Place of Origin: | China |
MOQ: | 1ton |
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 900 tons per month |
Delivery Time: | 1-2 weeks |
Packaging Details: | 900kg per jumbo bag or 25kgs per little bag |
Color: | Customized |
Product name: | Friendly Price Pvc Compound For Wire and Cable |
Usage: | Electronic Wire,Plug,Cable |
Appearance: | smooth,Granule,granules/pellet |
Sample time: | 3-5 days |
Operation: | Extrusion /Injection Process |
Density: | 1.4g/cm3~1.6g/cm3 |
Hardness: | 86A-90A |
Company Info. |
Jiangxi Longtai New Material Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |
Fire Retardant PVC Pellets Cable Wire Insulation Compound Density 1.5G/CM3
Product Introduction:
PVC based plasticizers have considerable mechanical strength and water resistance, high thermal resistance to low temperatures, good insulation properties, insoluble in gasoline and kerosene, abrasion, acid and alkali resistant. PVC based compounds are readily welded and glued.
Cable PVC compounds are use in the cable and conductor industry for manufacture of insulation and protective wire and cable sheaths. The main final consumers of the PVC based cable and conductor products are energy and construction industries.
Product Name:
Technical Data:
Items | Unit | Typical Value | Testing Method | ||
70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
Elongation at Break | % | 180 | 180 | 180 | |
Heat Aging | |||||
Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
Testing Time | h | 168 | 168 | 168 | |
Variation at tensile strength | % | 20 | 20 | 20 | |
Variation at elongation | % | -15 | -15 | -15 | |
Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

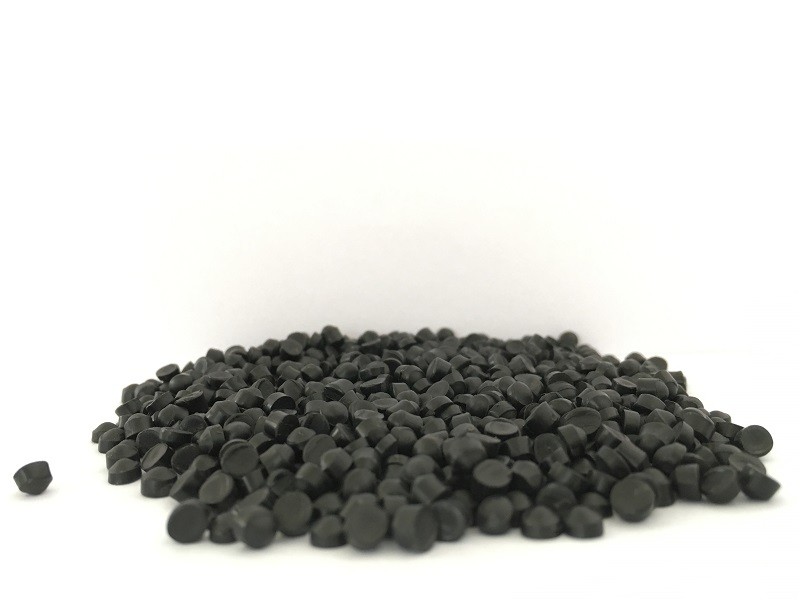

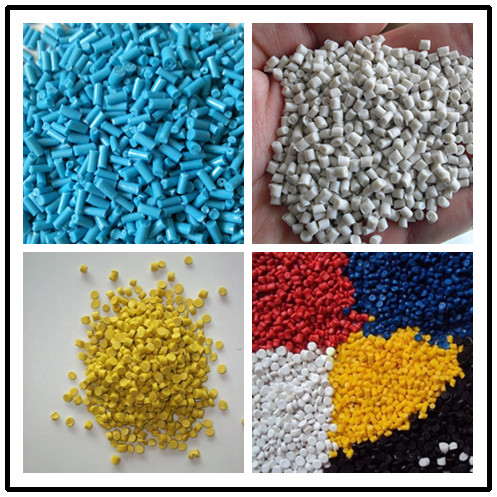

Product Show:
![]() |
