All In One Touch Screen PC 15 Inch Panel PC PCAP Resitive For Warehouse Logistics

Categories Touch Panel PC
Brand Name: ITD/OEM
Model Number: ITD15PPCT5xxxx
Certification: CE, FCC, RoHS
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T, PayPal(173515844@qq.com)
Supply Ability: 10000PCS/Month
Delivery Time: 15 Business Days
Packaging Details: 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Native resolution: 1024×768
Brightness: 1000nits, 350nits, 1500nits optional
Processor: Intel J1900, Intel J4125, Intel i3/i5/i7
touch panel: multi touch screen PCAP, resitive
IP65: NEMA4 IP65 Front rated
I/O: USB, RS232/422/485, HDMI, Audio, Dual LAN, DC 9-36V
Operating Temperature: -20~60℃, 20~70℃ optional
MTBF: 50000hours
Mounting: Panel Mount, VESA Mounting
OS: Windows 10 IoT, Linux
Application: automation, Warehouse&Logistics
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

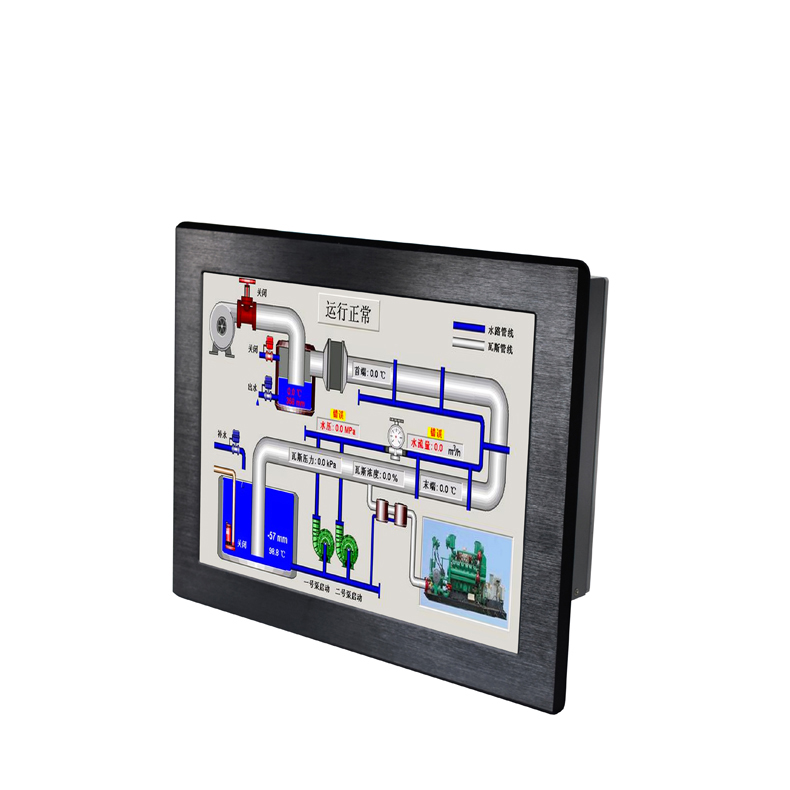

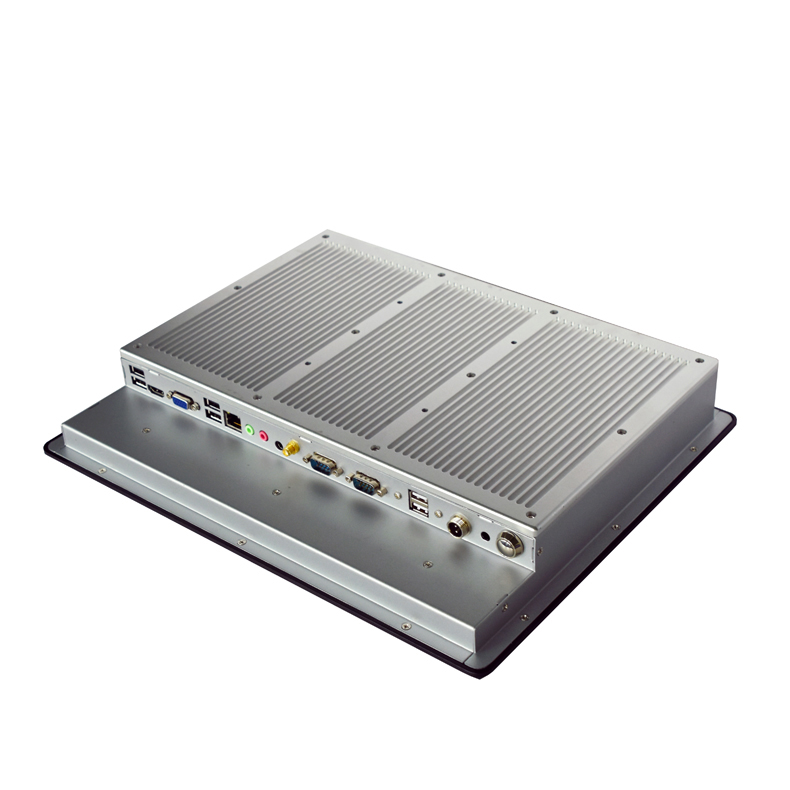

All In One Touch Screen PC 15 Inch Panel PC PCAP Resitive For Warehouse Logistics

15 panel pc multi touch screen Linux industrial AIO computer for Warehouse Logistics


APPLICATIONS

  • Automation
  • Food&Hygienic Industrial
  • Warehouse&Logistics
  • Healthcare
  • Heavy Duty
  • Robots Controller
  • Energy&Utilities
  • Marine
  • Metals and Mining
  • Public Safety
  • Defence
  • Kiosks
  • Transportation

SystemCPUIntel® Celeron J1900 2.0GHz Processor
Memory2GB, 4GB optional
ChipsetInter Valley View SSA-Cunit
HDD320GB SATA or 32GB SSD
LAN1 x 10/100/1000Mbps Ethernet
Input / OutputSerial Ports2 x COM
USB Ports4 X USB
HDMI Port1 X HDMI
VGA Port1 x VGA
LPT SlotN/A
AudioMIC-IN, LINE-OUT
PanelCell Type/Glass SurfaceTFT LCD
Aspect Ratio/Size15” 4:3
Active Area/Pixel Pitch304.1(H) x 228.1(V)/0.297mm
Native Resolution/Colors1024 x 768 /16.2M
Brightness/Contrast1000nits/700:1
Viewing Angle(Typical)80/80/60/80

Synchronization Range

Horizontal/Vertical

31.5~60.0KHz/60~75Hz
Light SourceLED Backlight with 50000Hours’Lifetime
Convenient FeaturesBacklight adjustment, Plug & Play
PowerInput VoltageExternal power supply with universal / Auto-Sensing, DC 12V
Operation/Power Saving40W
Environment ConsiderationsOperating Temperature-10~60℃ (20~70℃ Optional)
Storage Temperature-20~70℃
Relative Humidity10%~90% (non condensing)
OS SupportWindows 7/ 8/10, Windows Embedded, Linux, Win CE
Touch Panel/InterfaceResistive Touch Panel
Order Information15”Industrial panel PC 1000nits with IR touch/ ITD15PPCT2HBJ2
15”Industrial panel PC 1000nits with SAW touch/ ITD15PPCT3HBJ2
15”Industrial panel PC 1000nits with PCT touch/ ITD15PPCT5HBJ2
15”Industrial panel PC 1000nits with tempered glass/ ITD15PPCG1HBJ2
15”Industrial panel PC 1000nits without touch/ ITD15PPCN1HBJ2
