Categories | Single Girder Gantry Crane |
---|---|
Brand Name: | KUANGYUAN |
Model Number: | MH |
Certification: | ISO CE GOST |
Place of Origin: | Henan,China |
MOQ: | 1Set |
Price: | USD 10000-45000 |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000 sets per year |
Delivery Time: | 45~65 work days |
Packaging Details: | 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for co |
product name: | MH type electric mobile single girder hook gantry crane |

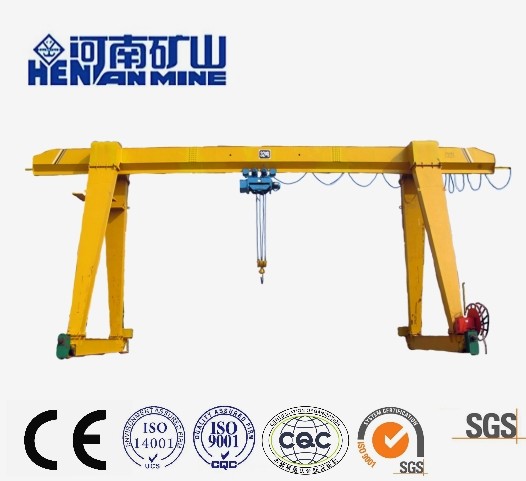

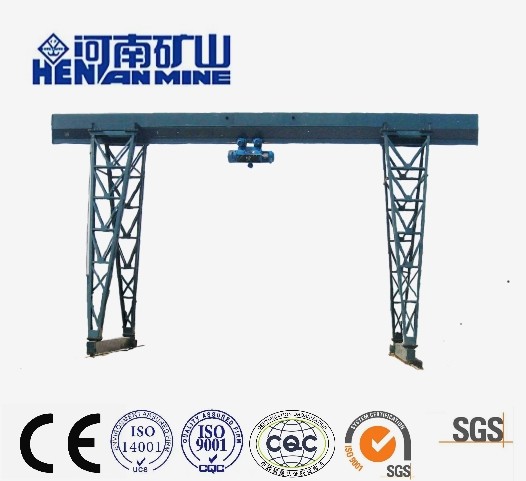

girder type: | box type or trussed type |
working duty: | A4,A5 |
lifting capacity: | 5~32t |
lifting height: | 10~12m |
lifting speed: | 7.6~12.75m/min |
power source: | 3 Phase 380V 50hz/Custmized |
control method: | Wireless Remote Control |
material: | Q235B ; Q345E |
main electric parts: | Simens Brand |
Company Info. |
Henan Mine Crane Co.,Ltd. |
View Contact Details |
Product List |
Are you interested in this MH series single girder gantry crane?We are ready to quote for you according to your customizable paremeters as follows. (kindly please provide the following information when sending enquiry to us.)
1. Lifting capacity :_____ton
2. Span :______meters (it is center to center distance between two legs)
3. Lifting height :_____meters (it is the distance from center of hook to floor)
4. Gantry crane type:box type or trussed type ?
5. Industrial voltage _____V, _____HZ, 3Phases
6. Control mode: Pendent or Wireless remote control or both?
7. Do you also need us to supply rail and bus bar: YES or NO? ,
![]() |
