| Categories | 3 In 1 H Beam Welding Line |
|---|---|
| Brand Name: | yaoqiang |
| Model Number: | YQPJ1200/1500/2000 |
| Certification: | CE |
| Place of Origin: | Jiangsu China |
| MOQ: | 1 set |
| Price: | US $35,000-45,000/ set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets/month |
| Delivery Time: | 20 days |
| Packaging Details: | standard packing |
| Model: | SXBH-20 |
| Web height mm: | 200-2000 |
| rails' distance: | 2000mm |
| Welding machine type: | Gantry type |
| Lead time: | 15 days |
| Power: | Customized |

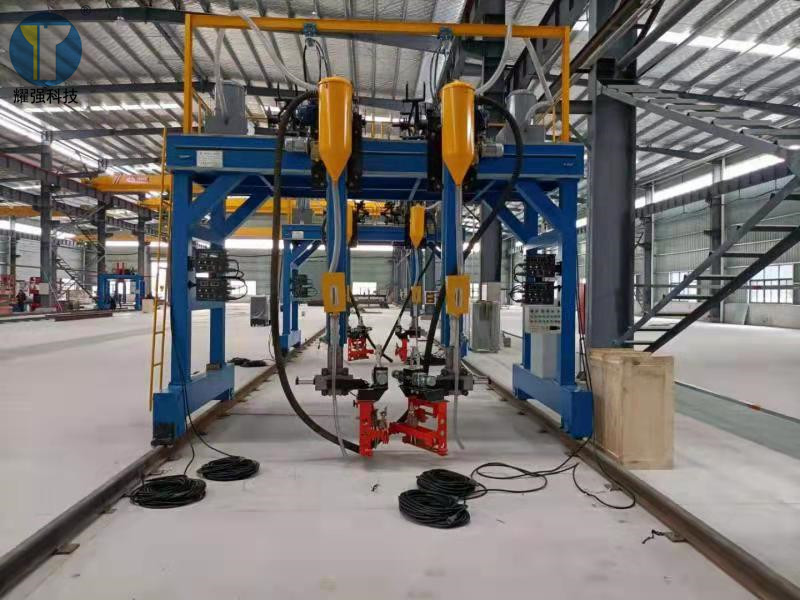

H Beam Welding Line 3 Functions Assembly Welding Straightening Machine
Characters:
1. The H beam gantry gate welding machine has two structures:
Gantry gate move type & double cantilever move type.
2. Gantry gate or cantilever drive method: AC motor and R series
worm reducer.
3. Welding speed: 0.15~1.5m/min.
4. Arc guide frame head function is to mechanically track up and
down, left and right.
5. Imported frequency converter is able to realize gantry gate or
cantilevers stepless speed adjustment, with wide speed adjustment
range, high accuracy and constant output torque.
6. Electrical control cabinet includes main control cabinet and
remote operation box.
7. Two work-piece at one time.
| Model | web height mm | flange width mm | welder model | welding type | welding speed | welding torch return speed | rails' distance mm | overall power |
| LHA-4000 | 200-1500 | 200-800 | MZ-1000 | boat-type welding | 0.15-1.5m/min | 3m/min | 4000 | 10KW,exclude welder power |
| SXBH-20 | 200-2000 | 200-800 | 2000 |
| NO. | MODEL | YQPJ1500 |
| 1 | Web height | 1500 mm |
| 2 | Web thickness | 6~32 mm |
| 3 | Flange width | 150~800 mm |
| 4 | lange thickness | 6-40 mm |
| 5 | H beam length | 4000~15000 mm |
| 6 | Dimensional adjustment system | Separate, mechanical |
| 7 | welder | 2 sets of Mechanical submerged arc welding machine |
| 8 | Welder Power | 2×75KW |
| 9 | Welder type | automatic submerged arc welding |
| 10 | weld speed | 0-1000 mm/min |
| 11 | Weld speed adjustment | level and smooth |
| 12 | Head angle adjustment | ±45°±12.5 |
| 13 | Pressure of hydraulic system | ≤10 Mpa |
| 14 | Automatic welding cycle system | 2sets |
| 15 | Flux | 2×100 kg |
| 16 | Total power | 24 kw Except for welding power supply |
| 17 | Overall dimensions (L * w * h) | 30000×3270×5150 mm |
| weld size(mm) | wire diameter(mm) | welding current (A) | welding voltage(V) | welding speed(mm/min) |
| 4 | 3 | 350~370 | 28~30 | 880~910 |
| 6 | 3 | 450~470 | 28~30 | 900~960 |
| 4 | 480~500 | 28~30 | 960~1000 | |
| 8 | 3 | 500~530 | 30~32 | 730~760 |
| 4 | 670~700 | 32~34 | 800~830 |
| No. | Name | |
| 1 | welder | MZ-1000(optional,also can use CO2 welder) |
| 2 | Welding machine control box | MZ-1000 |
| 3 | Inverter manufacturers | 11KW,2.2KW HUICHUAN |
| 4 | Major electrical equipment manufacturers | SIEMENS, OMRON (Japan) |
| 5 | Hydraulic parts manufacturers | TAIWAN |
| 6 | main motor supplier | NANTONG |
| 7 | Wing web centering motor | 2 sets NINGBO |
| 8 | Main reducer manufacturers | CHANGZHOU |
| 9 | recovery equipment | 2 sets WUXI |
Documents:
1, Instruction manual, including electric and hydraulic
illustrative diagram and easy damaged parts list.
2, User manual of frequency converter, hydraulic bump station.
3, Packing list
4, Certification
5, Foundation drawing for installation.
|
