| Categories | End Face Milling Machine |
|---|---|
| Brand Name: | YAOQIANG |
| Model Number: | DX |
| Certification: | CE ISO |
| Place of Origin: | JIANGSU,CHINA |
| MOQ: | 1 set |
| Price: | $20,000~$35,000 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10pcs/month |
| Delivery Time: | 30 days |
| Packaging Details: | standard packing |
| Model: | DX1622 |
| Milling work-piece height: | 1600mm |
| Milling work-piece width: | 2200mm |
| Max milling depth: | 5mm |
| Horizontal feed rate: | 90~960mm/min |
| Fast-back speed: | 660mm/min |
| Vertical feed rate: | 200～650mm/min |
| Cutter diameter: | ￠200 |
| Warranty: | 1 year |
| OEM: | Yes |

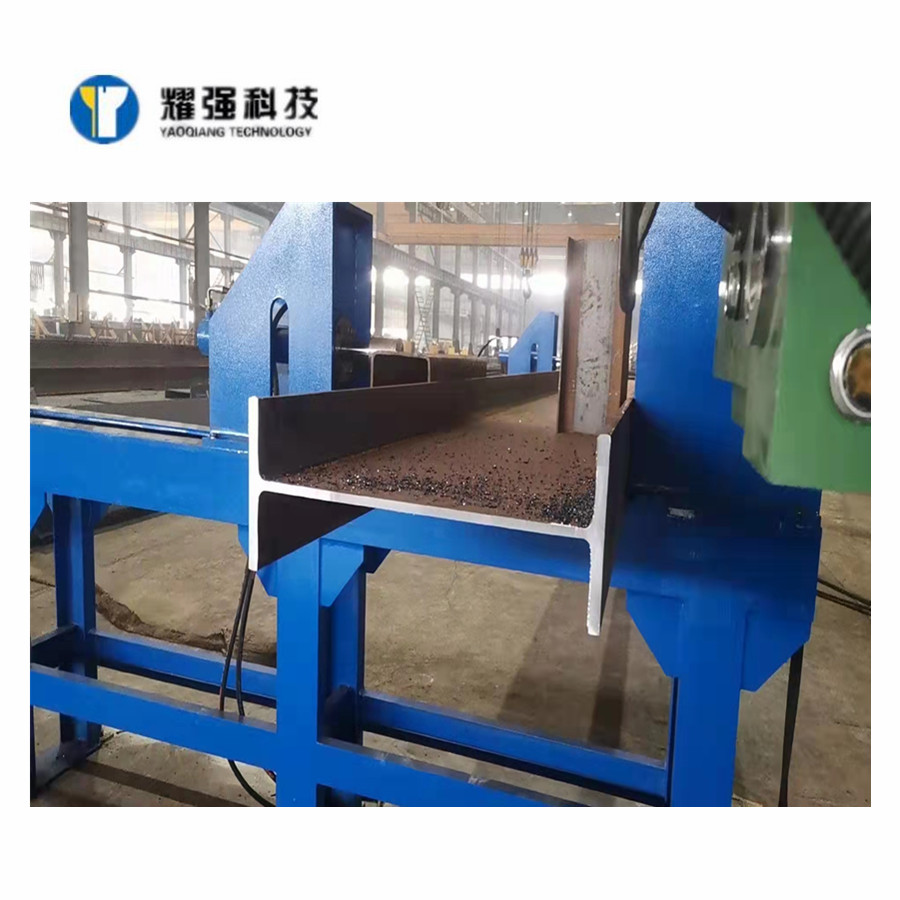

Heavy Horizontal Metal End Face Milling Machine For H Beam Box Beam Wich PLC Control
End Face Milling Machine tool is mainly used for milling the end face of the workpiece.
Especially for steel frame structure surface, casting end surface, plane processing is more convenient and quick, also can be used for step plane, long groove milling processing.
The end milling machine is used for milling the end faces of welded or rolled H-shaped steel and box beams.
The maximum end face size of the steel that can be milled is 3200*1200mm, and it can also mill the side of the steel. It is a steel structure. One of the necessary equipment in the production industry.
It is more suitable for mass-produced workpieces.
The main structure of the machine tool adopts a column (milling head) end milling machine moving feed mode: the column (milling head) moves left and right, and the milling head moves up and down.
The end face milling machine occupies a small area, and the machine tool is easy to install, adjust and operate.
| Horizontal transmission | Motor power | 5.5KW |
| Working speed | 50 ~ 440mm/min | |
| Fast retreat speed | 660mm/min | |
| Vertical transmission | Motor Power | 1.5KW (corresponding speed is 1500rpm) |
| Moving speed up and down | 55-500 mm/min | |
| Mill pin head | Model | TX32A |
| Motor Power | 7.5KW (corresponding speed is 1420rpm) | |
| Spindle speed | 125-630rpm | |
| Cutter diameter | D=200mm |
Our company mainly produces and sells:

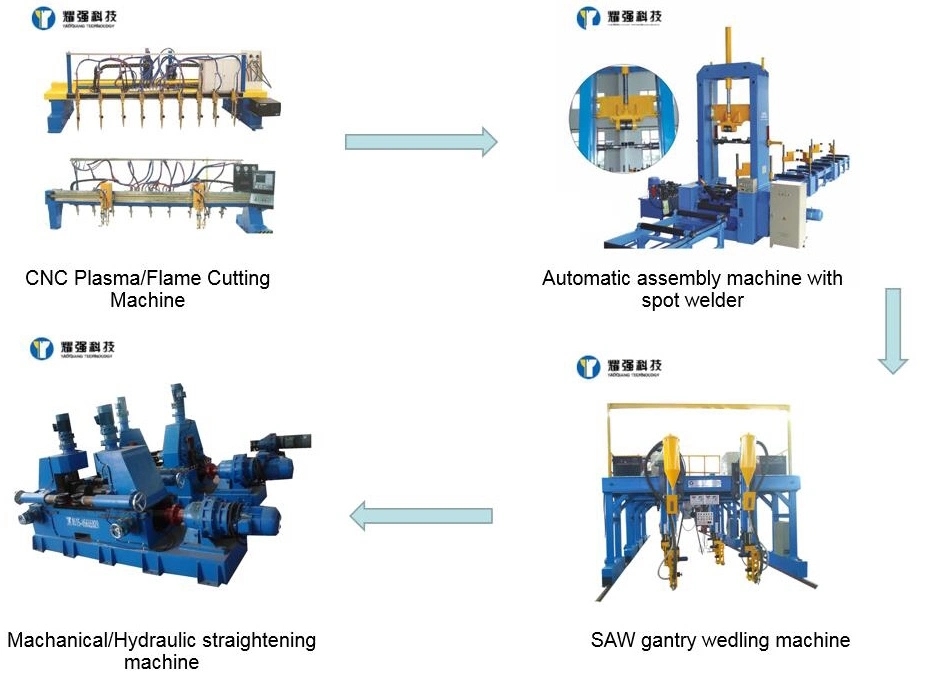

(1) H-beam production line-including CNC cutting machine, assembly machine, gantry welding machine, H-beam straightening machine, H-beam shot blasting machine.
(2) Welding and cutting equipment-including electric welding machine, roller frame, cross manipulator, welding positioner, flux recovery machine. (3) Special mechanical equipment-including friction stir welding bed, steel plate chamfering machine, pipe cutting and beveling machine, and milling machine.
(4) Machine tool equipment-including drilling, milling, turning,
planing and other products. (5) Mechanical equipment
accessories-including assembly machine accessories, gantry welding
accessories, CNC cutting machine accessories, straightening machine
accessories, roller frame roller accessories, etc.
We have strong manufacturing capabilities, perfect services, strong
technical force, and a complete and scientific quality management
system. In the 20 years of welding equipment industry, we have
provided many customers with honesty, trustworthiness and
pragmatism. Products and services are well recognized, and friends
from all walks of life are welcome to visit, guide and negotiate
business.
|
