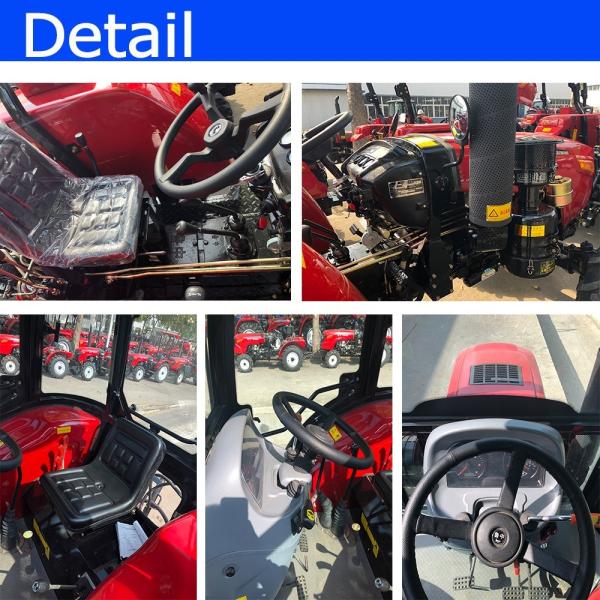

Luzhong 40--55HP 4X2/ 4X4 4WD Farm/Lawn/Garden/Large/Diesel Farm/Farming/Agricultural/Agri Tractor with ISO

Categories	Agricultural Machinery
Color:	Blue
Condition:	New
Transport Package:	Nude Packing
Origin:	Shandong
Supply Ability:	2000
Type:	Wheel Tractor
Usage:	Farm Tractor, Garden Tractor, Lawn Tractor
Drive Wheel:	4WD
Emission Standard:	Euro III
Fuel:	Gas / Diesel
Size:	Medium
Customization:	Available \| Customized Request

Contact Now

Add to Cart

Company Info.

Weifang Changjiu International Trading Co., Ltd.

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Basic Info.

Color

Blue

Condition

New

Transport Package

Nude Packing

Origin

Shandong

Production Capacity

2000

Luzhong 40--55HP 4X2/ 4X4 4WD Farm/Lawn/Garden/Large/Diesel Farm/Farming/Agricultural/Agri Tractor with ISO

Model			LZ404	LZ454	LZ484	LZ504	LZ524	LZ554
Type			4WD Wheeled Type
Dimensions of Tractor(mm)	Length (to front ballast)		3835				3872	3847
	Width		1620				1750	1750
	Height (to the exhaust vent)		2220	2135			2130	2130
	Tread	Front Wheel	1280				1250
		Rear Wheel	1300 Fixed or 1200~1500 Adjusted
	Axle Base		2030				2010	2073
	Min.Ground Clearance		325
Structure weight (kg)			1665		1734			1790
Ballast weight (kg)	Front ballast		140			168
	Rear ballast		200		300
Rated traction force (N)			11000	11300	11400	11500	11600	11800
Engine	Model		3105/490	495	495/498	498/4100	4100	4105
	Type		Vertical,4-Cylinder,Water Cooled and 4-stroke
	Rated Power(kw)		29.4	33	35.2	36.7	38.2	40.4
	Rated speed (r/min)		2400
	Fuel		Diesel
Tyre	Front Wheel		8.3-20
	Rear Wheel		12.4-28
Clutch			Dual-stage clutch
Steering			power steering
Transmission Type			8+2 or 8+8 with shuttle gearshift or (8+2)×2 with creeper shift
Suspension Type			3-point links
PTO	Type and Rev		Semi-independent Type 540/1000
	Spline Size		F35 Rectangle Spline with 6 teeth

Model			LZ400	LZ450	LZ480	LZ500	LZ520	LZ550
Type			2WD Wheeled Type
Dimensions of Tractor(mm)	Length(With front ballast)		3835				3880	3855
	Width		1620				1750	1750
	Height(to the exhaust vent)		2135			2210		2130
	Tread	Front Wheel	1300 or 1200~1500 Adjusted
		Rear Wheel	1300 Fixed or 1200~1500 Adjusted
	Axle Base		1910				1994	2081
	Min.Ground Clearance		410				400
(kg) Structure weight			1665		1734			1790
Ballast weight (kg)	Front ballast		112			140
	Rear ballast		100		200
Rated traction force (N)			8300	8500	8700	8800	8900	9500
Engine	Model		3105/490	495	495/498	498/4100	4100	4105
	Type		Vertical,4-Cylinder,Water Cooled and 4-stroke
	Rated Power(kw)		29.4	33	35.2	36.7	38.2	40.4
	Rated speed (r/min)		2400
	Fuel		Diesel
Tyre	Front Wheel		6.00-16
	Rear Wheel		12.4-28
Clutch			Dual-stage clutch
Steering			power steering
Transmission Type			8+2 or 8+8 with shuttle gearshift or (8+2)×2 with creeper shift
Suspension Type			3-point links
Suspension Type	Type and Rev		Semi-independent Type 540/1000
PTO	Spline Size		F35 Rectangle Spline with 6 teeth
