| Categories | Open Mill Rubber Mixing |
|---|---|
| Brand Name: | HHS |
| Model Number: | XK450 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | USD35000/SET |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SETS/MONTH |
| Delivery Time: | 30 working days |
| Packaging Details: | wood package /20/40GP/HC |
| After-sales service provided: | Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support |
| Type: | Open Mixing Mill |
| Roller hardness: | 50 |
| Bush: | nylon bush,bearing bush,ball bearing b |
| Voltage: | 220V/380V/450V |
| Power(w): | 18.5KW |
| Weight: | 5200KG |
| Dimension(l*w*h): | 2722X1115X1345mm |
| Warranty: | 2 Year |
| Condition: | New |

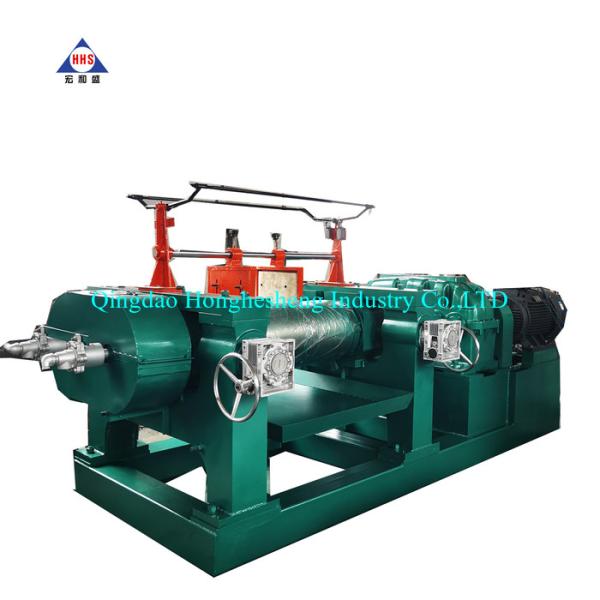

Two Roll Mixing mill
1. As a open type two roller mixing mill, it consists of seat,
frame, roller, driving gear, lubricating device, cooling and
heating device, adjusting device of roller nip, safety brake, motor
and reducer, etc.
2. The roller, with smooth surface after polished,is made of
chilled cast iron. Steam and cooling water can be inputted in the
empty roller to adjust temperature of roller. Two rollers rotate
reversely with different speed, so that rubber materials are drawn
into the gap of the two rollers for processing.
Safe Emergency Stop Device
1. Two emergency stop buttons
2. Overhead emergency stop rope 3. Kick emergency stop Switch
Equipment application and operation requirements
1. Main application: mixing mill is mainly used for rubber compound
warming, mixing &sheeting, as well as raw rubber plasticating,
mixing &sheeting.
2. Operation requirements
Technical Parameters:
| Type | XK-160 | XK-230 | XK-250 | XK-300 | XK- 360 |
| Working diameter of rolls (mm) | 160 | 230 | 250 | 300 | 360 |
| Working Length of rolls (mm) | 320 | 600 | 620 | 750 | 900 |
| Front roll surface speed (m/min) | 8.95 | 10.21 | 14.1 | 15.1 | 16.25 |
| Friction ratio | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.25 |
| Max. nip (mm) | 4.5 | 7 | 8 | 10 | 10 |
| Capacity per batch (kg) | 1-2 | 6-10 | 8-15 | 15-20 | 20-25 |
| Motor power (KW) | 5.5 | 15 | 18.5 | 22 | 30 |
| Size (L*W*H) (mm) | 1380*850*1320 | 2800*1200*1120 | 3400*1500*1500 | 2450*1500*1550 | 3780*1850*1750 |
| Type | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 |
| Working diameter of rolls (mm) | 400 | 450 | 560/510 | 550 | 660 |
| Working Length of rolls (mm) | 1000 | 1200 | 1530 | 1500 | 2130 |
| Front roll surface speed (m/min) | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
| Friction ratio | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 |
| Max. nip (mm) | 10 | 15 | 15 | 15 | 15 |
| Capacity per batch (kg) | 18-35 | 25-50 | 35-50 | 50-60 | 165 |
| Motor power (KW) | 37 | 55 | 90 | 110 | 245 |
| Size (L*W*H) (mm) | 4350*1850*1785 | 5200*2380*1840 | 5845*2284*1978 | 5878*2475*2045 | 7455*3662*2080 |
|
