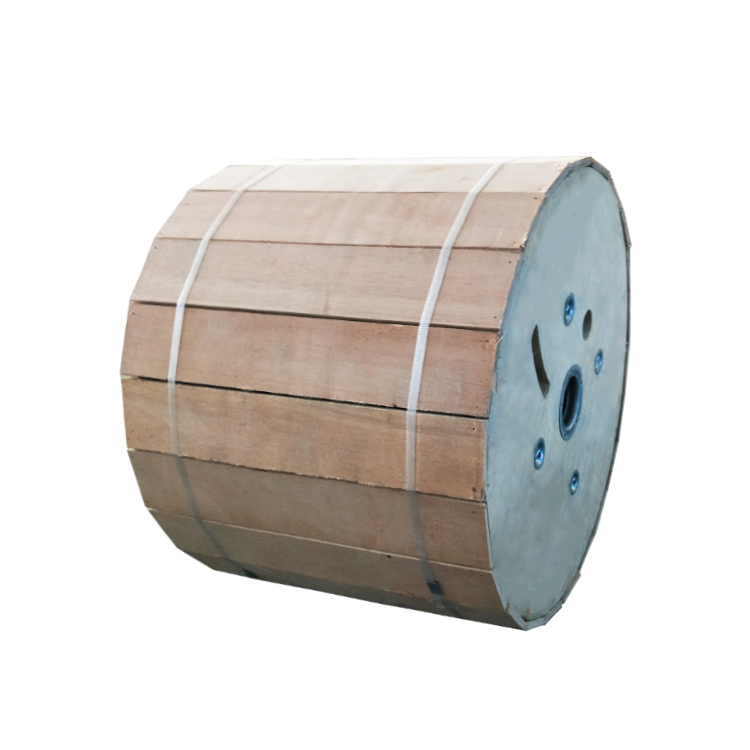

Packaging Details:	wood Drum
Product Name:	Unitube Light-armored Cable GYXTW
Application:	OUTDOOR
Color:	Black or OEM
Cable Diameter:	100M,OEM
Strength Member:	OEM
Way:	Portable

Contact Now

Add to Cart

Company Info.

TTI Fiber Communication Tech. Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Communication GYXTW 8 Core Armoured Fibre Optic Cord Optical Fiber Cable

Outdoor Communication Use GYXTW 4 or 8 Core Armoured Fibre Optic
Cord Prices Optical Fiber Cable

Description

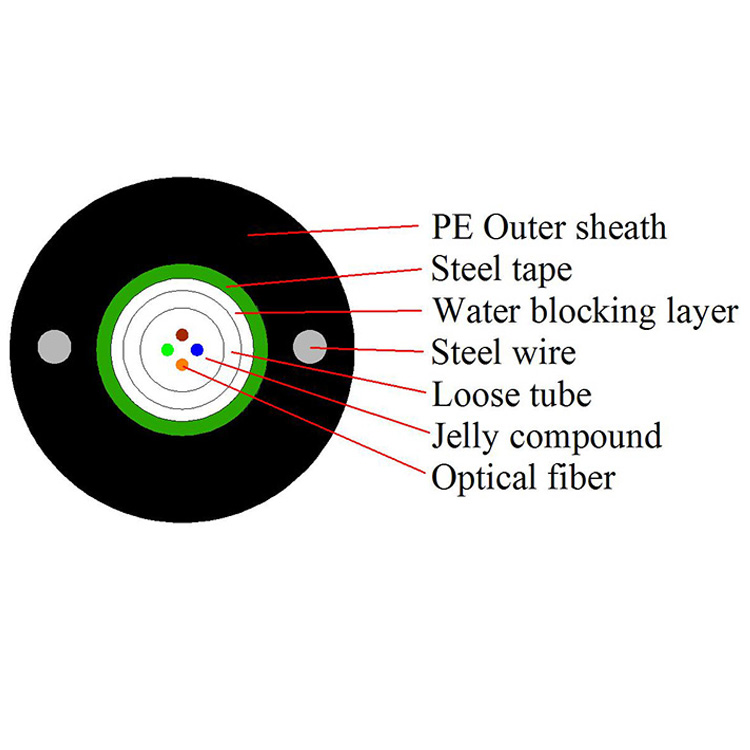

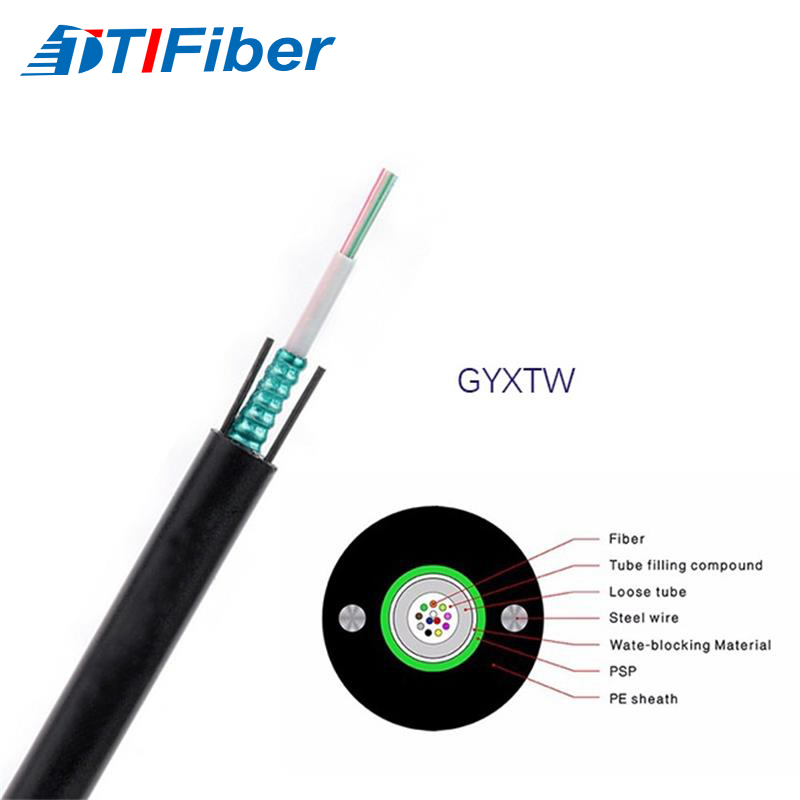

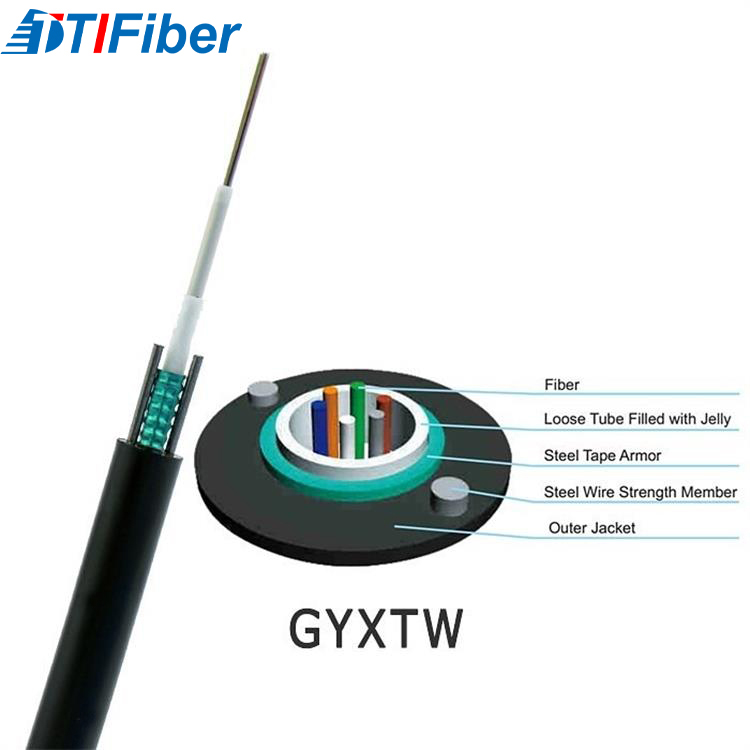

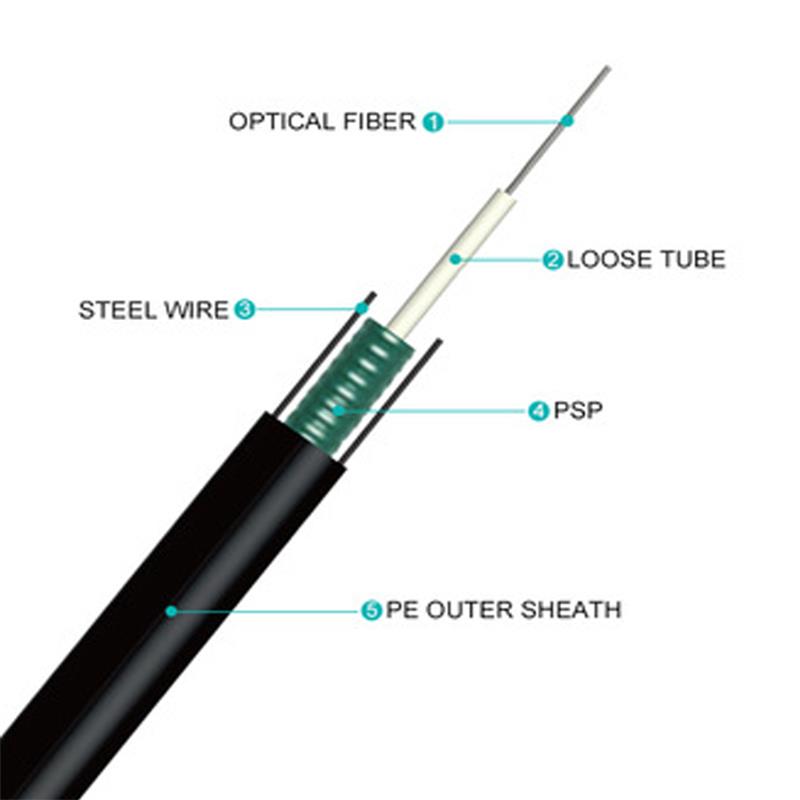

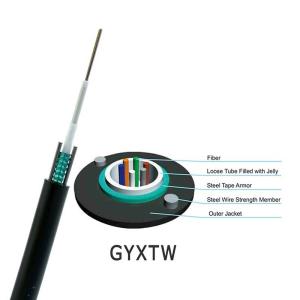

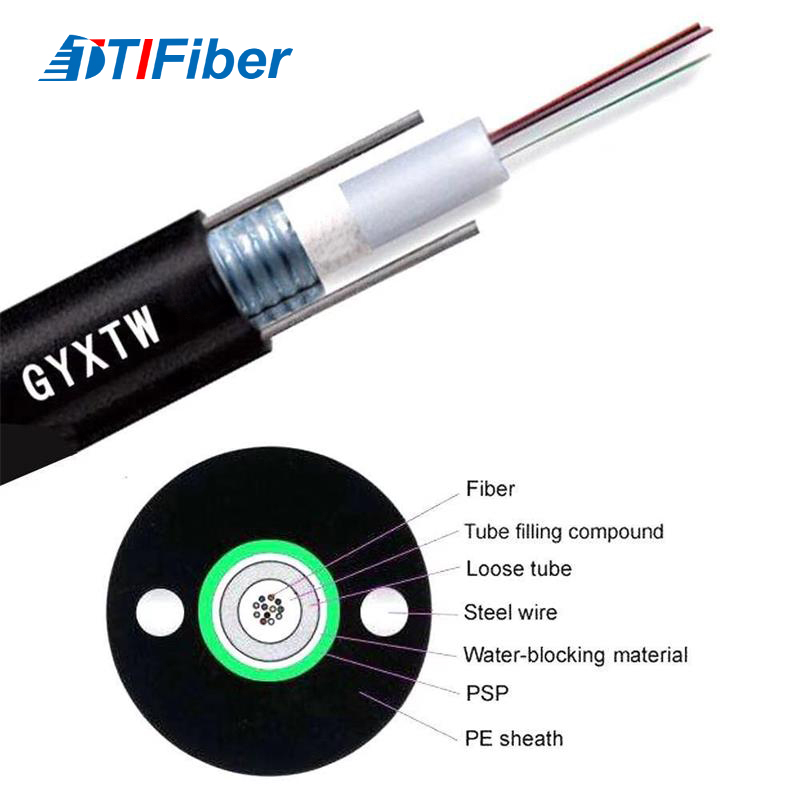

The 250μm fiber is positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP
longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two
parallel steel wires are placed at the two sides of the steel tape.
The parallel steel wires are placed at the two sides tape. The
cable is completed with a polyethylene (PE) sheath.

Features
1). Good mechanical and temperature performance
2). High strength loose tube that is hydrolysis resistant
3). Special tube filling compound ensure a critical protection of
fiber
4). Crush resistance and flexibility
5). PSP enhancing moisture-proof
6). Two parallel steel wires ensure tensile strength
7). Small diameter, light weight and friendly installation
8). Storage / Operating Temperature: -40℃~+70℃

Application
Usable in Duct / Aerial

Parameter:

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation (max.)	1310nm	dB/km	≤0.36
9	Attenuation (max.)	1550nm	dB/km	≤0.24

Cable Parameters

Items		Specifications
Fiber Count		2~24
Colored Coating Fiber	Dimension	250µm±15µm
Colored Coating Fiber	Color	Blue, Orange, Green, Brown, Gray, White
Loose Tube	Dimension	2.10mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	1.0mm
Strength Member	Material	Steel
Outer Jacket	Dimension	8.0mm±0.1mm
	Material	PE
	Color	Black

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tensio (Long Term)	N	600
Tension (Short Term)	N	1500
Crush (Long Term)	N/10cm	300
Crush (Short Term)	N/10cm	1000
Min. Bend Radius (Dynamic)	mm	20D
Min. Bend Radius (Static)	mm	10D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70
