| Categories | Stainless Steel Seamless Tube |
|---|---|
| Brand Name: | DELTA |
| Model Number: | TP304 TP316L TP321 TP317L.etc |
| Certification: | ISO 9001 |
| Place of Origin: | China |
| MOQ: | 500 ks |
| Price: | 2650 USD/Ton |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Ton/month |
| Delivery Time: | 5-12 days |
| Packaging Details: | good packing for export |
| Products: | stainless steel pipe |
| Grade: | TP304 TP316L TP321.etc |
| Standard: | ASTM A312/312M |
| Diameter: | DN6 - DN400mm |
| Length: | 6m or cutting as request |
| Surface: | pickled finishing |
| Company Info. |
| JIANGSU MITTEL STEEL INDUSTRIAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Seamless Stainless Steel Pipe Tube Grade 304 316L 310S 321 2205 2507 904L Stainless Steel Pipe
Stainless Steel Seamless Pipe is made from round bar. There are
many processes to make round bar to seamless pipe. It is different
from welded pipe, seamless pipe has no welding seam across the
whole section. Hence, it can bear higher pressure than welded pipe.
It is widely used in the food industry, home appliances and
consumer electronics, medical equipment, architectural decoration,
hardware tools, automotive industry, petrochemical, water treatment
plants, aerospace, etc.
Tubinox is able to make stainless steel seamless pipe as per
different standards/specifications, like ASTM A312 / ASME SA312,
ASTM A213 / ASME SA213, ASTM A269, ASTM A632 / ASME SA632, JIS
G3459, JIS G3448, JIS G3463, EN10216-5, EN ISO1127, DIN 17456, DIN
17458, GOST 9941, etc. We can also make as per custom
specification.
| Name | Stainless Steel Seamless Pipes |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Material Grade | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
| TP410 TP410S TP403 | |
| S31803/S32205 S32750 S32760 | |
| Outer Diameter | Seamless Pipe: 4mm-812.80mm |
| Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), | |
| Thickness | Seamless Pipe: 0.5mm - 60mm |
| Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) | |
| Length | 5.8-6.1 m or as customers' request |
| Tolerance | Acording to the Standard. |
| Surface | 180G, 320G, 400G Satin / Hairline |
| 400G, 500G, 600G or 800G Mirror finish | |
| Test | UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
| Certificate | ISO9001-2008,ASME, PED |
| Delivery Time | 30-60Days, Depends on quantity |
| seamless stainless steel pipe |
|
| welded stainless steel pipe |
|
Grade Chemical Composition of our grade
| Grade | Chemical Composition (%) | |||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | Ti | N | |
| TP304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0-20.0 | 8.0-11.0 | - | - | - |
| TP304L | ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0-20.0 | 8.0-13.0 | - | - | - |
| TP304H | 0.04-0.10 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0-20.0 | 8.0-11.0 | - | - | - |
| TP309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 22.0-24.0 | 12.0-15.0 | ≤0.75 | - | - |
| TP310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 24.0-26.0 | 19.0-22.0 | ≤0.75 | - | - |
| TP316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | - | - |
| TP316L | ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | - | - |
| TP316Ti | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | 5x(C+N)-0.70 | ≤0.10 |
| TP317L | ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0-20.0 | 11.0-15.0 | 3.00-4.00 | - | - |
| TP321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 17.0-19.0 | 9.0-12.0 | - | 5xC-0.70 | ≤0.10 |
| TP321H | 0.04-0.10 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 17.0-19.0 | 9.0-12.0 | - | 4xC-0.60 | - |
| TP347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 17.0-19.0 | 9.0-13.0 | - | - | - |
| S31803 | ≤0.030 | ≤2.00 | ≤0.030 | ≤0.020 | ≤1.00 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | - | 0.08-0.20 |
| S32205 | ≤0.030 | ≤2.00 | ≤0.030 | ≤0.020 | ≤1.00 | 22.0-23.0 | 4.5-6.5 | 3.0-3.5 | - | 0.14-0.20 |

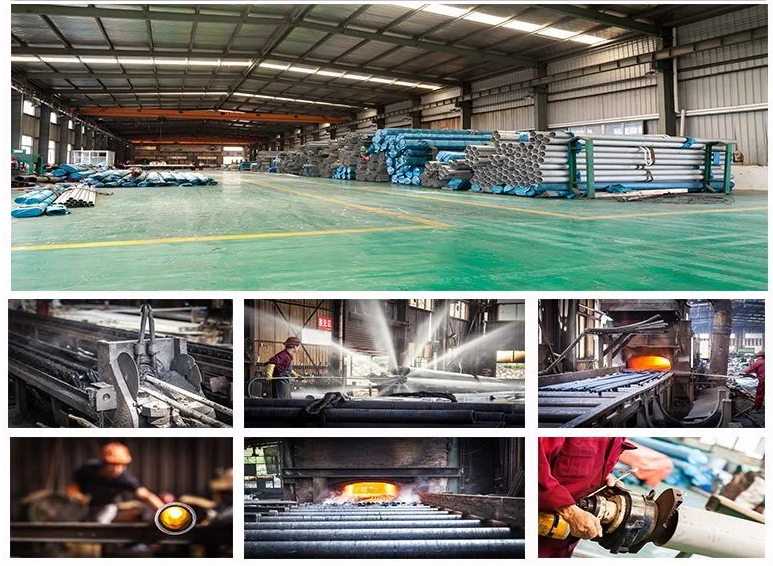

Our Factory Show
Shipping Informations:
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Goods delivered by 20" , 40" FCL/LCL by quantity or customer's request.
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 10-30days after conformed or according to quantity.
FAQ
| Q | What is our product range? |
| A | Based on our Stainless Steel seamless pipe factory, We supply the ONE-STOP service fittings,flanges, valves etc |
| Q | What is our advantages? |
| A | 1.SAILING has more than 10 years experience in this industry. 2.For each order, strict QC will be carried by the QC department before Shipping 3.Certificated by ISO,PED,TUV 4.Third party inspection such as TUV,BVmLloyd's,SGS. 5.Competitive price with reliable quality |
