Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Model Number: | RGL-400P |
Certification: | ce, LVD, RoHS, Saa |
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) 2.Carton Size(mm):550*450*415mm 3.One 20'' Container can accept 250 Units |
Supply Ability: | 5000 Piece/Pieces per Month |
Price: | $470.00 - $590.00/Pieces |
Color Temperature(CCT): | 2000K - 6000K |
Lamp Luminous Efficiency(lm/w): | 110 |
Lighting solutions service: | Lighting and circuitry design, DIALux evo layout |
Working Time (hours): | 50000 |
Input Voltage(V): | 80 ~ 315Vac, (347Vac available on request) |
Beam Angle(°): | 20°, 20° |
Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum |
IP Rating: | IP65 |
Application: | Sports Stadiums |
Light Source: | LED |
Lamp Luminous Flux(lm): | 44000 lm, 44000 lm |
Working Temperature(℃): | -40C~60C/40F~140F, -40C ~ 60C / -40F ~ 140F |
Warranty(Year): | 5-Year |

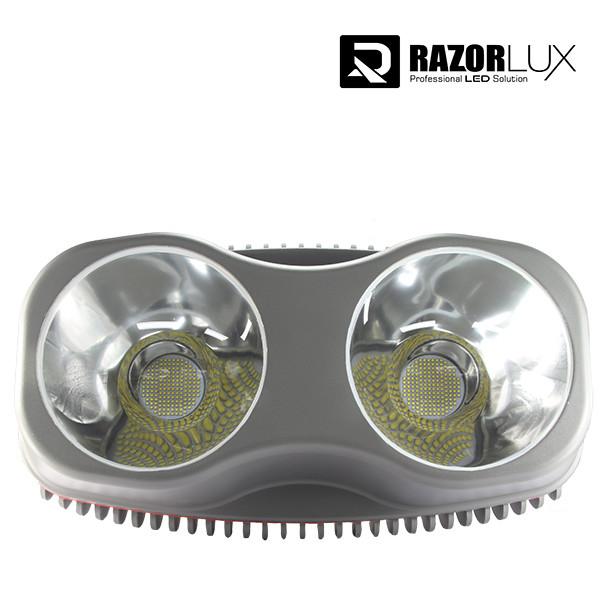

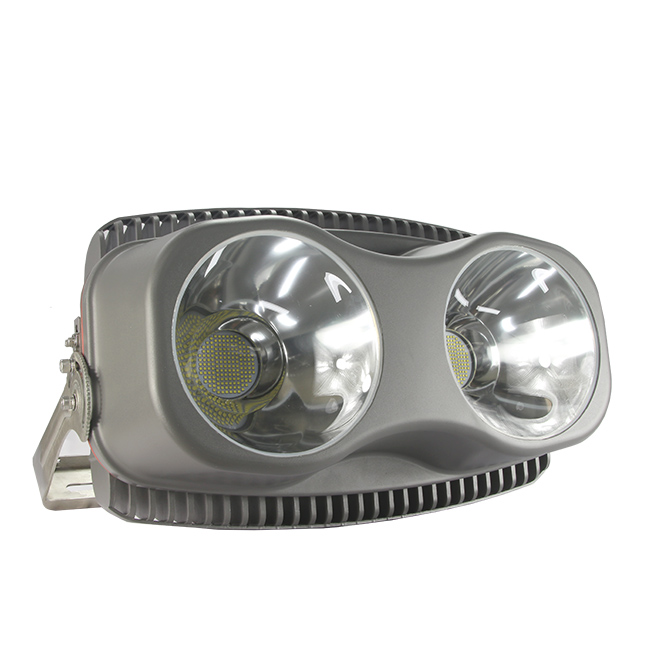

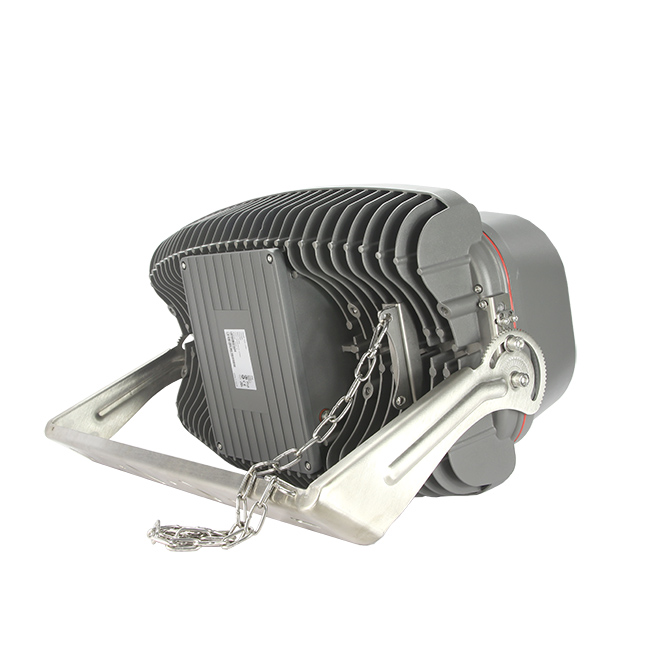

Product Name: | 400 watt led flood light |
Power: | 400w |
Color Temperature: | 2000K - 6000K |
Color Rendering: | ≥Ra80 |
Model | RGL-400P | 1000P-L20 | 1000A-L60 | 1000A-L120 | 1000A-L140 | ||||||
Beam Angle | 20° | 20° | 60° | 120° | 140°x60° | ||||||
Stable Flux(5700K after 1 hour) | 44000 lm | 105,000 lm | 110,000 lm | 120,000 lm | 102,000 lm | ||||||
Dimension (mm) | 670x370x300mm | ||||||||||
Power Consumption | LEDs | 360W | |||||||||
Driver | 40W | ||||||||||
Total | 400W | ||||||||||
Replace HID Lamp | 1000-2000W | ||||||||||
Net Weight | 20kg (44lbs) | ||||||||||
Color Temperature | 2000K - 6000K | ||||||||||
Color Rendering | ≥Ra80 | ||||||||||
Working Life | ≥50000Hrs | ||||||||||
Housing Material | Aluminum | ||||||||||
Coating | Zinc Rich Paint | ||||||||||
IP Class | IP 65 (Upgradeable to IP 67) | ||||||||||
Insulation Class | Class I | ||||||||||
Working Temperature | -40 ~ 60C / -40 ~ 140F | ||||||||||
Working Humidity | 10% ~ 95% | ||||||||||
AC Input | 80 ~ 315Vac, (347Vac available on request) | ||||||||||
DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | ||||||||||
THD | <10% | ||||||||||
Power Factor | ≥0.98 | ||||||||||
Warranty | LED Module | 5 year | |||||||||
Driver | 5 year | ||||||||||
Housing | 10 year |
![]() |
