| Categories | Hollow Paddle Dryer |
|---|---|
| Brand Name: | Xin Shengman |
| Model Number: | Hollow Paddle Dryer |
| Certification: | ISO9001 and CE |
| Place of Origin: | CHANGZHOU |
| MOQ: | 1 pc |
| Price: | USD1,5000-USD20,3000 |
| Payment Terms: | T/T |
| Supply Ability: | 6sets/Month |
| Delivery Time: | 30-60 days |
| Packaging Details: | Plywood cases |
| Name: | paddle blade dryer |
| After-sales Service: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Material: | 304 Stainless Steel |
| Heating Method: | hot water/steam/oil |
| Capacity: | as u requirement |
| Heating source: | Steam, electricity, etc |
| Model: | KJG-13 KJG-24 KJG-36 KJG-24 KJG-110, ETC |
| Condition: | New |
| Application: | sludge |
| Type: | blade dryer |
| Company Info. |
| Jiangsu Shengman Drying Equipment Engineering Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

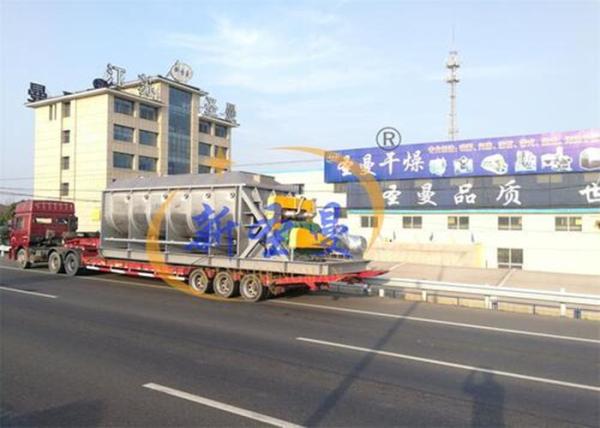

Sludge Treatment High Quality Sludge Drying Equipment Polyester Hollow Paddle Dryer
Product introduction:
The product can indirectly heat or cool paste, granule, powder and slurry materials, and can complete drying, cooling, heating, sterilization, reaction, low temperature combustion and other unit operations. The special wedge-shaped agitated heat transfer blade in the equipment has high heat transfer efficiency and self-cleaning function of heat transfer surface.
Vacuum rake dryer, it is an innovation horizontal batch-type vacuum drier improved on the basis of absorbing technology of domestic rake drier. The moisture of wet material will be evaporated by heat transmission. The stirrer with grinding scraper will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be drawn out by vacuum pump.
Technical parameters
| Model | KJG-2.7 | KJG-24 | KJG-52 | KJG-81 | KJG-110 |
| Heat transfer area | 2.7 | 24 | 52 | 81 | 110 |
| effective volume | 0.06 | 1.53 | 3.96 | 6.43 | 9.46 |
| revolution | 15-30 | 10-20 | 10-20 | 5-15 | 5-10 |
| power | 2.2 | 11 | 30 | 55 | 95 |
| width of dryer body | 306 | 1118 | 1474 | 1828 | 2210 |
| total width | 736 | 1474 | 1854 | 2286 | 2668 |
| length of dryer body | 1956 | 3454 | 5258 | 6020 | 6122 |
| total length | 2972 | 6147 | 8306 | 9678 | 9880 |
| distance between feeding and disharging | 1752 | 3150 | 4954 | 5562 | 5664 |
| height in center | 380 | 1066 | 1220 | 1220 | |
| total height | 762 | 2032 | 2464 | 2668 | |
| steam inlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
| water outlet | (2) 3/4 | (2) 1 | (2) 11/2 | (2) 11/2 | (2) 2 |
Applications
Petrochemical industry: polyolefin powder, polycarbonate resin, high and low-density polyethylene, linear low-density polyethylene, polyacetal granules, nylon 6, nylon 66, nylon 12, acetate, polyphenylene sulfide, propylene base resin, polypropylene, engineering plastics, polyvinyl chloride, polyvinyl alcohol, polystyrene, polyester, polyoxymethylene, styrene-acrylonitrile copolymerization, ethylene-propylene copolymerization.
Environmental protection industry: sludge, electroplating sewage
sludge, boiler soot, sugar factory waste residue, pharmaceutical
factory waste residue, MSG factory waste residue, coal ash.
Feed industry: soy sauce residue, bone-based feed, distiller's
grains, food scraps, apple pomace, orange peel, soybean meal,
chicken bone feed, fish meal, feed additives, bio-sludge.
Food industry: starch, cocoa beans, corn kernels, salt, modified
starch, medicines.
Chemical industry: soda ash, NPK compound fertilizer, kaolin,
bentonite, white carbon black, carbon black, phosphogypsum, calcium
sulfate, calcium nitrate, magnesium carbonate, sodium cyanide,
oxidized sodium fluoride, aluminum hydroxide, barium sulfate,
calcium carbonate, molecular sieves, dyes, saponins.
1) Low energy consumption: As a result of indirect heating, no much air take away the
heating, the outer wall has insulation layer, the heat efficiency
can be up to 90%. For slurry, evaporating 1kg of water just need 1.2kg vapor.
2) cheap investment: it has huge effective heat transfer surface area per unit, reduce treatment time,
let the machine size become small, so It greatly reduces the
construction area and building space.
3) wide range of materials handling: can use different types of media, not only can treat
heat-sensitive materials, but also handle high-temperature
materials. Common medias are: water vapor, thermal oil, hot water,
cooling water and so on.
4) flexible operation method: Can be continuous operation or intermittent operation, can be
applied in many fields.
5) Low environmental pollution: don't use air to dry material, dust material entrainment is rare.
Small solvent evaporation, easy to treat. For contaminated
materials or solvent recovery conditions, closed-loop can be used.
6) Cheap operating costs: Low-speed mixing and reasonable structure, Low wear, low
maintenance costs. For normal operation, just only 1 person / day.
7) Stable operation: Due to the special compression-expansion stirring of the wedge
blades, the material particle contact with the heat transfer
surface enough, it ensure the processing is stable.
|
