35μm 70 x 350Mesh Firm Structure Stainless Steel Plain Dutch Weave Wire Mesh

Plain Dutch Weave Wire Mesh Introduction

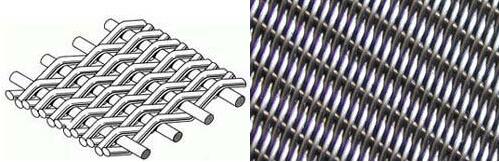

Plain Dutch weave wire cloth is woven using two sizes of wire. Smaller wires, as small as micron size, are used in the shute direction and are woven with a larger warp wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

When compared with square, oblong or broad weave meshes, plain dutch weaves offer increased mechanical strength for industrial filtration. Thanks to their closed surface, filtration occurs at the point where warp and weft join. Dutch weave is manufactured in plain weave pattern (1/1), whereby the warp wires are interwoven with a wider pitch than the weft wires. This significantly increases the strength of the mesh in comparison with square meshes.

70 x 350 mesh Specifications

Roll Width: 0.1m-1.6m

Roll Length: 10m, 20m, 30m; 100ft

Common Specifications of Plain Dutch Wire Mesh

Characteristics:

1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh

Features:

Stainless Steel Dutch Plain Weave Filter Mesh Screen is made of high quality, high strength stainless steel wire. The mesh has so many advantages,such as advanced equipment and production technology, smooth surface, high hardness,constant mesh, no deformation, high temperature resistance, corrosion resistance, flexible network, with excellent filtration performance.

Material:

AISI302, 304, 304L, 316, 304L, 316L, 321, etc.

Weaving Methods:

Plain Dutch Weave ("Warp × Weft" same meaning to "Warp × Shute")

Application:

1.Products are mainly used for gas separation, liquid filtration and other medium;
2.Widely used in precision pressure filter, fuel filter, vacuum filter, filter materials, aerospace, petroleum, pharmaceutical, sugar, oil, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, food, health, scientific research and other industries.

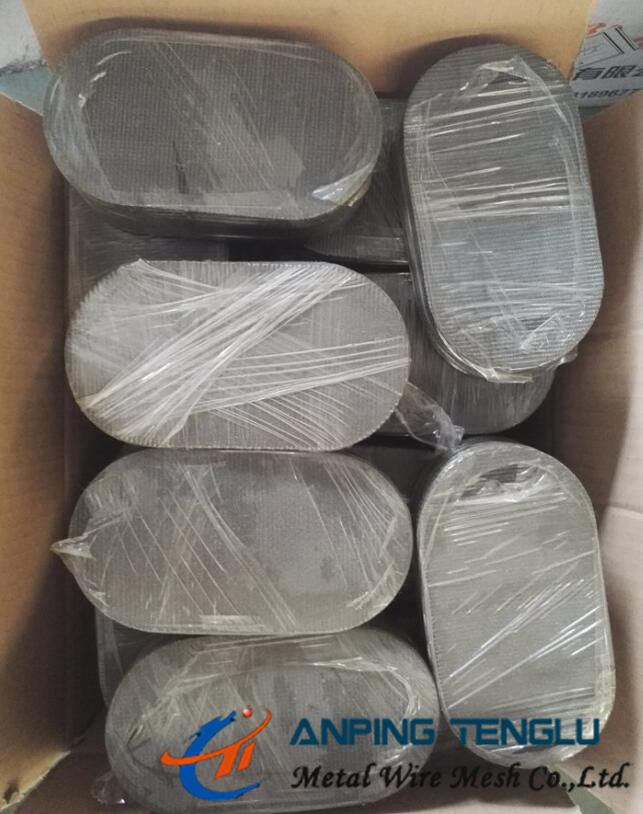

Packing:

Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
