Delta PLC Mesh Size 2.4*6m CNC Reinforced Rebar Mesh Welding Machine

Delta PLC mesh size 2.4*6m CNC Reinforced Rebar Mesh Welding Machine

Introduction of Concrete Reinforced Rebar Mesh Welding Machine

Reinforced Rebar Mesh Welding Machine automatically welds steel wires into mesh for construction. Controlled by PLC, it precisely clamps and welds wire intersections using electric current and pressure. The machine continuously pulls and cuts mesh for efficient production. It features high welding speed, accurate sizing, energy-saving operation, and easy touch screen control, supported by servo motors and air cylinders for stable performance.

Features of Concrete Reinforced Rebar Mesh Welding Machine

1. Special steel tube enables easy line wire feeding; servo motor sends line wires further; SMC cylinders auto-clamp; slot tunnels lift to protect electrodes.

2. Cross wire feeder with 1T capacity uses motor & reducer for bulk feeding; servo motor ensures precise, stable wire falling with big torque.

3. Mesh pulling is driven by servo motor with reducer, SMC cylinders control hook lift, and PLC adjusts wire spacing via touch screen.

4. PLC control system ensures precise, automated operation of the entire machine, allowing easy parameter setting, real-time monitoring, and stable performance.

Advantages of Reinforced Rebar Mesh Welding Machine

1. The Line Wires Automatic Feeding Device is to automatically send the manually threaded well line wires to the welding electrode position of the main mesh welding machine;
2. The single power of the soldering resistance transformer is 200KVA, installed with cooling water circulation and to prevent the transformer from burning ou and greatly prolong the machine usage life;
3. The cross wire feeding device which can send the pre-cut steel wires into the welding electrode position of mesh welding machine according to the welding requirements,can store about 1000kgs of pre-cut cross wires;
4. Pulling mesh device is to pull the welded cross wires out of the mesh according to the parameters set by the program, and according to the length of the mesh, it can realize multiple reciprocating pulling mesh, until the whole mesh is completely pulled out;

Technical Parameters of Reinforced Rebar Mesh Welding Machine

Applications of Reinforced Rebar Mesh Welding Machine

Steel mesh welding machines are widely used in construction projects such as concrete structure reinforcement, road and bridge construction, tunnel and subway construction, prefabricated component manufacturing, industrial plant and warehouse construction, and water conservancy protection facilities, helping to efficiently produce high-quality steel mesh.

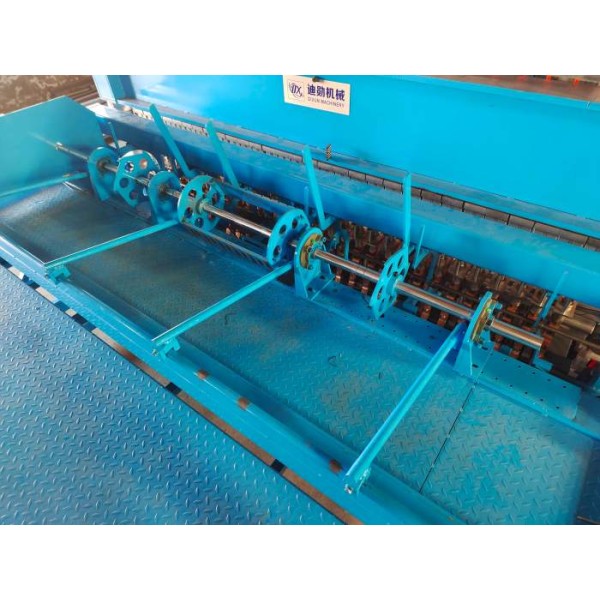

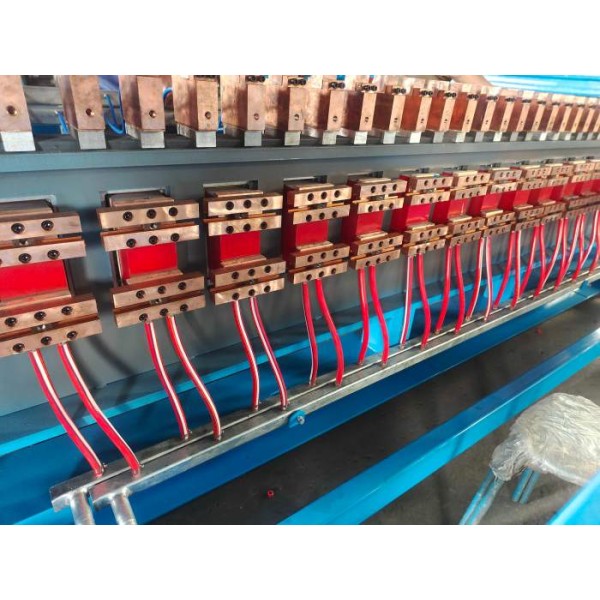

Photos of Reinforced Rebar Mesh Welding Machine

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
