Modular Electrical Transformer Training Kit with Comprehensive Safety Protection for Hands-on Vocational Training

Modular Electrical Transformer Training Kit with Comprehensive Safety Protection for Hands-on Vocational Training

Modular Electrical Transformer Training Kit with Comprehensive Safety Protection for Hands-on Vocational Training
Modular Electrical Transformer Training Kit with Comprehensive Safety Protection for Hands-on Vocational Training
Categories Electrical Training Equipment
Model Number: RM-F104
Relative Humidity: <85% (25℃)
Electric Powered: Yes
Design: Modular
Power Supply: AC 3*220V±10%, 50Hz
Equipment Weight: ≤150 kg
Training Projects: 6
MOQ: 1
Transformer Type: Single-phase and three-phase
Brand Name: RUIMU
Weight: ≤150 kg
Price: R 72 170,95-74 157,30
Material: Metal
Working Temperature: -10℃～+40℃
Power Consumption: ≤1kVA
Altitude: <4000m
Color: White outer frame, fine white wrinkles on the panel
Safety Protection: Comprehensive
Place of Origin: Henan, China
Dimensions: 1230 * 750 * 1750 mm
Contact Now
Company Info.
Henan Ruimu Intelligent Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Modular Electrical Transformer Training Kit with Comprehensive Safety Protection for Hands-on Vocational Training

Product Description

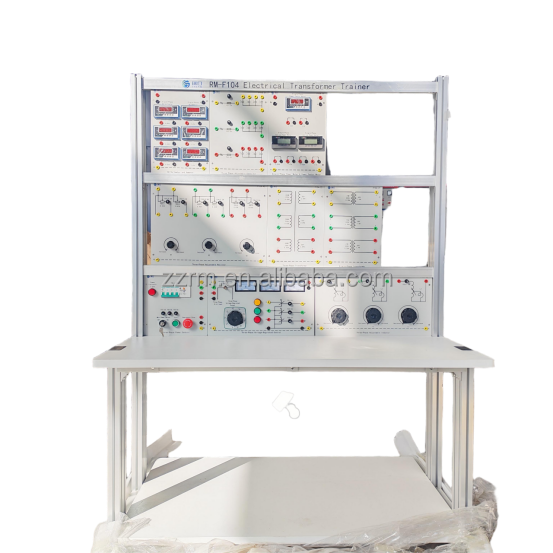

RM-F104 Electrical Transformer Trainer

The RM-F104 electrical transformer trainer is a teaching and training device specifically designed for vocational schools'
electrical engineering majors and power company employee skills training . It can complete various training projects including transformer structure recognition, turns ratio testing, no-load testing, load testing, and short-circuit testing. This equipment adopts a modular design, has comprehensive safety protection, and is easy to operate, providing a clear demonstration of the transformer's working principles and operating characteristics. This training platform aims to meet the needs of power transformer operation training, covering single-phase and three-phase characteristics, parameter measurement, and other training methods.

Experimental Projects

1. Measuring the transformation ratio and parameters of single-phase transformer through no-load and short-circuit tests.
2. Drawing the t-type equivalent circuit diagram based on the parameters measured from no-load and short-circuit tests.
3.Measuring the operating characteristics of single-phase transformer through resistive/inductive/capacitive load tests.
4. Parallel operation of single-phase transformers (polarity identification, parallel connection of two transformers).
5. Identification of high/low voltage windings of three-phase transformer, measurement of primary/secondary polarity.
6. Measuring the transformation ratio and parameters of three-phase transformer through no-load and short-circuit tests.
7. Three-phase transformer Y-Y12 connection mode and its voltage vector diagram.
*If you need more information,please contact us to obtain it.
Product Parameters
Working environment:
Temperature -10℃～+40℃, relative humidity <85% (25℃), altitude <4000m;
Power supply:
AC 3*220V±10%, 50Hz; Power consumption: ≤ 1kVA ;
External dimensions:
1230 * 750 * 1750 mm;
Equipment color:
White outer frame, fine white wrinkles on the panel;
Equipment weight:
≤ 150 kg;
Company Profile
Henan Ruimu Intelligent Technology Co., Ltd.

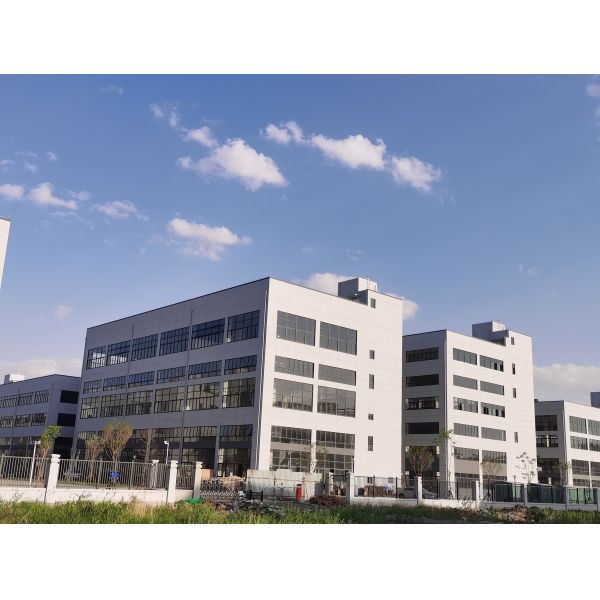

Henan Ruimu Intelligent Technology Co., Ltd. was established in 2018 and is located in Zhengzhou, Henan Province, China. We are a national high-tech enterprise specializing in the research, development, production, and sales of educational training equipment and power electronics teaching instruments.
Our products cover training equipment for electrical engineering, PLC technology, pneumatic and hydraulic transmission,

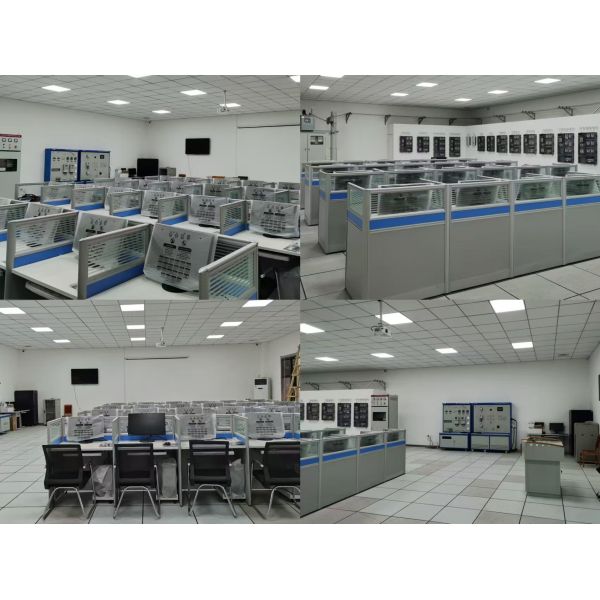

automotive, and electrical and electronics. We serve a wide range of applications in university laboratories, vocational training institutions, and scientific research projects, meeting the application needs of customers in various teaching scenarios.
We have an independent R&D and design team and hold over 40 valid intellectual property rights. We can customize comprehensive, integrated solutions including equipment configuration, technical support, and teaching adaptation to meet the needs of global customers. We have established long-term and in-depth partnerships with China State Grid Corporation (SGCC), China Southern Power Grid Co., Ltd. (CSG), and numerous universities, continuously delivering high-quality solutions for high-end technical education. We have also been recognized by the Chinese government as a national high-tech enterprise. Furthermore, we have obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification.

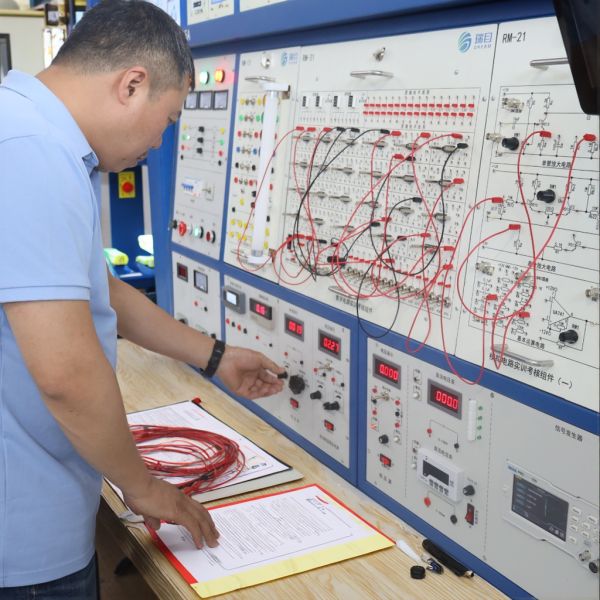

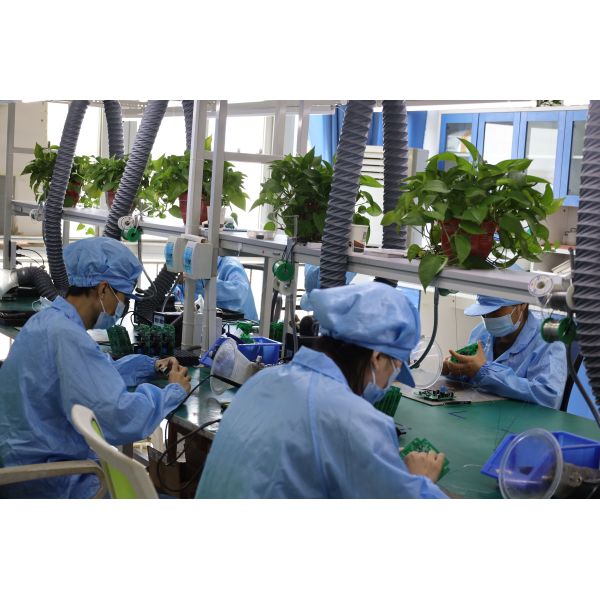

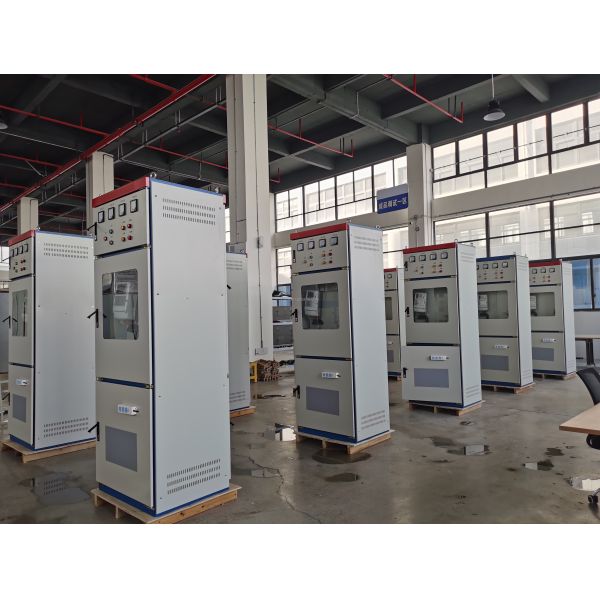

R&D and Production
Packing&Delivery

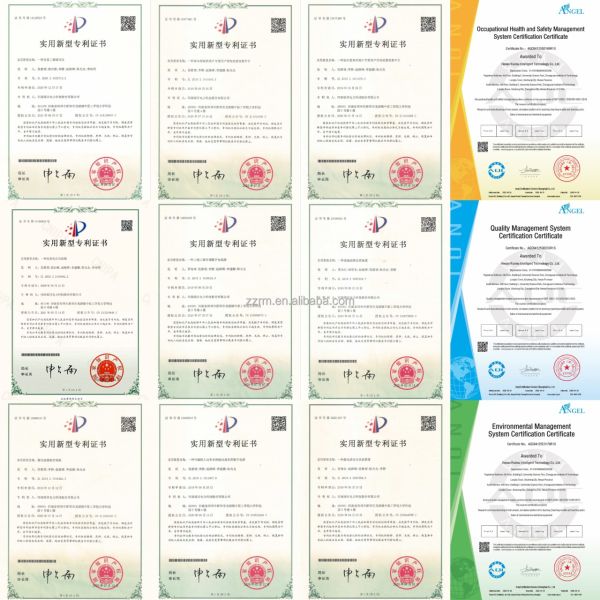

Certifications
FAQ

Q: What is your quality control process?

A: We enforce a rigorous 4-stage quality inspection system:
Supplier qualification audit;
Full inspection of raw materials;
Real-time production monitoring;
Comprehensive finished product performance testing.

Q: Do you support customized product development?

A: Absolutely! We offer end-to-end customization services from design, prototyping, to mass production.

Q: How long is your delivery time ?

A: Depends on product quantity and the actual demand.Please check with our sales team.

Q: Do you offer aftersales support ?

A: Yes,of course, We will provide technical documentation and install video.The equipment parts are easy to replace and our techincal team can provide online or remote support if customer request.

Q: How to have exclusive sales rights of RUIMU ?

A: Place order to RUIMU, when the order amount reach certain level, RUIMU and customer will negotiate about exclusive rights.Or Send your company profile to RUIMU, after RUIMU evaluation, start from general agents and gradually become exclusive agent.
