| Categories | High Pressure Hydraulic Hose |
|---|---|
| MOQ: | 1 Meter |
| Price: | US$ 1 Meter |
| Payment Terms: | L/C, T/T |
| Brand Name: | JIAYAO/RUNXI/OEM/ODM |
| Model Number: | EN 856 4SP/4SH |
| Certification: | ISO9001:2008 |
| Place of Origin: | China |
| Material: | Nitrile Rubber |
| Capability: | Rubber Oil Hose |
| Product Name: | Wire Spiral Hydraulic Hose |
| Application: | Oil Cooling System |
| Standard: | En856 4sh/En856 4sp |
| Color: | Black |
| Company Info. |
| Jiayao Co., Ltd. |
| View Contact Details |
| Product List |

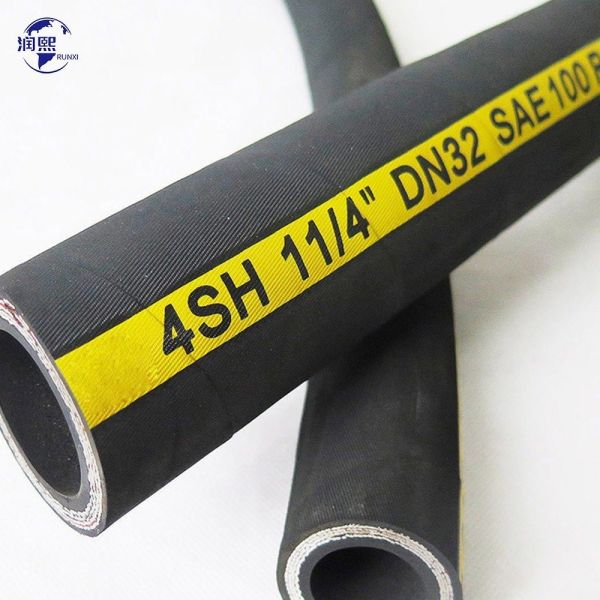

EN856 4SH Wire Spiral Hydraulic Hose:
Features:
◆ work well in conveying oils
◆ resistant to abrasion, corrosion and oil
◆ resistant to high pressure
◆ corrosion, abrasion, weather and ozone resistant synthetic rubber
and the appearance is cloth impression rubber.
This hose can be used in construction, machine tool and agriculture
field.
E.g. Mine hydraulic fluid, oil exploration, crane, forging
metallurgy, mining equipment, ships, injection molding machinery,
agricultural machinery and various machines tools.etc.
SIZE | SIZE | I.D | W.D | O.D | W.P | P.P | B.P | min B.R | W.T | |||||||
| mm | Inch | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| 19 | 3/4 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33.0 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 11.02 | 280 | 1.70 |
| 25 | 1 | 25.0 | 26.4 | 34.4 | 36.0 | 37.5 | 39.9 | 38 | 5510 | 76 | 11020 | 152 | 22040 | 13.39 | 340 | 2.50 |
| 31.5 | 1-1/4 | 31.4 | 33.0 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 4710 | 65 | 9425 | 130 | 18850 | 18.11 | 460 | 3.00 |
| 38 | 1-1/2 | 37.7 | 39.3 | 47.8 | 49.8 | 51.9 | 55.1 | 29 | 4205 | 58 | 8410 | 116 | 16820 | 22.05 | 560 | 3.60 |
| 51 | 2 | 50.4 | 52.0 | 62.2 | 64.2 | 66.5 | 69.7 | 25 | 3625 | 50 | 7250 | 100 | 14500 | 27.56 | 700 | 5.00 |
EN856 4SP Wire Spiral Hydraulic Hose:
This hose shall consist of an inner tube of oil resistant synthetic
rubber; four spiral plies of steel wire wrapped in alternating
directions, and an oil and weather resistant synthetic rubber
cover.
This hose can be used in construction, machine tool and agriculture
field.
E.g. Mine hydraulic fluid, oil exploration, crane, forging
metallurgy, mining equipment, ships, injection molding machinery,
agricultural machinery and various machines tools.etc.
◆ resistant to abrasion and corrosion
◆ perfectly resistant to high pressure
◆ resistant to abrasion, corrosion, cut, weather, ozone, oil and
aging
◆ longer service life
公制 规格 SIZE | 英制 规格 SIZE | 内 径 I.D | 增强层直径 W.D | 外 径 O.D | 最大 工作压力 W.P | 试验压力 P.P | 最小 爆破压力 B.P | 最小 弯曲半径 min B.R | 重量 W.T | |||||||
| 最小 | 最大 | 最小 | 最大 | A 型 | ||||||||||||
| mm | Inch | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| 6.3 | 1/4 | 6.2 | 7.0 | 14.1 | 15.3 | 17.1 | 18.7 | 45 | 6525 | 90 | 13050 | 180 | 26100 | 5.91 | 150 | 0.64 |
| 10 | 3/8 | 9.3 | 10.1 | 16.9 | 18.1 | 20.6 | 22.2 | 44.5 | 6450 | 89 | 12905 | 178 | 25810 | 7.09 | 180 | 0.75 |
| 12.5 | 1/2 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 41.5 | 6020 | 83 | 12035 | 166 | 24070 | 9.06 | 230 | 0.89 |
| 16 | 5/8 | 15.5 | 16.7 | 23.0 | 24.6 | 27.4 | 29.0 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 9.84 | 250 | 1.10 |
| 19 | 3/4 | 18.6 | 19.8 | 27.4 | 29.0 | 31.4 | 33.0 | 35 | 5075 | 70 | 10150 | 148 | 21460 | 11.81 | 300 | 1.50 |
| 25 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 13.39 | 340 | 2.00 |
| 31.5 | 1-1/4 | 31.4 | 33.0 | 45.0 | 47.0 | 49.2 | 52.4 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 18.11 | 460 | 3.00 |
| 38 | 1-1/2 | 37.7 | 39.3 | 51.4 | 53.4 | 55.6 | 58.8 | 18.5 | 2380 | 37 | 5365 | 74 | 10730 | 22.05 | 560 | 3.40 |
| 51 | 2 | 50.4 | 52.0 | 64.3 | 66.3 | 68.2 | 71.4 | 16.5 | 2390 | 33 | 4785 | 66 | 9570 | 25.98 | 660 | 4.35 |



|
