High-Strength Drum Gear Coupling with Non-Standard Customization and CNC Machining for Heavy Machinery

Categories	Metal Work Accessories
Brand Name:	WeSeW
Model Number:	CNC0184
Certification:	CE, ISO9001/UL
Place of Origin:	China
MOQ:	1pcs
Price:	US$5~US$50 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month
Delivery Time:	10-20 working day
Packaging Details:	Wooden Case
OEM/ODM:	OEM ODM CNC Milling Turning Machining Service
Material Capabilities:	Aluminum, Brass, Bronze, Copper, Hardened Metals
Application:	Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Standard:	DIN, ASTM, GOST, GB, JIS, ANSI, BS
CNC Machining or Not:	CNC Machining
Micro Machining or Not:	Micro Machining
Processing Method:	Customer′s Engineering Drawing

Contact Now

Add to Cart

Company Info.

Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

High-Strength Drum Gear Coupling with Non-Standard Customization and CNC Machining for Heavy Machinery

Custom Gear Shaft Gear Drum Couplings High-Strength Drum Gear Flexible Couplings Machinery Equipment Components Non-Standard Customization

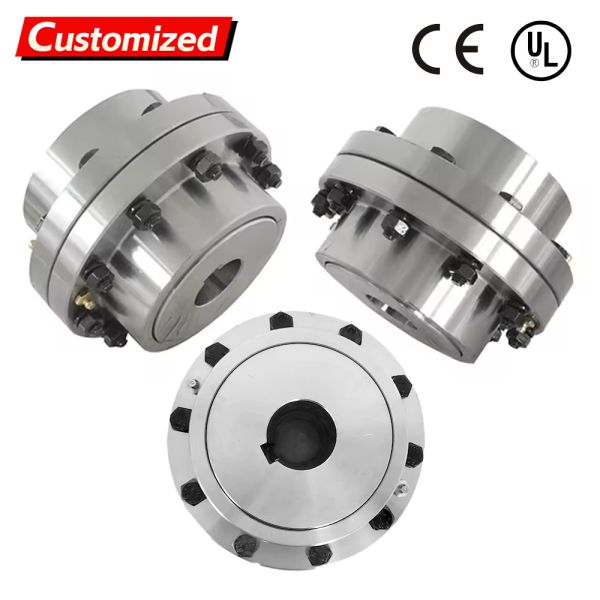

Drum Gear Coupling

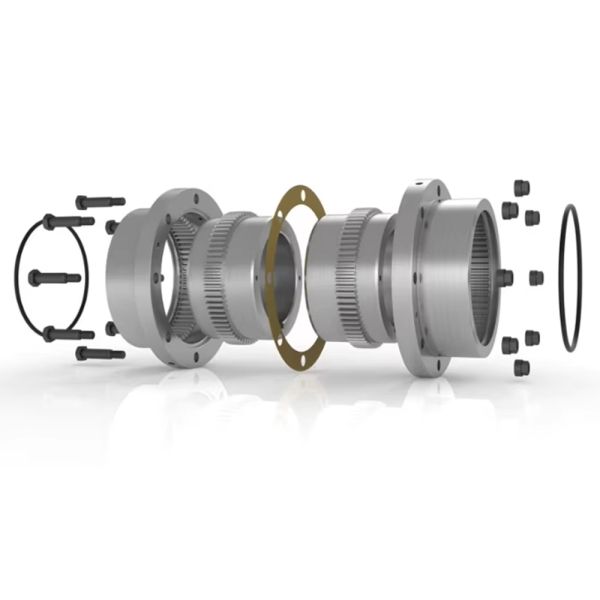

Drum Gear Coupling,It is composed of two drum shaped outer gear
sleeve and a pair of straight teeth inner gear ring and other
parts. The torque is transmitted by the meshing of the inner and
outer teeth, and the relative deviation of the two transmission
axes is compensated by the swing of the axis of the inner ring of
the straight teeth by the drum shaft sleeve (called angular
displacement). The greater the drum degree in the tooth length
direction, the greater the angular displacement, up to 6 ",
generally recommended 1°30' -3°(sample product according to 1°30'
design).Due to the drum degree of the tooth length direction, the tooth
pair contact is better, so the drum gear coupling has the
characteristics of large transmission capacity, large angular
displacement, smooth transmission, high efficiency, long life and
so on. Widely used in metallurgical machinery, heavy machinery,
mining machinery, lifting machinery, transport machinery and other
transmission.

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing
Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,
Restaurant, Home Use, Retail, Food Shop, Printing Shops,
Construction works , Energy & Mining, Food & Beverage Shops,
Advertising Company
Material
Steel
Standard or Nonstandard
Standard
Structure
Gear
Bore Diameter
10MM
Maximum Speed
3 000 RPM
Rated Torque
500 N·m
Type
Gear
Customized support
OEM
Flexible or Rigid
Rigid
Product name
Flexible Couplings Coupler
Body Material
45# Steel

Product Tags:

High-Strength Gear Coupling

Non-Standard Customization Drum Gear Coupling

CNC Machining Flexible Coupling

High-Strength Drum Gear Coupling with Non-Standard Customization and CNC Machining for Heavy Machinery
