Allen-Bradley 1734-IB8 POINT I/O 8-Channel 24V DC Sinking Digital Input Module

Categories PLC Industrial Control
Brand Name: Siemens
Model Number: 1734-ib8
Certification: CE
Place of Origin: China
MOQ: 1
Payment Terms: T/T
Delivery Time: 2-3 days
Product Name: PLC Industrial Control
Part Number: 1734-ib8
Shipment: DHL
Condition: New
Lead Time: 2-3 days
Warranty: 1 year
Keywords: 1734-ib8
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Allen-Bradley 1734-IB8 POINT I/O 8-Channel 24V DC Sinking Digital Input Module

Siemens 1734-ib8 Overview

The Allen-Bradley 1734-IB8 is an 8-channel 24V DC sinking digital input module, part of the POINT I/O product family (Series C). Designed for industrial automation systems, it connects field devices (e.g., sensors, switches) to control systems via the POINT bus, supporting flexible DIN-rail mounting (requires a compatible 1734-TB/TBS base).

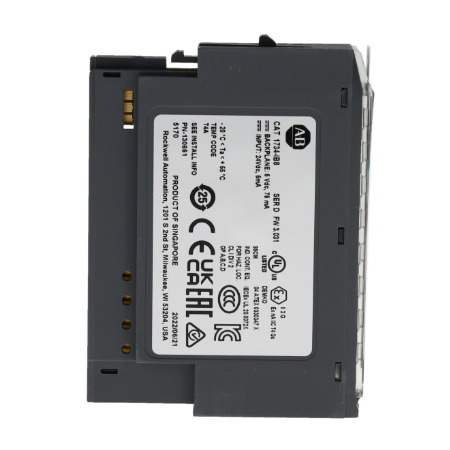

Figure 1 shows the front panel of 1734-ib8.
























Quick Specs.

Table 1 shows the Quick Specs.

ParameterValue
Module TypeDigital DC Sinking Input
Channels8
Nominal Input Voltage24V DC
Input Voltage Range10–28.8V DC
Operating Temp Range-20°C to +55°C
Mounting TypeDIN Rail
Point Bus Current75 mA (5V DC)





Detailed Specification
CategoryDetails
GeneralAllen-Bradley 1734-IB8, POINT I/O Series, Series C
Inputs8 channels, 24V DC sinking (PNP) type
Input Parameters- Voltage range: 10–28.8V DC

- On-state current: 2–5 mA (nominal 4 mA)

- Off-state voltage (max): 5V DC

- Input filter: 0.5 ms (hardware) + 0–63 ms (user-selectable)
Power- Point bus: 5V DC, 75 mA

- Power dissipation: 1.6 W (5.5 BTU/hr)
Environmental- Operating temp: -20°C to +55°C

- Storage temp: -40°C to +85°C

- Humidity: 95% non-condensing
Mechanical- Dimensions: 56×12×75.5 mm (2.2×0.47×2.97 in)

- Weight: ~31.8 g (1.12 oz)

- Mounting: DIN rail (requires 1734-TB/TBS base)
CertificationsCE, UL, ATEX, IECEx (per product label)
