YZY PC170M 17 Inch IP65 Fanless Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC

YZY PC170M 17 Inch IP65 Fanless Industrial Computer

Professional-grade embedded touch panel PC with wide temperature range and robust industrial construction for demanding environments.

M Series Overview

The M series represents professional-level industrial tablet computers featuring easy installation and maintenance. Available in sizes from 10.1 to 23.8 inches with Intel Core 4th to 14th generation processor support, these units integrate gigabit networking, 232/485 serial ports, and extensive expansion capabilities.

Key Design Features

Thickened Frame Design

Waterproof Trough Design

Pre-installed Hidden Indicator Light

Integrated Molding Snap-on Connector

Product Features

Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
24/7 Operation: Designed for continuous use with robust performance and long service life.

Product Views & Dimensions

Product Six Views

Product Dimensions

I/O Interface Configuration

I/O interface diagram for Industrial Panel PC

Extended Interface Diagram

Extensible Interface Diagram

Product Specifications

CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support	Windows 7/8/10, Linux, Android
LCD Display	17" XGA TFT (1280*800)
Active Area	338.92mm*271.34mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2RJ-45, 2USB3.0, 2USB2.0, 1RS232/485, 5*RS232, Mini-PCIe slot
Dimensions	380.92313.3455.98mm
Power Input	DC 12V (9-30V optional)
Operating Temp	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

Embedded installation step 1 - cabinet preparation

2. Tighten the long screws and nuts onto the snap fasteners.

Embedded installation step 2 - fastener assembly

3. Four clips are fixed at the threaded hole positions on both sides.

Embedded installation step 3 - clip placement

4. Tighten the long screws to secure the equipment in place.

Embedded installation step 4 - final securement

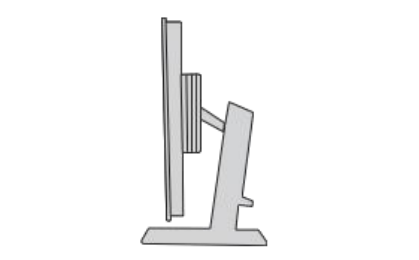

Desktop Mounting

Cantilever Mounting

Packing List

No.	Item	QTY
1	17 Inch Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 * RS232; optional 6 * RS232/RS485
3	USB	Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
Do not place in humid environments to prevent condensation and component damage.
Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
