ASTM&IEC Laboratory Vibration Test Equipment For Automotive Components

Categories Vibration Test System
Brand Name: Sinuo
Model Number: SN553- EV203HG60VT60VCSusb-2
Certification: Calibration Certificate (Cost Additional)
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 1 set per month
Delivery Time: 30 days
Packaging Details: plywood case
Sine Force: 300Kg.f peak (3KN)
Random Force: 300Kg.f rms (3KN)
Impact Force: 600Kg.f peak(6KN)
Frequency Range: 1~4500 Hz
Maximum displacement: 25 mm p-p
Maximum acceleration: 100G(980 m/s2)
Maximum load: 120 kg
Maximum speed: 2.0m/s
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ASTM&IEC Laboratory Vibration Test Equipment For Automotive Components

ASTM & IEC Laboratory Vibration Test Equipment For Automotive Components
Product Overview

Vibration testing is essential for predicting product reliability in real-world environments. Whether you are testing automotive components, aerospace systems, hardware, or consumer electronics, our system helps you validate mechanical integrity under sine, random, and shock conditions.

Sinuo provides complete exciter and control solutions, supporting global standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Do you need to test battery packs, PCBs, or complete assemblies? This system handles vertical and horizontal vibration with high precision.
ASTM IEC Laboratory Vibration Test Equipment for automotive component testing
Technical Specifications
SpecificationValue
Maximum sinusoidal excitation force300Kg.f peak (3KN)
Maximum Random Exciting Force300Kg.f rms (3KN)
Maximum impact excitation force600Kg.f peak (6KN)
Frequency Range1~4500 Hz
Amplitude40mm p-p
Maximum displacement25 mm p-p
Maximum speed2.0m/s
Maximum acceleration100G (980 m/s²)
Maximum load120 kg
Vibration isolation frequency2.5 Hz
Moving coil diameterФ150 mm
Moving coil weight2.8kg
Screw on the table13×M8
Flux leakage<10gauss
Equipment size750Lmm x 560Dmm x 670mm (Vertical Table)
Equipment weight600Kg
System Components
ComponentDescription
Vibration GeneratorA03S15 electromagnetic exciter with dual-bearing guidance
Power AmplifierLA3K digital switching (IGBT, 3 kVA)
ControllerVCSusb-2 with 2 input / 1 output channels
Expansion TablesVT60 vertical (600×600 mm) + HG60 horizontal oil film slide
Cooling FanB751 with silencer (11 m³/min)
Sensors2 × LTE C04A07 accelerometers (50 mV/g, 1-8000 Hz)
Control PCIndustrial computer, bilingual software
AccessoriesCables, tool kit, clamps, manuals, calibration certificate
Digital Vibration Controller Functions
Random Control

According to the user-defined power spectrum diagram (made by the target spectrum editor), random control adopts the method of transfer function equalization. Continuously output Gaussian random signals to quickly implement real-time and accurate multi-channel closed-loop control. Built-in adaptive control algorithms react quickly to system nonlinearities, resonant frequency, and load changes.

  • Frequency range: 0~4800Hz, extendable to 18750Hz
  • Resolution: 100, 200, 400, 800, 1600, 3200 spectral lines
  • Control power range: >90dB
  • Control strategy: single channel control, weighted average, maximum value, minimum value
Random control vibration testing interface and spectrum analysis
Sine Control

Sine provides analog-quality sine and sine sweep signals with control over the amplitude of the sine waveform. The dwell magnitude, dwell frequency can be set, and the dwell duration can be determined by setting the time or the number of cycles of the sinusoidal signal.

  • Frequency range: 1Hz~5000Hz, expandable to 10000Hz
  • Closed loop time: 5ms
  • Harmonic distortion: <-100dB
  • Frequency sweep mode: linear frequency sweep 0~6000 Hz/min | Logarithmic sweep 0~100 Oct/min
  • Sweep direction: up, down
  • Sweep duration: can be set as the number of sweeps or test times
Sine control vibration testing waveform and interface
Classical Shock

Adopt transfer function equalization method, support half sine wave, bell wave, rectangular wave, trapezoidal wave, front peak sawtooth wave, back peak sawtooth wave, triangular wave. Users can also input pulse peak value according to their needs.

  • Pulse duration from 0.5 to 3,000mS
  • Maximum analysis bandwidth 18750Hz
  • Frame size: up to 16384
  • Meet the standards: MIL-STD-810 (US standard), ISO standard, user-defined interrupt control limit

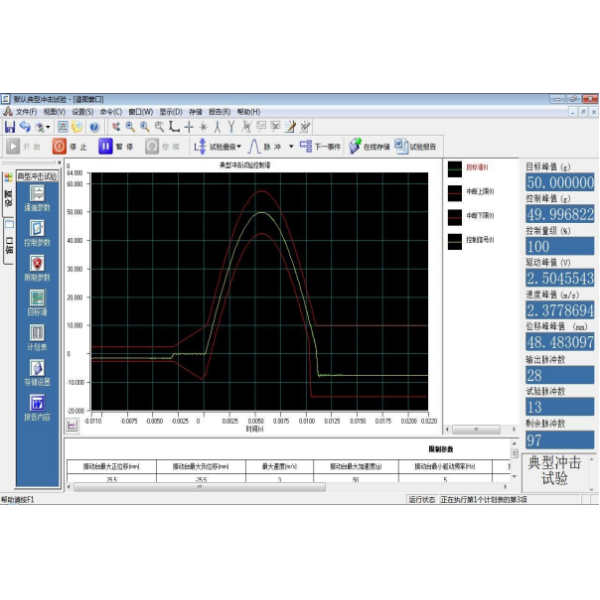

Classical shock testing waveform patterns and analysis
Complete vibration test equipment setup and laboratory environment
