Name: 600V Rated Voltage 3 Core Armoured Cable With XLPE Insulation PVC Jacket
Brand: Minfeng
Price: 0.1 USD

Home > Seals >

600V Rated Voltage 3 Core Armoured Cable With XLPE Insulation PVC Jacket

Categories	Armoured Cable
Brand Name:	Minfeng
Model Number:	armored cable
Certification:	ISO,CE,IEC,TUV,KEMA
Place of Origin:	Hebei, China
MOQ:	100
Price:	0.1-5
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week
Delivery Time:	10 Days
Productname:	Armoured Cable
Standard:	AISI, ASTM, BS, DIN, GB, JIS
Cabletype:	Armoured
Sheathmaterial:	PVC or PE
Cablesize:	Varies from 1.5mm² to 1000mm²
Conductormaterial:	Copper or Aluminum
Flameretardant:	Yes/No
Insulationmaterial:	PVC, XLPE, or Rubber

Contact Now

Add to Cart

Company Info.

Minfeng Cable Group Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

600V Rated Voltage 3 Core Armoured Cable With XLPE Insulation PVC Jacket

0.6 1kv Armoured Electrical Cable 3 Core Armored Power Cable

Product Overview

XLPE SWA PVC power supply cable armoured 3 core power cable designed for reliable power transmission and distribution in various industrial applications.

Key Specifications

Rated Voltage	0.6 kV
Size	Custom
Conductor Material	Aluminum Copper
Insulation Material	XLPE
Jacket	PVC
Application	Construction
Type	Medium Voltage
Place of Origin	Hebei, China
Model Number	YJV
Brand Name	Minfeng
Standard	IEC 60502, BS, DIN, ASTM, GB12706-2008
Certificate	ISO9001/ISO14001/OHSAS18001/CCC

Technical Details

Product Name	Copper core or aluminum core XLPE insulated PVC sheathed power cable
Rated Voltage	0.6/1kv, 1.8/3kv, 3.6/6kv, 6/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv
Standard	B/T12706-2008, GB/T12703-200, IEC60502-1-1997
Model	YJV, YJLV, YJV22, YJLV22, YJV32, YJLV32, YJV42, YJLV42
Armoured	Steel tape armored, steel wire armored, Double of galvanized steel tape or galvanized steel wire for three core power cable, Double of aluminium tape or aluminium wire for single power cable
Number of cores	Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.
Common size	1mm² to 1000mm²
Types	Ordinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type
Application	Power distribution engineering, power transmission engineering, electromechanical and hydropower installation engineering, power transmission, power supply installation system, control system, etc.

Product Description

Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across the river. YJV cables are the backbone cables in power transmission. They are usually found in urban underground passages (underground manhole covers) or buried underground.

Installation Precautions

The minimum bending radius when laying the cable is not less than 10 times the outer diameter of the cable.
YJV / YJLV cables are laid indoors, in channels and pipes, and can also be buried in loose soil, which cannot bear external forces.
The YJV22 / YJLV22 cables are laid underground and can withstand external mechanical forces, but cannot withstand large tensile forces.
Special tools should be used for cable laying, such as pay-off racks, guide rollers, etc., to prevent mechanical damage during the laying process and keep away from heat sources.
When laying the cable through the pipe, the inner diameter of the pipe should not be less than 1.5 times the outer diameter of the cable. It is forbidden to squeeze the cable when passing through the pipe. The total area of the cable should not exceed 40% of the total area of the pipe.

Product Images

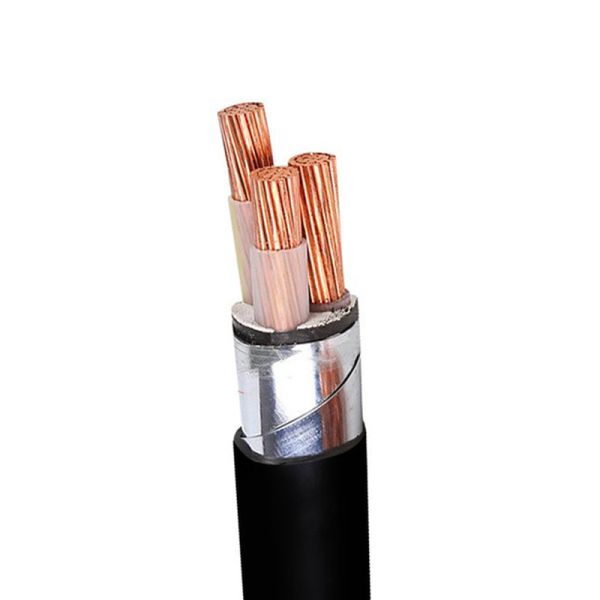

3 core armored power cable cross-section
