| Categories | Perforated Metal Wire Mesh |
|---|---|
| Brand Name: | Citti Mesh |
| Model Number: | Round Hole |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | 5-10USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | In abundant supply |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Packed with kraft paper inside and wooden box outside. |
| Material: | Mild steel or carbon steel, no painting, galvanized or PVC coated), stainless steel, aluminum, copper and brass or other materials as your request |
| Hole pattern: | There are three ways of arrangements of round holes are adopted: straight type, 60° staggered type and 45° staggered type as shown |
| Sheet thickness: | 0.4-6 mm |
| Open rate: | 15% - 18% |
| Hole size: | 0.8-25 mm |
| Pitch: | 2-34 mm |
| Company Info. |
| HEBEI CITTI MESH CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Round Hole Perforated Metal Sheet Product
Round Hole Perforated Metal Sheet For Building Facades, Interior Decoration, Ceilings, Partition Walls, Folding Screens
According to the latest surveys, most perforated sheets are produced with round holes. Why? Round roles are manufactured relatively easier with aesthetic effects. The circular die for punching sheet can last longer and easy to be manufactured which makes the round hole perforated sheet cheaper than any other perforated sheet with other hole patterns. Therefore, round hole pattern becomes the most popular shape.
Round Hole Perforated Metal Sheet Feature
Round Hole Perforated Metal Sheet Specification
| Perforated sheet specification - Round hole | |||||||||||||||
| Description | Hole Size (mm) | Pitch (mm) | Open Rate | Sheet Thickness | |||||||||||
| 0.4 mm | 0.5 mm | 0.8 mm | 1.0 mm | 1.2 mm | 1.5 mm | 2.0 mm | 2.5 mm | 3.0 mm | 4.0 mm | 5.0 mm | 6.0 mm | ||||
| R0.8 T2 | 0.80 | 2.00 | 15% | * | * | * | |||||||||
| R1 T2 | 1.00 | 2.00 | 23% | * | * | * | * | ||||||||
| R1.2 T2.25 | 1.20 | 2.25 | 26% | * | * | * | |||||||||
| R1.2 T2.5 | 1.20 | 2.50 | 21% | * | * | * | |||||||||
| R1.5 T2.75 | 1.50 | 2.75 | 27% | * | * | * | * | ||||||||
| R1.5 T3 | 1.50 | 3.00 | 23% | * | * | * | * | ||||||||
| R1.8 T3.5 | 1.80 | 3.50 | 24% | * | * | * | * | * | |||||||
| R2 T3 | 2.00 | 3.00 | 40% | * | * | * | |||||||||
| R2 T3.5 | 2.00 | 3.50 | 30% | * | * | * | * | ||||||||
| R2 T4 | 2.00 | 4.00 | 23% | * | * | * | * | * | |||||||
| R2.5 T3.5 | 2.50 | 3.50 | 46% | * | * | * | * | * | * | ||||||
| R2.5 T4 | 2.50 | 4.00 | 35% | * | * | * | * | * | * | ||||||
| R2.5 T4.5 | 2.50 | 4.50 | 28% | * | * | * | * | * | * | ||||||
| R2.5 T5 | 2.50 | 5.00 | 23% | * | * | * | * | * | * | ||||||
| R3 T5 | 3.00 | 5.00 | 33% | * | * | * | * | * | * | * | |||||
| R3 T6 | 3.00 | 6.00 | 23% | * | * | * | * | * | * | * | |||||
| R3.5 T5 | 3.50 | 5.00 | 44% | * | * | * | * | * | |||||||
| R4 T5 | 4.00 | 5.00 | 58% | * | * | * | |||||||||
| R4 T6 | 4.00 | 6.00 | 40% | * | * | * | * | * | * | ||||||
| R4 T8 | 4.00 | 8.00 | 23% | * | * | * | * | * | * | * | * | ||||
| R5 T7 | 5.00 | 7.00 | 46% | * | * | * | * | * | * | ||||||
| R5 T8 | 5.00 | 8.00 | 35% | * | * | * | * | * | * | * | * | ||||
| R5 T10 | 5.00 | 10.00 | 23% | * | * | * | * | * | * | * | * | * | |||
| R5 T2.5 | 5.00 | 25.00 | 4% | * | * | * | * | * | * | * | * | * | |||
| R6 T8.5 | 6.00 | 8.50 | 45% | * | * | * | * | * | * | * | |||||
| R6 T9 | 6.00 | 9.00 | 40% | * | * | * | * | * | * | * | * | ||||
| R6 T10 | 6.00 | 10.00 | 33% | * | * | * | * | * | * | * | * | * | * | ||
| R7 T10 | 7.00 | 10.00 | 44% | * | * | * | * | * | * | * | * | ||||
| R8 T8 | 8.00 | 11.00 | 48% | * | * | * | * | * | * | * | * | ||||
| R8 T8 | 8.00 | 12.00 | 40% | * | * | * | * | * | * | * | * | * | |||
| R8 T8 | 8.00 | 15.00 | 26% | * | * | * | * | * | * | * | * | * | |||
| R10 T13 | 10.00 | 13.00 | 54% | * | * | * | * | * | * | * | * | ||||
| R10 T14 | 10.00 | 14.00 | 46% | * | * | * | * | * | * | * | * | ||||
| R10 T15 | 10.00 | 15.00 | 40% | * | * | * | * | * | * | * | * | * | |||
| R10 T18 | 10.00 | 18.00 | 28% | * | * | * | * | * | * | * | * | * | |||
| R12 T16 | 12.00 | 16.00 | 51% | * | * | * | * | * | * | * | * | ||||
| R12 T17 | 12.00 | 17.00 | 45% | * | * | * | * | * | * | * | * | * | |||
| R15 T20 | 15.00 | 20.00 | 51% | * | * | * | * | * | * | * | * | * | |||
| R15 T21 | 15.00 | 21.00 | 46% | * | * | * | * | * | * | * | * | * | |||
| R20 T25 | 20.00 | 25.00 | 58% | * | * | * | * | * | * | * | * | * | |||
| R20 T27 | 20.00 | 27.00 | 50% | * | * | * | * | * | * | * | * | * | |||
| R20 T28 | 20.00 | 28.00 | 46% | * | * | * | * | * | * | * | * | * | |||
| R20 T30 | 20.00 | 30.00 | 40% | * | * | * | * | * | * | * | * | * | |||
| R25 T34 | 25.00 | 34.00 | 49% | * | * | * | * | * | * | * | * | * | |||
Round Hole Perforated Metal Sheet Application
Round hole perforated sheet offers the widest options of hole sizes, gauges, materials and sheet size for all types of applications. For example:
round hole perforated metal for furniture
round hole perforated metal for building facades
round hole perforated metal for architectural decoration
round hole perforated metal for tables and chairs
round hole perforated metal for partition wall

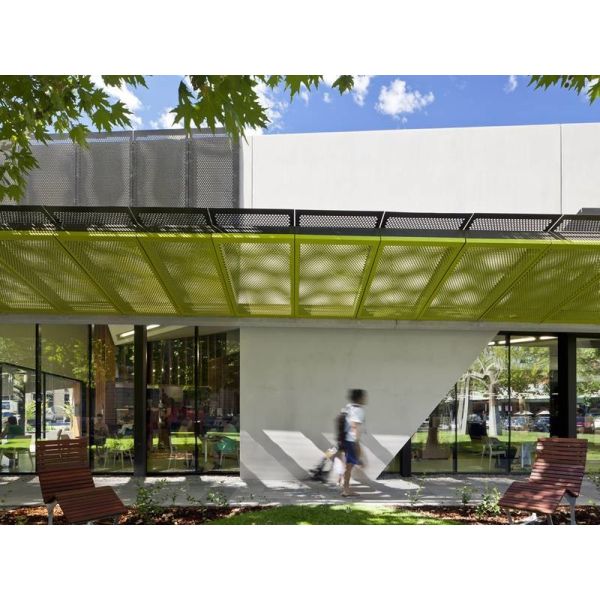

round hole perforated metal for sunshade
|
