| Brand Name: | MENSION |
| Model Number: | MS-51 |
| Certification: | CE RoHS |
| Place of Origin: | CN |
| MOQ: | 1 Set |
| Price: | Contact Us |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000 Sets Per Month |
| Delivery Time: | 2 - 7 Working Days |
| Packaging Details: | One Plywood For One Set |
| Crimping Range: | 14 - 87mm |
| Hose Size: | 1/4 - 2inch |
| Die Sets: | 10 |
| Color: | Blue |
| Max. Opening: | 30mm |
| Crimping Force: | 500T |
| Product Name: | Hose Crimping Machine |
| Application: | Workshops · Constr. Mach · Hyd. Repair · Mining Equip. |
| System Pressure: | 31.5Mpa |
| Power: | 3KW |
| Size: | 670*430*820mm |
| Weight: | 260Kg |
| Certificate: | CE RoHS |
| Wty: | 3 Year |
| Company Info. |
| Weifang Mension Machinery Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
MS-51 high pressure hose crimping machine is designed for workshop hose repair service. It features a large opening and powerful performance, capable of crimping hose fittings from 1/4" to 2" with high tensile steel wire braided construction. Engineered for tough industrial environments, this machine operates with low noise levels.
| Model | MS-51 Cable Pressing Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) Mono-phase |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |

| Die No. # | Crimping Range | Length |
|---|---|---|
| 6* | 6 ... 8mm | 35mm |
| 8* | 8 ... 10mm | 35mm |
| 10* | 10 ... 12mm | 35mm |
| 12* | 12 ... 15mm | 35mm |
| 15 | 15 ... 19mm | 60mm |
| 19 | 19 ... 23mm | 60mm |
| 23 | 23 ... 26mm | 60mm |
| 26 | 26...31mm | 60mm |
| 31 | 31 ... 36mm | 70mm |
| 36 | 36 ... 41mm | 70mm |
| 41 | 41 ... 47mm | 70mm |
| 47 | 47 ... 55mm | 80mm |
| 55 | 55 ... 63mm | 80mm |
| 63 | 63 ... 69mm | 80mm |
| 69* | 69 ... 76mm | 90mm |
• "*" indicates non-standard mold
• Customized molds are available
• Special voltages 110V, 208V, 240V, 415V are available
MS-51: Detailed Showcase
Top-tier materials manufacturing

High-precision regulator

High-precision manual/automatic operation panel

High-quality high-strength steel molds

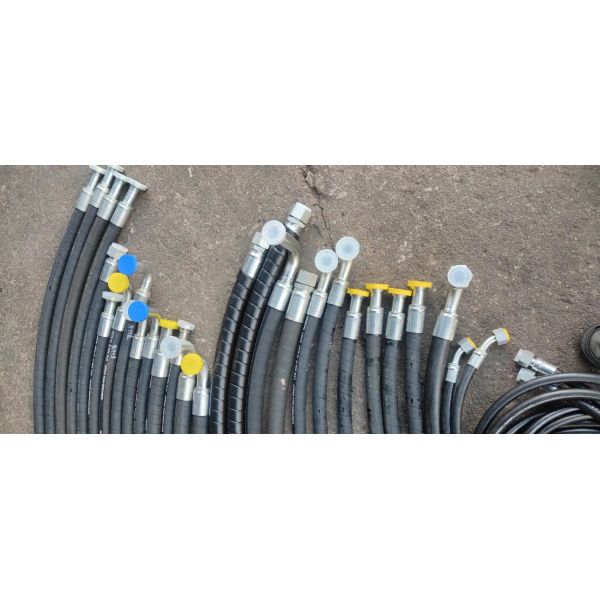

APPLICATIONS FOR HOSE ASSEMBLY MAKING

|
