CNC Control Horizontal Band Saw Machine High Accuracy Automated GSK4265

Name: CNC Control Horizontal Band Saw Machine High Accuracy Automated GSK4265
Brand: Matsumoto
Price: 5000 USD

CNC Control Horizontal Band Saw Machine High Accuracy Automated GSK4265

Categories	Band Sawing Machine
Brand Name:	Matsumoto
Model Number:	GSK4265
Certification:	CE
Place of Origin:	China
MOQ:	1
Price:	$5000-6500
Delivery Time:	15 working days
Packaging Details:	plywood case
Maximum sawing range:	650-650*650mm
Saw band line speed:	27-69m/min
Feed rate:	Hydraulic stepless speed regulation
Main motor power:	7.5kw
Hydraulic motor power:	1.5kw
Dimensions of the main machine:	360035102450mm

Contact Now

Add to Cart

Company Info.

Shandong Matsumoto Machine Tool Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

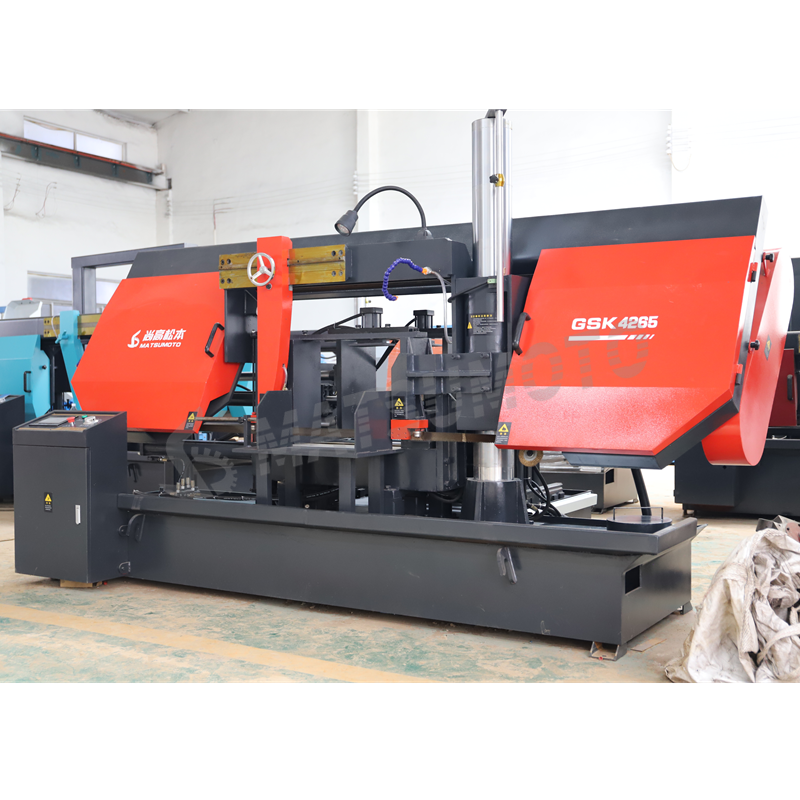

GSK4265 CNC Band Sawing Machine Precision Horizontal Sawing Machine

Description
The CNC Band Sawing Machine is a high-precision, automated metal cutting equipment integrated with computer numerical control (CNC) technology, servo drive system, and precision mechanical structure. Adopting a high-performance CNC control system, it realizes full-process automatic control of feeding, positioning, clamping, sawing, and material returning, which effectively eliminates human errors caused by manual operation and ensures consistent cutting accuracy. Equipped with a high-strength, wear-resistant band saw blade and a stable guide mechanism, the machine is capable of performing high-efficiency, high-precision cutting on various metal workpieces, including bars, pipes, profiles, and irregular parts. Its programmable parameter setting function supports flexible adjustment of cutting speed, feed rate, and cutting length, adapting to standardized, unmanned, and continuous production needs in modern metal processing, while optimizing material utilization and cutting quality.

Specification	GSK4265
Maximum sawing range	650-650*650mm
Saw band line speed	27-69m/min
Band saw blade specifications	customize
Feed rate	Hydraulic stepless speed regulation
Main motor power	7.5kw
Hydraulic motor power	1.5kw
Cooling the motor power	0.125kw
Single feeding stroke	500mm
Feeding accuracy	≤0.2mm
Main drive mode	Worm gear reducer
Clamping method	Hydraulic double jaw clamping
Band tensioning method	Hydraulic tensioning
Sawdust clean-up method	Wire brushed
Dimensions of the main machine	360035102450mm

Advantages

CNC control system ensures high cutting precision and stable dimensional accuracy
High automation reduces manual operation and improves production efficiency
Stable sawing performance, low material loss and high cutting quality
Simple operation, programmable and compatible with various cutting requirements
Strong durability, low failure rate and suitable for long-term continuous work

	TENSION ADJUSTMENT The band saw tension can be adjusted according to different working conditions to improve sawing efficiency.
	REDUCER Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw.
	CLAMPING METHOD The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm.

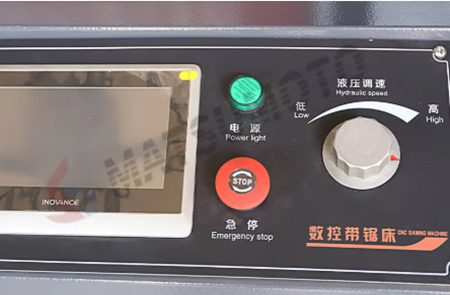

	DELTA PLC OPERATION Taiwan delta operating system, east touch operation, high efficiency, full automatic feeding.
