| Categories | DC Planetary Gear Motor |
|---|---|
| Model Number: | FT-17PGM180 |
| Brand Name: | FUTENG |
| Place of Origin: | China |
| MOQ: | 1000 Pieces |
| Price: | Negotiable |
| Certification: | CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 8000 0000 |
| Delivery Time: | 15-30 days/Negotiable |
| Packaging Details: | Standard Export Carton & Customzied |
| Continuous Current(A): | about 150-2500mA |
| Efficiency: | 50-95% |
| Rated Power: | 1-48w |
| Rated voltage: | 3-24v, 12/3/24/5V |
| Speed Rpm: | 2rpm-500rpm |
| Torque: | 1-50kgf.cm, 2.1/2.8/3/4 |
| Type: | Gear Motor |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home |
| Warranty: | 3 months ~ 1 year |
| Geared motor model: | FT-17PGM180 |
| Gear box size: | 17mm |
| Rotating speed: | 12000/12900/10200/5000(rpm) |
| Current: | 20/35/45/96(mA) |
| Output: | 0.2/0.25/0.35/0.52(w) |
| Name: | DC Planetary Gear Motor |
| Company Info. |
| Dongguan Futeng Motor Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

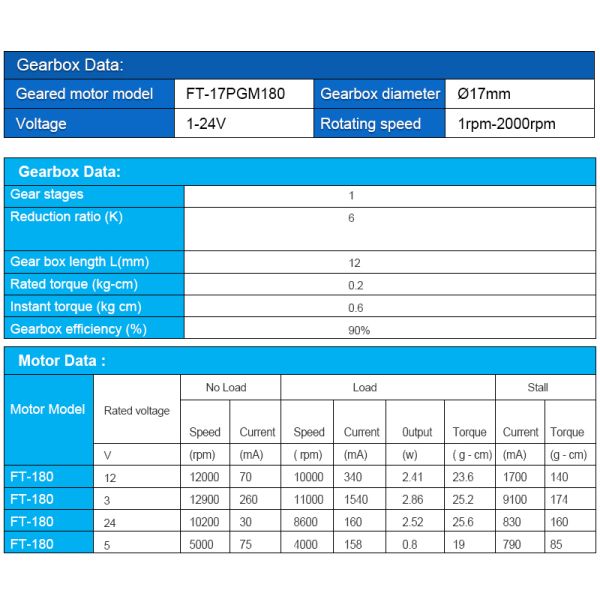

Gearbox Data: | ||
Gear stages | 1 | |
Reduction ratio (K) | 6 | |
Gear box length L(mm) | 12 | |
Rated torque (kg·cm) | 0.2 | |
Instant torque (kg·cm) | 0.6 | |
Gearbox efficiency (%) | 90% | |
Motor Data | ||||||||||||||||||
Motor Model | No Load | Load | Stall | |||||||||||||||
Motor Model | Rated Voltage | Speed | Current | Speed | Current | Output | Torque | Current | Torque | |||||||||
V | (rpm) | (mA) | (rpm) | (mA) | (w) | (g·cm) | (mA) | (g·cm) | ||||||||||
FT-130 | 12 | 12000 | 70 | 10000 | 340 | 2.41 | 23.6 | 1700 | 140 | |||||||||
FT-130 | 3 | 12900 | 260 | 11000 | 1540 | 2.86 | 25.2 | 9100 | 174 | |||||||||
FT-130 | 24 | 10200 | 30 | 8600 | 160 | 2.52 | 25.6 | 830 | 160 | |||||||||
FT-130 | 5 | 5000 | 75 | 4000 | 158 | 0.8 | 19 | 790 | 85 | |||||||||
|
