High Speed Pick and Place Machine , Fully Automatic Smd Led Production Line for Pcb Fabrication Manufacturing

Categories	Pick And Place Machine
Place of Origin:	China
Brand Name:	RD
MOQ:	1
Price:	$22,000
Machine Type:	Pick and Place Machine
Product name:	led pick and place machine price
Name:	SMD Pick and Place Machine
Function:	surface mount equipment
Usage:	SMT Production Assembly Line
Marketing Type:	PCB Manufacturing Line
Application:	SMT LED Assembly Line

Contact Now

Add to Cart

Company Info.

Shenzhen Hongxinteng Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

High Speed Pick and Place Machine , Fully Automatic Smd Led Production Line for Pcb Fabrication Manufacturing

Product Introduction

Machine features Each group of mounting heads independently controls the rotation angle, resulting in higher mounting eﬃciency. Each nozzle corresponds independently to a 1 megapixel ﬂying camera for visual correction. Three section ﬁxed track transmission, higher eﬃciency for mounting small-sized and fewer PCB boards. Suitable for: bulb, projection light, power supply, ceiling light, backlight, etc.

Work video

Product Parameters

Model No	RD-ZT8VA	RD-ZT10VA
Number of mouning heads	8 heads	10 heads
Feeder Station	26 stations	26 stations
Oplinal plapement speed	50000 chips/h	60000 chips/h
Machine weight	Approximately 1350KG	Approximately 1600KG
Heght of Attachable Components	<8mm
Maximum mounting plate size	800mm x 500mm (segmented patch,each segment can be pasted with 400mm) 1200mm × 500mm (segmented patch,each segment can be pasted with 600mm)
Edemal dimensions	1350mm long x1350mm wide×15D0mm high (Apply 800mm×500mm model) 1200mm long*1500mm wide×15D0mm hig (Apphy 1200mm×500mm model)
Substrate transfer method	Three section track automatic transmission
Machine Syslem	Independenty deweloped operating system
Positioning method	Visual automatic MARK points
Correction of suction eror by flying swatter	Each nozlze corresponds independently to a 1 megapixel flying camera visyal correction
Programming method	Visual camera positioning programming / Excel format file coordinate import
Input power /voltage	AC220V /50HZ (opereting power approximately 2KW/H)
Mountable components	Beads, resistors, capacitors, ICs, terminals, diodes, etc. above 0603

Product Details

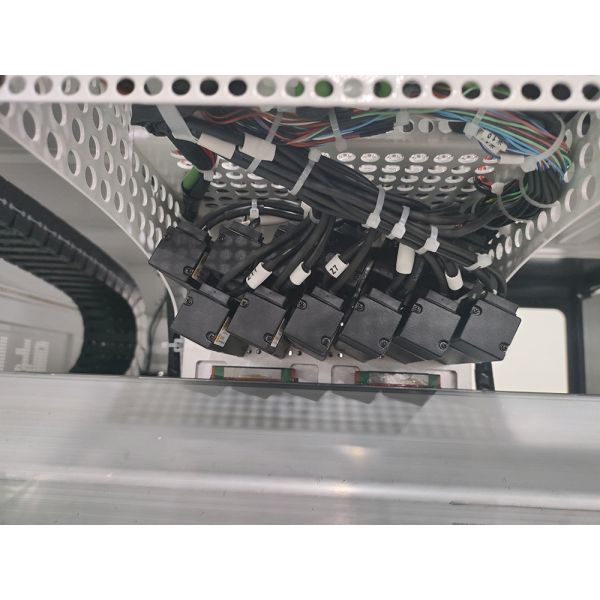

Each placement head is equipped with an independent camera motor

(i.e., an independent lens/zoom component in the "on-the-fly alignment" vision system), each with its own independent camera motor, making it one of the "ultimate configurations" for high-end precision electronics manufacturing. Through a revolutionary design of hardware parallelization, it solves the fundamental contradiction between efficiency and precision that cannot be resolved at the software level. Parallel vision processing: This is the most significant advantage. The 12 placement heads can simultaneously and independently capture images and perform recognition calculations of the components they have picked up while in motion. No waiting, no queuing.

True "on-the-fly alignment": The component recognition process is 100% synchronized with the movement of the placement head. As
the placement head moves from the pick-up position to the PCB placement position, its built-in camera completes the component
recognition, positioning, and angle calculation along the way. Upon reaching the target point, placement occurs immediately,
achieving "zero" visual waiting time.

8 PLACEMENT HEAD

SIndependently control the rotation Angle, 50000chip/h

10 PLACEMENT HEAD

SIndependently control the rotation Angle, 60000chip/h

Certificate

Application

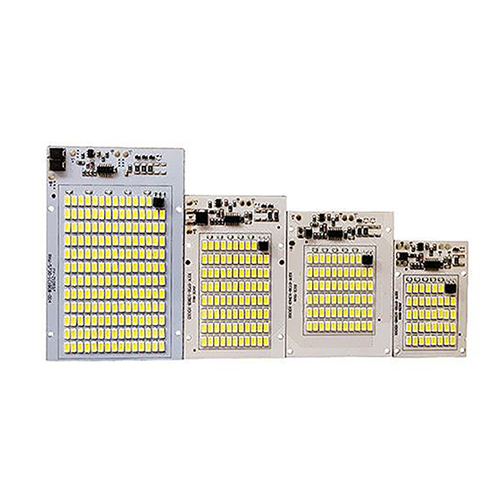

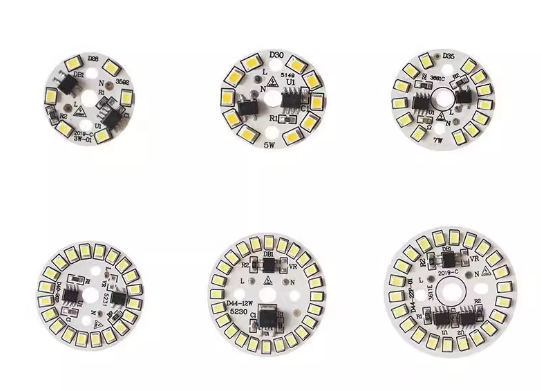

Suitable for: ﬂuorescent tubes, soft light strips, ﬂat panel lights, outdoor lights, ceiling lights, bulbs, terminals, etc.
