T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling

Categories Button Drill Bit
Brand Name: MIROC
Model Number: T38-76mm
Certification: ISO
Place of Origin: china
MOQ: 1
Supply Ability: 3000
Delivery Time: 20-30
Product: T38-76mm Button bit
Button Shape: Ballistic, Spherical, Composite buttons
Application: Bench drilling, underground production drilling, long hole drilling
Body: Retrac Skirt, Standard Skirt
Key Words: Rock Drilling Bit
Usage: Rock Drilling
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling

T38-76mm Tungsten Carbide Threaded Button Bit
Product Description
Description: Threaded button bit
Raw material: Alloy steel and tungsten carbides
Thread: R25, R28, R32, R35, R38; T38, T45, T51, T60, ST58, ST68
Face: Flat front, drop center
Diameter: 35mm-127mm
Carbide: Ballistic, conical, spherical
Color: Customized
Application: Used to drill deep holes in underground mines, open pit mines, and tapholes
Customization: Thread, diameter, buttons number, button type, and flushing holes can be customized according to client's requirements and drawings
Key Features
  • Premium material with high-quality alloy steel and tungsten carbide from internationally renowned brands
  • Advanced heat treatment technology for high wear resistance
  • High toughness and wear resistance
  • Rich production experience and market feedback data from clients
  • Large capacity, stable quality, short lead time, competitive pricing
Specifications of Button Bits (T38)
Bit Dia. (mm)Buttons and Size (mm)Flushing HoleWeight (kg)
643*10, 1*10 (Front)
6*11 (Gauge)
3 (Front)1.7
703*10, 1*10 (Front)
6*12 (Gauge)
3 (Front)1.8
763*11, 1*11 (Front)
6*12 (Gauge)
3 (Front)
1 (Side)
2.6
893*11, 2*11 (Front)
6*13 (Gauge)
3 (Front)
1 (Side)
3.3

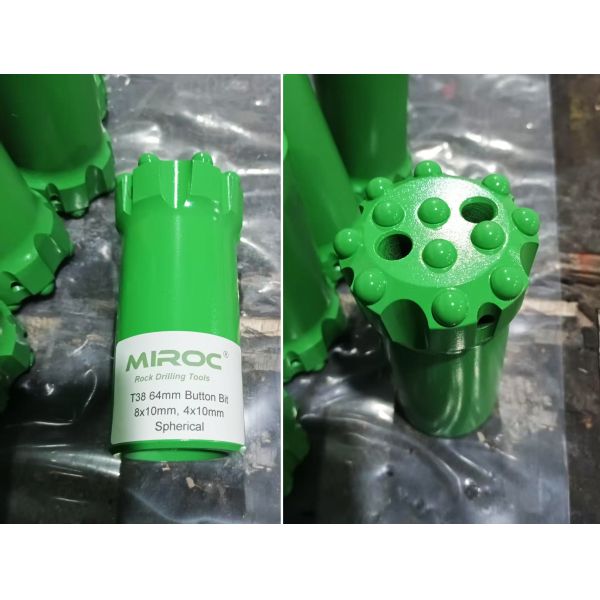

Tungsten carbide threaded button bit close-up Threaded button bit side view Threaded button bit front view Threaded button bit in packaging
