Brand Name: | flysafe |
Model Number: | ZR10 |
Place of Origin: | Guangdong, China |
MOQ: | 1 |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Delivery Time: | 5-8 work days |

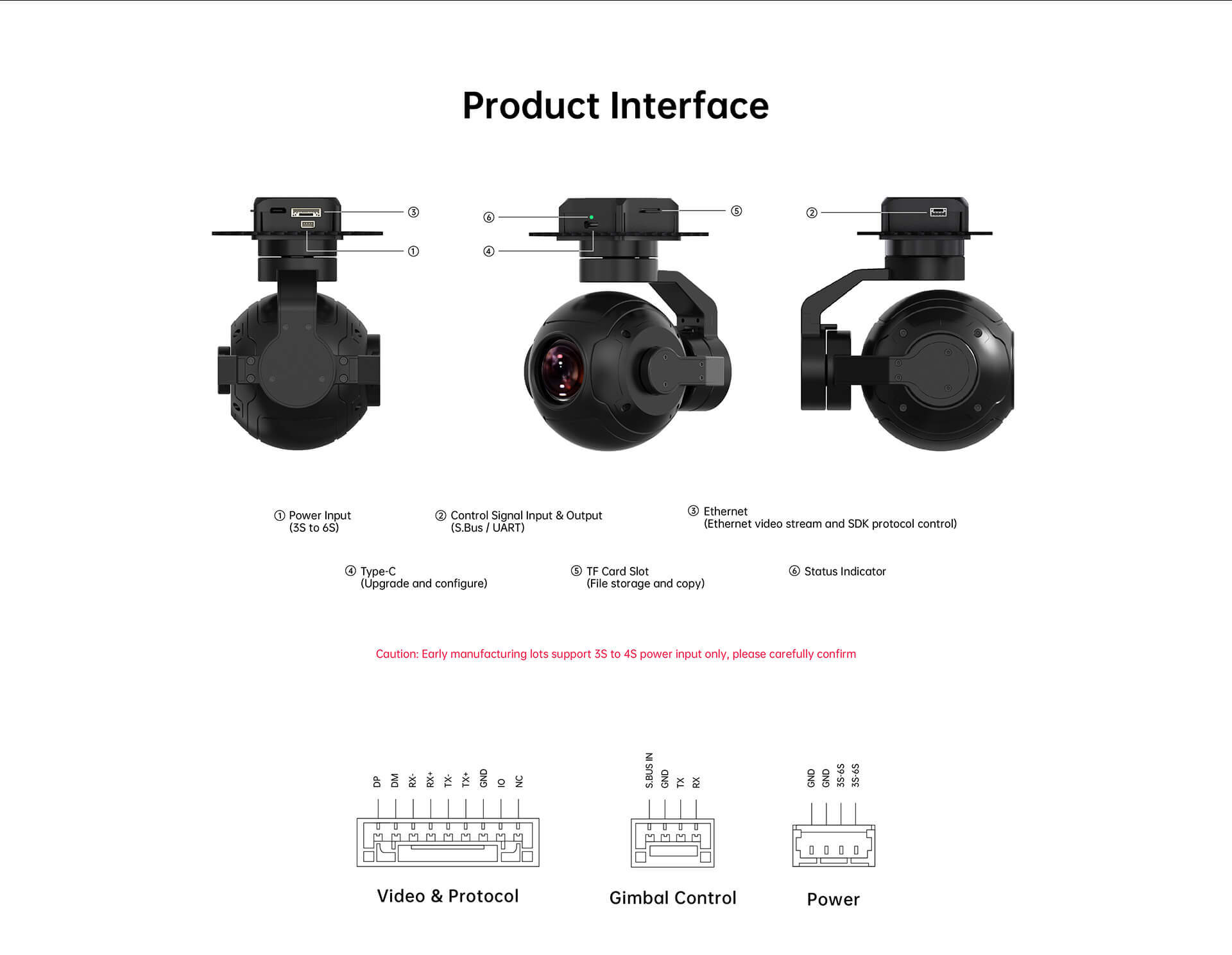

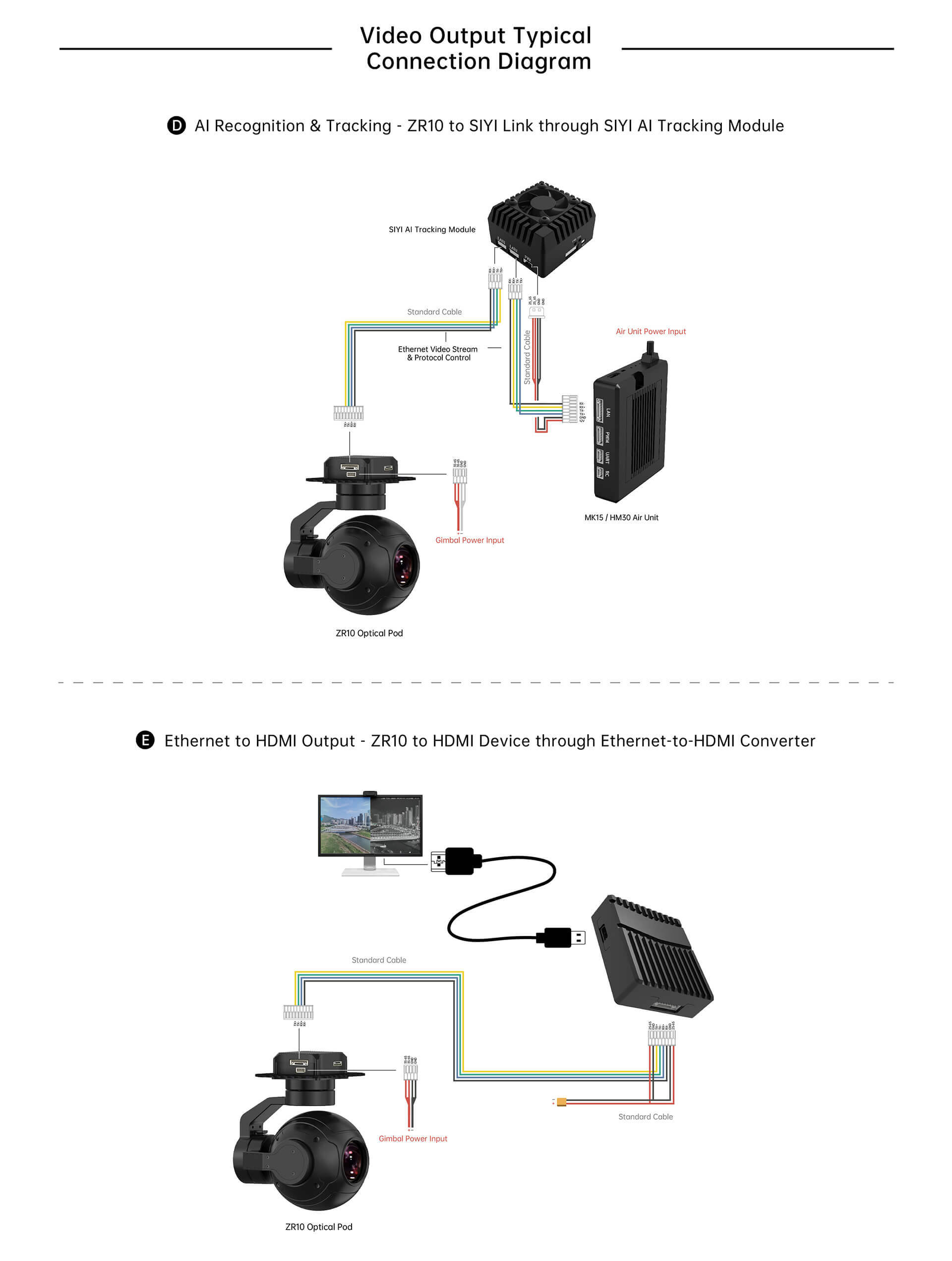

Video Output Port: | Ethernet |

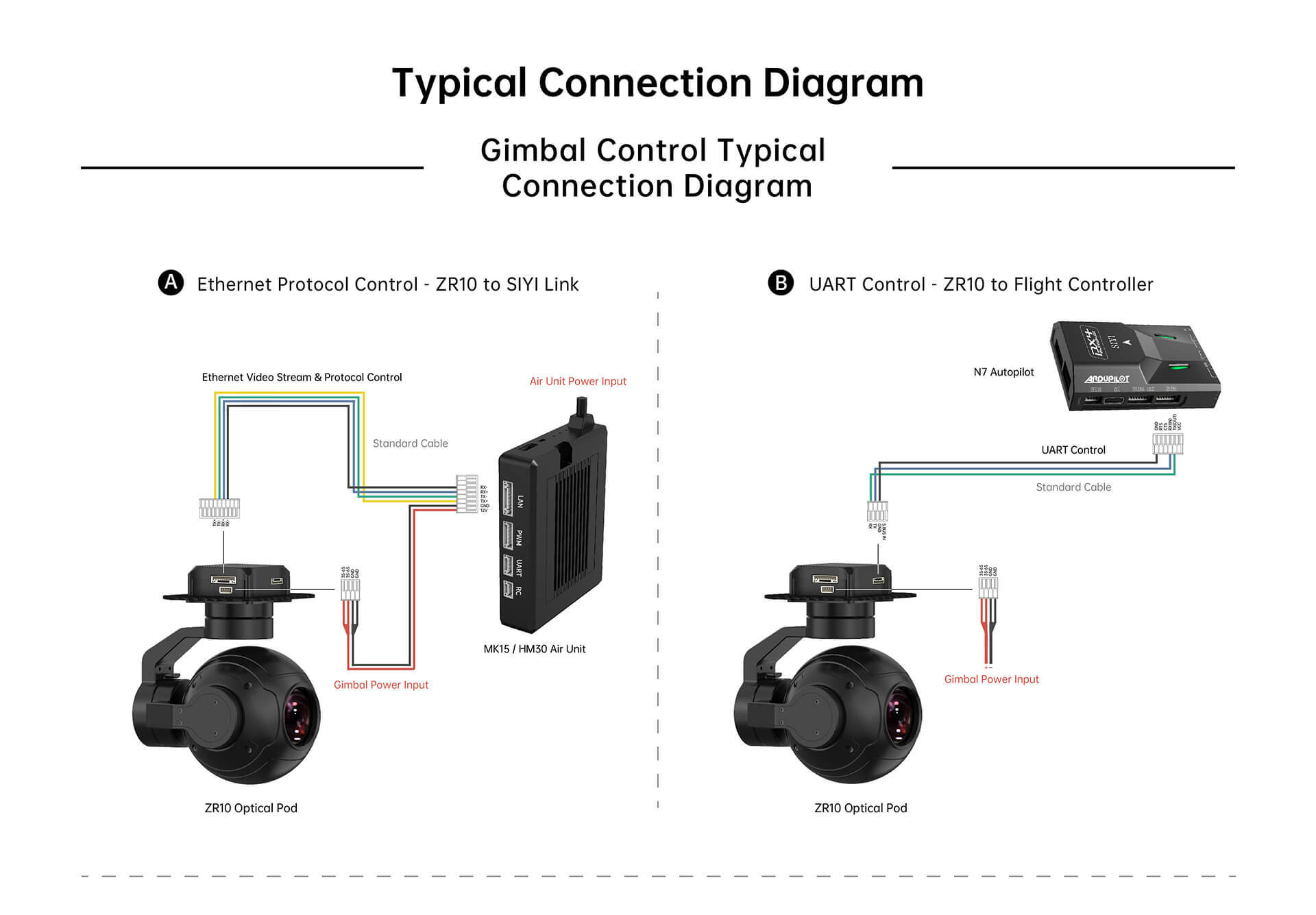

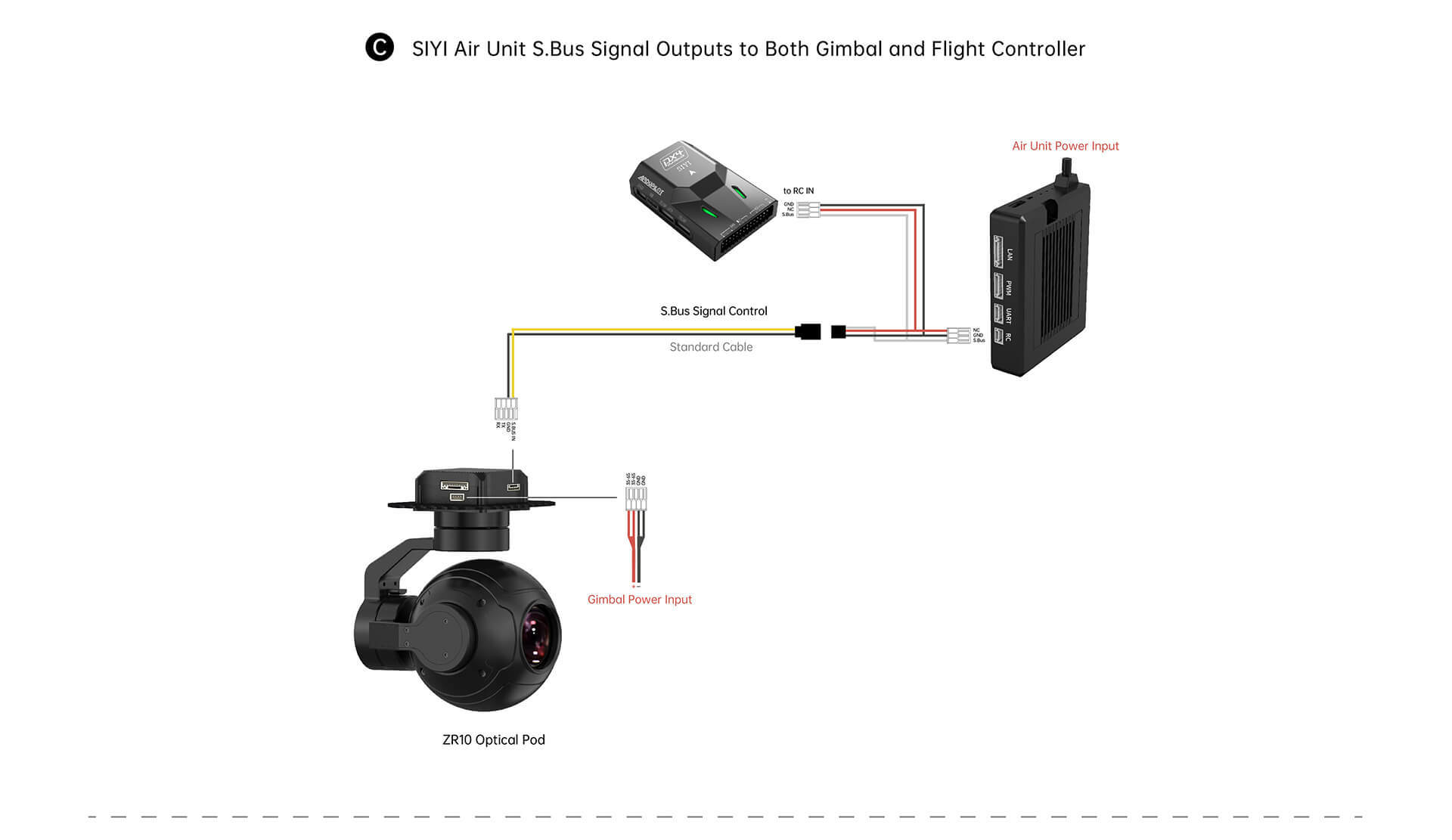

Control Signal Input Port: | S.Bus UART Ethernet UDP / TCP |

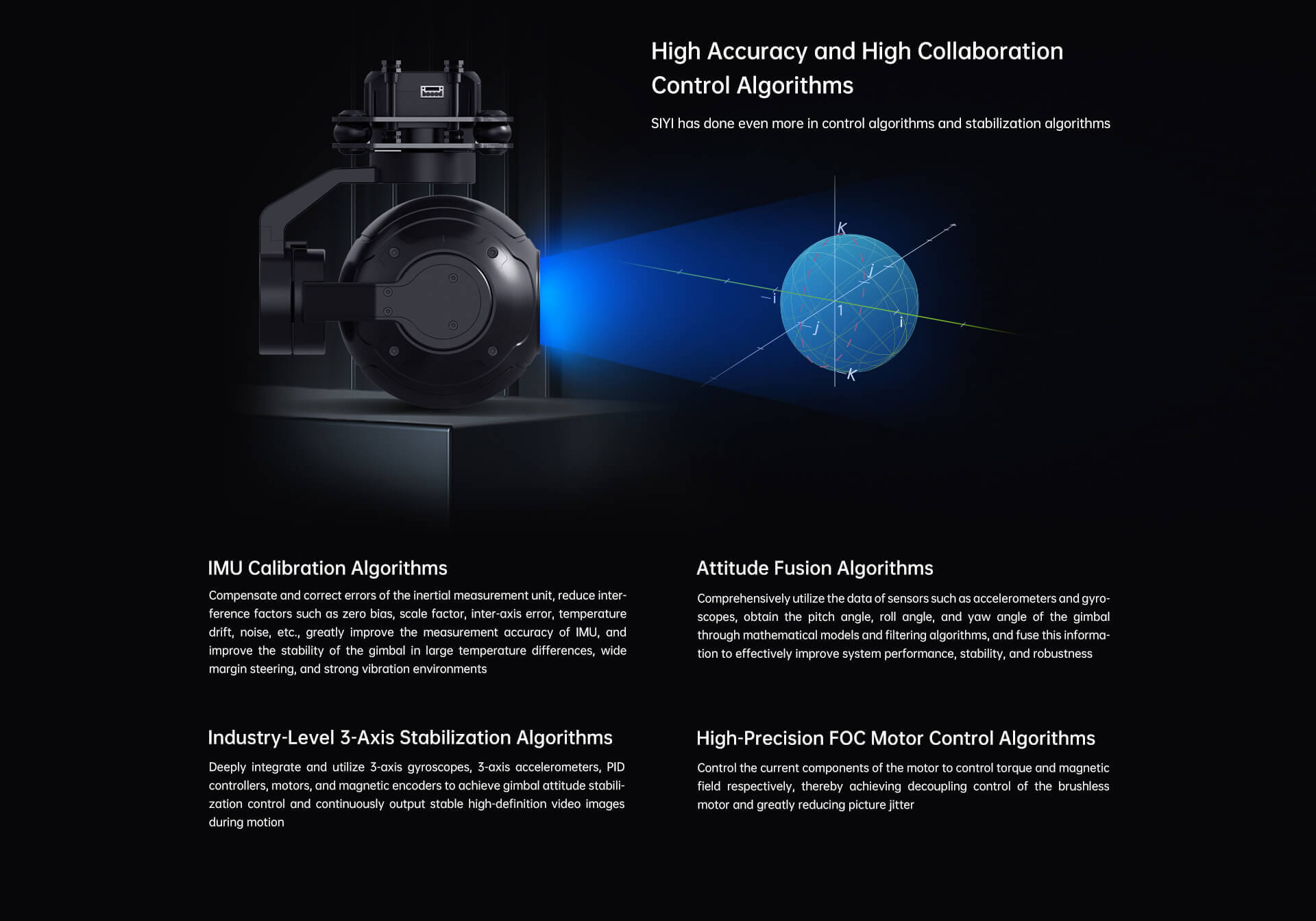

High-Accuracy 3-Axis Stabilization: | Yaw, Pitch, Roll |
Working Voltage: | 11 ~ 25.2 V (3S to 6S) *Early manufacturing lots before June 2023 were 11 ~ 16.5 V, please carefully confirm |
Power Consumption: | Average: 4 W Summit: 12 W |
Working Temperature: | -10 ~ 50℃ |
Dimension: | 121*101*78 mm |
Weight: | 381 g |
Angular Vibration Range: | ± 0.01° |
Controllable Pitch Angle: | -135° ~ +45° |
Controllable Yaw Angle: | -160° ~ +160° |
Roll Angle: | -30° ~ +30° |
Company Info. |
Shenzhen Baohong intelligent manufacturing Co., LTD |
Verified Supplier |
View Contact Details |
Product List |
Product Description

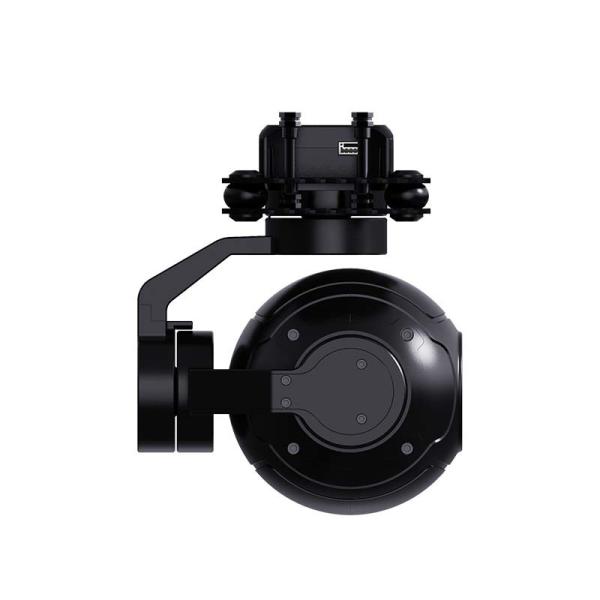

ZR10 is the first zoom optical pod independently developed and launched by SIYI Technology. ZR10 is a zoom optical pod up to 30X hybrid zoom /10X optical zoom, carrying a 4K1/2.7-inch Sony CMOS, 2K video recording ond photography, abundant gimbal control inter-face compatible with both SlYl links and third-party links. High accuracy and high collaboration control algorithms ensure stable imaging and zoming ability during flight. HDR and starlight night vision extend the applicotion scenarios to both day and night. In a word, ZR10 is a rare and good payload for multi-rotors, VTOLs, and robotics.
Technical Specification
Lens | 10X Optical Zoom (30X Hybrid Zoom) |
Focal Length | 5.2 ~ 47.4 mm (±5%) |
Image Sensor | 1/2.7 Inch COMS 4 MP Effective Resoultion |
Aperture | F1.8 ~ 2.5 (±5%) |
FOV | Without Zoom: Diagonal: 79.5°, Horizontal: 71.5° 10X Optical Zoom: Diagonal: 7.7°, Horizontal: 6.7° |
Video Recording Resolution | 2K (2560 x 1440) @ 30 fps 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
Video Storage Bitrate | 12 Mbps (H.265 Codec) |
File Storage Format | FAT32 ExFAT |
Image Format | JPG |
Video Format | MP4 |
Supported MicroSD Cards | MicroSD Class10, Max 32GB |
Still Photography Mode | Single |
Metering Mode | Evaluative metering |
White Balance | Automatic |
![]() |
