| Categories | CNC Lathe Machine |
|---|---|
| Type: | VERTICAL |
| Max. Length of Workpiece (mm): | 1000 |
| Machining Capacity: | Heavy Duty |
| Max. Weight of Workpiece(kg): | 5000 |
| Width of bed (mm): | 1010 mm |
| Spindle Motor Power(kW): | 30 |
| No. of Spindles: | Single |
| Number of Axes: | 2 |
| Travel (X Axis)(mm): | 820 mm |
| Travel (Z Axis)(mm): | 650 mm |
| Positioning Accuracy (mm): | ±0.02 |
| Repeatability (X/Y/Z) (mm): | ±0.01 |
| Place of Origin: | China |
| Dimension(L*W*H): | 4780x2570x4400 mm |
| Brand Name: | TIMEWAY |
| Model Number: | VLK1250E |
| Voltage: | 380V/400V/440V |
| CNC Control System: | SIEMENS |
| Tool Post Stations: | 4 |
| Weight (KG): | 11000 |
| Warranty: | 1 Year |
| Key Selling Points: | Flexible Manufacturing |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year |
| CNC or Not: | CNC |
| Max. cutting diameter: | 1250mm |
| Max. height of workpiece: | 1000mm |
| Max. weight of workpiece: | 5000kg |
| Worktable diameter: | 1010mm |
| Spindle speed: | 1.25-200rpm |
| Power capacity: | 30Kva |
| CNC system: | SIEMENS 808D |
| Max. Swing Diameter (mm): | 1250 |
| Warranty period: | 1year |
| Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops |
| Showroom Location: | United States, Italy, Germany, Mexico, Russia, Romania, South Africa, Australia |
| Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Gearbox |
| Max. Turned Length (mm): | 1000 |
| Max. Spindle Speed (r.p.m): | 200 r.p.m |
| Spindle Bore(mm): | 251 |
| Packaging Details: | Pallet |
| Port: | China Port |
| Supply Ability: | 300 Set/Sets per Year |
| Price: | $110,000.00/sets 1-2 sets |
| MOQ: | 1 set |
| Company Info. |
| Zhengzhou Timeway Machine Tool Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Single Column CNC Vertical Lathe
VLK800E VLK1250E VLK1600E VLK2000E
Machine Summary
Structure and Feature
Column
 | Column *The column adopts the optimization design of box-type structure and
reasonable layout stiffener, so as to realize the good thermal
stability, high strength and high rigidity. Column guideway width(mm) VLK800E 1070 VLK1250E 1190 VLK1600E 1460 VLK2000E 1970 |

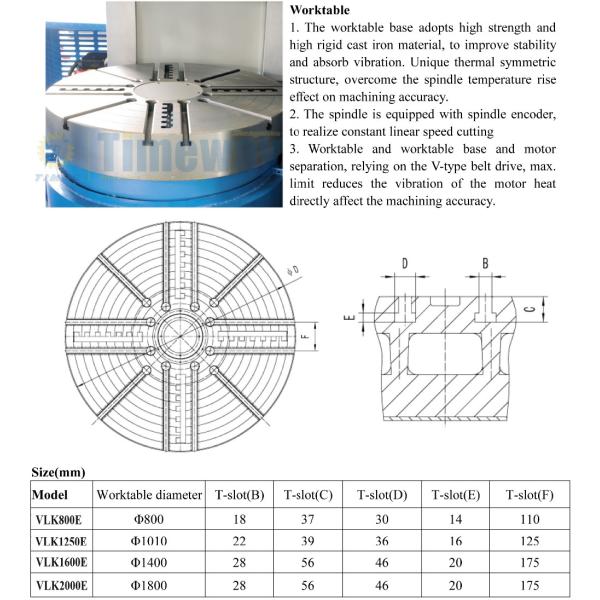

Worktable
Spindle Unit and Beam
Feed Unit
Tool-post horizontal feed(X-axis) and ram vertical feed(Z-axis) are
driven by AC servo motor through the gear reducer driving ball
screw, the reducer and screw through the flexible coupling
connection, high transmission efficiency, small transmission error,
high transmission precision.
Main Drive System
Spindle Speed Range(rpm)
| *Main transmission adopts gear drive, gears adopt high strength
material and quenching and grinding process, so it can realize high
speed cutting force, high transmission accuracy and rate, and
reduce the vibration and noise of the transmission. *Main transmission is controlled by horizontal spindle servo motor, can realize four shifts stepless speed, it is suitable for processing all material workpiece, to realize spindle wide speed changing and large torque heavy cutting, meet low-speed and heavy cutting for big diameter workpiece, and high-speed cutting for smaller diameter workpiece. *Large gear adopt high grade alloy steel, through quenching treatment and being grinded by high precision gear grinding machine, to reduce noise of spindle running. |
Four Station Electrical Tool-Post
1. High Positioning accuracy, large clamping force, large loading
capacity, stable and reliable.
2. The unique dovetail cutter holder, more accurate positioning,
greater clamping force.
Electrical Cabinet
1. Electrical cabinet placed directly within the column, so the
structure is more compact, save space. Beautiful appearance, wire
marking clear and complete, wiring and tidy; The connection of the
electrical cabinet to bed adopt the special cable connection.
2. Electrical cabinet is equipped with air condition, safety and
standard, to ensure controller constant temperature, the stability
of the controller.
Others
Technical Parameter
Specification | Unit | VLK800E | VLK1250E | VLK1600E | VLK2000E | |
Capacity | Max. turning diameter | mm | 950 | 1250 | 1600 | 2000 |
Max. cutting diameter | mm | 800 | 1250 | 1600 | 2000 | |
Max. height of workpiece | mm | 800 | 1000 | 1000 | 1250 | |
Max. weight of workpiece | kg | 2000 | 5000 | 8000 | 12000 | |
Worktable | Main motor power | kw | 22 | 22 | 30 | 37 |
Worktable diameter | mm | 800 | 1010 | 1400 | 1800 | |
Max. torque of worktable | KN.m | 10 | 17.5 | 25 | 32 | |
Worktable speed range | rpm | 2-320 | 1.25-200 | 1-160 | 4-125 | |
Tool | Number of tool station | pcs. | 4 | 4 | 4 | 4 |
Tool shank section of external turning tool | mm | 32*40 | 32*40 | 32*40 | 32*40 | |
Dirve type | Electric | Electric | Electric | Electric | ||
X/Z-axis | X-axis ball screw size (dia.*screw pitch) | mm | 50*10 | 50*10 | 50*10 | 50*10 |
Z-axis ball screw size (dia.*screw pitch) | mm | 50*10 | 50*10 | 50*10 | 50*10 | |
Max. travel(X/Z) | mm | -20-550/650 | -20-800/650 | -20-1030/800 | -20-1150/800 | |
Feed range(X/Z) | mm | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 | |
Rapid feed speed | mm/min | 2000 | 2000 | 2000 | 2000 | |
Others | CNC system | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | |
Servo motor torque(X/Z) | N.m | 10 | 10 | 10 | 10 | |
Power capacity | Kva | 30 | 37 | 45 | 52 | |
Machine net weight | kg | 8500 | 11000 | 14500 | 18500 | |
Machine dimension (L*W*H) | mm | 4300*2380*4290 | 4780*2570*4400 | 5630*3010*4660 | 5800*3685*4940 | |
Standard Configuration
Optional Configuration
Spindle Power/Torque
Machine Dimension
Model | Length(L) | Width(B) | Height(H) |
VLK800E | 4300 | 2380 | 4290 |
VLK1250E | 4780 | 2570 | 4400 |
VLK1600E | 5630 | 3010 | 4660 |
VLK2000E | 5800 | 3685 | 4940 |
|
