1/8W 1/4W 1/2W 1W 2W 3W 5W 1k resistor 1% metal film resistor

Categories Metal Film Resistor
Brand Name: Bonens
Model Number: Metal film resistor
Place of Origin: Sichuan, China
Resistance: 0-10M
Resistance Tolerance: 1% or 5%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1/8W 1/4W 1/2W 1W 2W 3W 5W 1k resistor 1% metal film resistor

1% 1/8W 1/4W 1/2W 1W 2W Metal film resistor

1/8W 1/4W 1/2W 1W 2W 3W 5W 1k  resistor 1% metal film resistor

1/8W 1/4W 1/2W 1W 2W 3W 5W 1k  resistor 1% metal film resistor

1/8W 1/4W 1/2W 1W 2W 3W 5W 1k  resistor 1% metal film resistor

1/8W 1/4W 1/2W 1W 2W 3W 5W 1k  resistor 1% metal film resistor

1/8W 1/4W 1/2W 1W 2W 3W 5W 1k  resistor 1% metal film resistor

1/8W 1/4W 1/2W 1W 2W 3W 5W 1k  resistor 1% metal film resistor

Product Details

1/8W 1/4W 1/2W 1W 2W 3W 5W 1k  resistor 1% metal film resistor

1)Insulation resistance: 1000M ohm or more

2)Voltage endurance: The resistance variation shall be within±(2% + 0.05ohm) and there shall be no mechanical breakage

3) Intermittent overload:Resistance variation shall be Within ±(2.00% + 0.05ohm

4)Terminal strength:Resistance variation shall be within±(0.5% + 0.05ohm) also there Shall be on mechanical breakage

5)Heat resistively Against soldering:Resistance variation shall be within ± (1.0%+0.05ohm) also there Shall be on mechanical breakage

6) Solder ability:More than 95% of the surface of the lead shall be covered by new solder after the leads are dipped in the

Solder

7) Humidity load test:Resistance variation be Within ± (3.0% + 0.05ohm) Also there shall be mo mechanical breakage

8) Load life test :The variation of the resistance Shall be within ± (3%+0.05ohm) Also there shall be no mechanical Breakage

Rating:

CF(CARBON FILM FIXED RESISTORS)

STYLE

MAX

WORKING

MAX

OVERLOAD

RESISTANCE

VALUE RANGE

CF1/6W / CF1/8W 200V 400V 0.1Ω~22MΩ
CF1/4W / CF1/4WS 300V 600V 0.1Ω~22MΩ
CF1/2W / CF1/2WS 350V 700V 0.1Ω~22MΩ
CF1W / CF1WS 500V 1000V 0.1Ω~22MΩ
CF2W / CF2WS 500V 1000V 0.1Ω~22MΩ
CF3W / CF3WS 600V 1000V 0.1Ω~22MΩ
CF5W / CF5WS 600V 1000V 0.1Ω~22MΩ

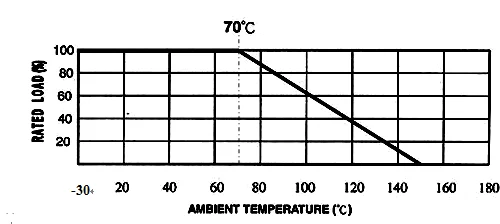

Power rating:

Marking:

Color refer

Color 1 st Band 2 ndBand 3 rd Band 4 th Band
Black 0 0 100
Brown 1 1 101
Red 2 2 102 ±2.0%
Orange 3 3 103
Yellow 4 4 104
Green 5 5 105
Blue 6 6 106
Violet 7 7 107
Grey 8 8 108
White 9 9 109
Gold 10-1 ±5.0%
Silver 10-2 ±10.0%

Construction And Dimession:

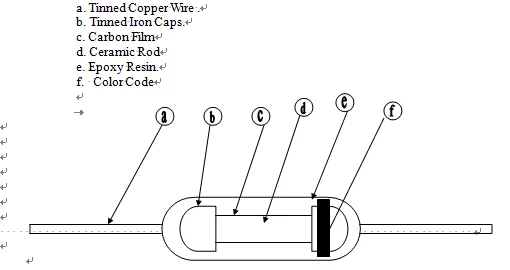

Construction:

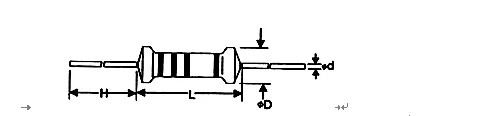

Dimession:

TABLE:

WATTS L D H d ± 0.02mm

PULLING

(Kg)

1/6W 1/8W 1/16W 3.3±0.3 1.8±0.3 28±2.0 0.45 2.5Kg - 30S
1/4WS
1/4W 6.0±0.5 2.3±0.3 27.0±2.0 0.48 2.5Kg - 30S
1/2WS
1/2W 9.0±0.5 3.2±0.3 26.0±2.0 0.58 2.5Kg - 30S
1WS
1W 11.0±1.0 4.5±0.5 35.0±2.0 0.68 3Kg - 30S
2WS
2W 15.0±1.0 5.0±0.5 33.0±2.0 0.78 5Kg - 30S
3WS
3W 17.0±1.0 6.0±0.5 32.0±2.0 0.78 5Kg - 30S
5WS
5W 24.0±1.0 8.0±1.0 28.0±2.0 0.78 5Kg - 30S
