Hydraulic Core Sampling Drilling Rig 600m-1000m Depth with NQ/BQ/HQ/PQ

Categories Core Drilling Rig
Brand Name: RanCheng
Model Number: RCJ1000C
Certification: CE, ISO 9001:2000
Place of Origin: China
MOQ: 1
Price: USD48000-USD52000
Payment Terms: T/T, Western Union
Supply Ability: 100sets per Month
Delivery Time: 10-15 working days
Packaging Details: It can be shipped by one 20" container
Name: Core Drilling Rig
Model: RCJ1000C
Diesel engine model: Yuchai engine 6 cylinders 118KW
Max torque: 2600N.m
Transport: 5600*2000*2400mm
Weight: 7300kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hydraulic Core Sampling Drilling Rig 600m-1000m Depth with NQ/BQ/HQ/PQ

Hydraulic Core Sampling Drilling Rig 600m-1000m Depth with NQ/BQ/HQ/PQ
Product Overview
AttributeValue
NameCore Drilling Rig
ModelRCJ1000C
Diesel engine modelYuchai engine 6 cylinders 118KW
Max torque2600N.m
Transport dimensions5600×2000×2400mm
Weight7300kg
Product Description

This series of fully hydraulic core drilling rigs represents our company's latest innovation, developed by integrating advanced domestic and international drilling technologies. The rig features:

  • Full hydraulic drive system with axial piston pump and bevel piston motor for power head rotation
  • Two-stage mechanical gears with stepless speed regulation
  • Cylinder chain dual-speed feed mechanism for smooth, reliable movement
  • Lateral translation mechanism for enhanced maneuverability
  • Overall lifting and sliding cylinder mast with 0-90° drilling capability
  • Load-sensitive hydraulic control system for high efficiency and large torque
  • Hydraulic wooden horse grippers and leveling legs for rapid positioning
  • Wireless remote control crawler system for safe operation on various terrains
Technical Specifications
Working Parameters
Working stratumLoose soil layer and bed rock (hardness: F6~20)
Drilling capacity (BTW)1400m
Drilling capacity (NTW)1200m
Drilling capacity (HTW)1000m
Drilling capacity (PQ)800m
Hydraulic System
Rated pressure32+16 Mpa
Cooling systemSecondary air cooling plus primary water cooling
Power System
Diesel engine modelYuchai engine 6 cylinders
Rated power118KW
Rated speed2300rpm
Rotary Head
Max torque2600N.m
Max rotary speed1400rpm
Feeding stroke3.5m
Through-hole diameter95mm
Lifting force360KN
Feeding force180KN
Wireline Hydraulic Winch
Rope capacity1200m
Lifting force24KN
Lifting speed110m/min
Rope diameter8mm
Mast Specifications
Full height7.9m
Drilling angle0-90°
Slip Stroke1200mm
Clamp System
Through-hole diameter130mm
Mud Pump
ModelBW160/10
TypeHorizontal three cylinder reciprocating single acting piston pump
Cylinder diameter70mm
Stroke70mm
Pump speed (times/min)200 | 132 | 83 | 55
Flow (L/min)160 | 107 | 67 | 44
Pressure (Mpa)2.5 | 4 | 6.5 | 10
Outlet pipe diameter32mm
Inlet pipe diameter51mm
Crawler Chassis
Walking speed0~2km/h
Climbing angle25°-30°
Applications

This drilling rig is primarily designed for:

  • Solid mineral deposit exploration
  • Engineering geology surveys
  • Shallow oil and natural gas drilling
  • Groundwater exploration
  • Tunnel ventilation and drainage hole drilling
  • Dam grouting operations

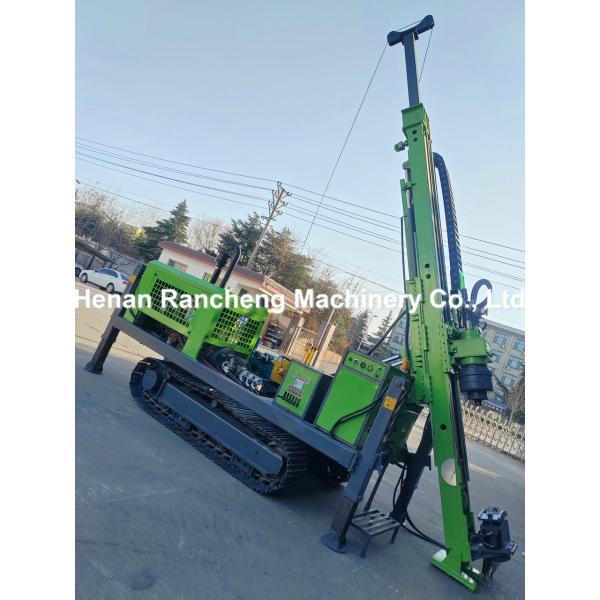

Product Images
Cheap Hydraulic Core Sampling Drilling Rig 600m-1000m Depth with NQ/BQ/HQ/PQ for sale
