Enclosed Power Crane Conductor System For EOT Crane 20 Ton

Enclosed Power Conductor System For EOT Crane 20ton

Enclosed power conductor rail system is a power rail,protected from contact (IP23),The enclosed busbar with the function of preventing accidental impact hazards.

refers to an electrical conductor that is housed within a protective enclosure to ensure safety, prevent damage, and reduce interference.

Protection: Shields conductors from environmental factors (moisture, dust, chemicals, mechanical damage).

Safety: Reduces risk of electric shock, short circuits, and fire hazards.

Insulation: Often includes additional insulation layers for higher voltage applications.

Types: Can be found in rigid conduits (metal/PVC), flexible tubing or enclosed bus-bars.

Applications: Used in power distribution, industrial wiring, underground cables, and electrical panels.

Electrical Conduits (PVC pipes containing copper conductor)

Bus Ducts (enclosed busbar systems for high-current distribution)

Underground/Overhead Power Cables (insulated and sheathed conductors)

1,Housing

Color grey, plastic housing for 3-4 conductors. Standard section 4 m each bar.Other sections are available.

The ground conductor is identified by yellow color.Phase reversing prevented by design of the collector and housing.

2, Hangers

Standard brackets for powerail attachment to crane girders are available.Powerail with sliding and fix point hangers.

Standard distance between suspension points for indoor and outdoor.Installations space: 1200mm.

Material: galvanized steel

3,Current Collector

2.5mm²/corex4(35A-50A)

4.0mm²/corex4+ 2.5mm²/core×1(65A-120A)

0.8m long, longer cables on request.

4, Joint Cap

Fixed with bolted joints and self locking for installation easily.

Material: plastic

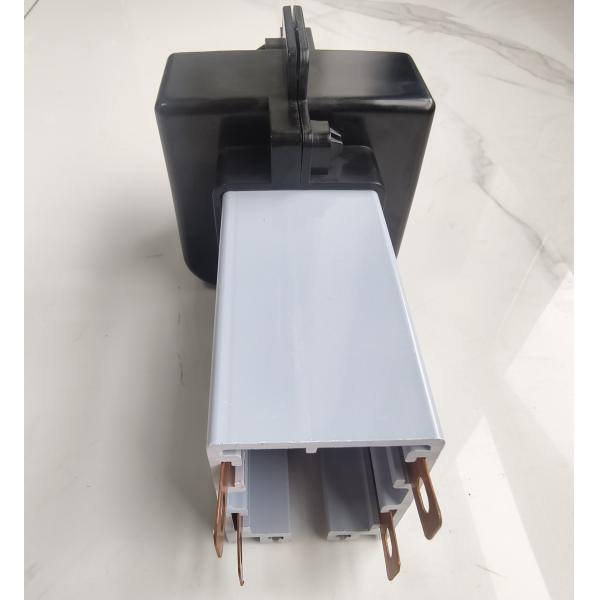

5, End Feed

left and right version.
