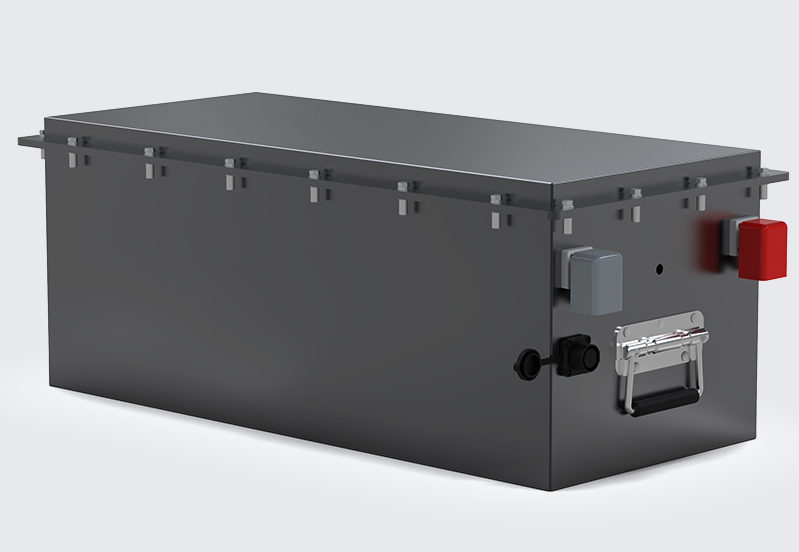

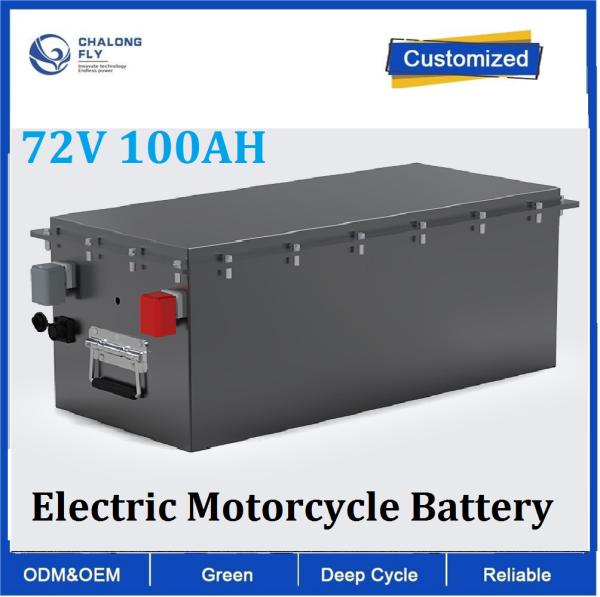

CLF OEM LiFePO4 Electric Motorcycle Lithium Battery Pack 72V 100ah Fast Charge High Discharge Current

Categories	Electric Motorcycle Battery
Brand Name:	CLF or OEM
Model Number:	CLF-R5228
Certification:	UN38.3, MSDS, CB, CE ROSH
Place of Origin:	CHINA
MOQ:	1
Payment Terms:	L/C, T/T
Supply Ability:	10000Piece/Pieces per Week
Packaging Details:	standard export package
Rated voltage:	76.8V
Battery working voltage:	60~86.4V
Rated capacity:	120ah
Total Energy:	8.83kwh
SOC range:	20%-100%
OEM/ODM:	Accepted
Max.Charge current:	100A
Max Discharge current:	150A
Battery cycle life:	more than 3500times, capacity>80%
Communucation:	RS485, CAN, RS232, GPS, Bluetooth
Battery weight:	96KG
Warranty:	3years
Application:	low speed vehicle, EVs, truck, tractor

Contact Now

Add to Cart

Company Info.

Hunan Chalong Fly Technology Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

CLF OEM LiFePO4 Electric Motorcycle Lithium Battery Pack 72V 100ah Fast Charge High Discharge Current

Technical Parameter

72V 100Ah lithium NMC battery pack
Mechanical	Cell & Method	LiFePO4, 24S1P
	Dimension(LWH)	As request
	Weight	95KG
Electrical Characteristics	Rated Capacity	100Ah
	Min Capacity	100Ah
	High Rate Discharge Capacity	＞ 90% Rated Capacity
	Discharge Capacity @ -20℃(-4℉)	＞ 70% Rated Capacity
	Norminal Voltage	76.8V
	Energy	7.68Wh
	Internal Impedance(@ 1000Hz.)	≤20 mΩ
	Cycle Life	＞3500 Cycles, 80% DOD
	Months Self Discharge	≤ 5% @ 25℃(77℉)
	Efficiency of Charge	100% @ 1/3C
	Efficiency of Disharge	95% @1C
Standard Charge	Max Charge Voltage	86.4V
	Charge Current	0.5C, 50A
	Max Charge Current	100A
Standard Discharge	Standard discharge Current	1C, 100A
	Max Discharge Current	200A for 3 seconds
	Discharge Cut-off Voltage	60V
Environmental	Charge Temperature	0 ℃ to 45℃(32℉ to 113℉) @ 65±20%Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity
	Storage Temperature	≤ 1 Month, -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity
	Storage Temperature	≤ 6 Month, -20℃ to 30℃(-4℉ to 80℉) @ 65±20%Relative Humidity
